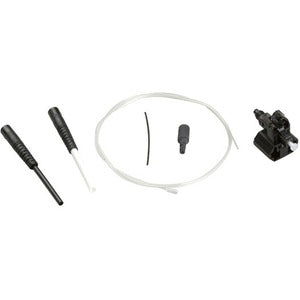

Black Box Pre-Polished Fiber Optic Connector, 50-Micron Multimode, LC, Black, 6-Pack
Pre-Polished Fiber Optic Connector, 50-Micron Multimode, LC, Black, 6-Pack
Quick Facts- Pre-polished ferrules for fast connections in the field.
- Easy assembly with no need for epoxy.
- Fiber can be reseated.
- Factory polishing eliminates loss concerns.
- Meets TIA/EIA 568A performance requirements and TIA/EIA 604 (focis) connector interface specifications.
- Guaranteed for life!
This Pre-Polished Fiber Optic Connector can save technicans a ton of time in the field. These connectors are so easy to install, you can do it in a minute! There's no hand polishing. No epoxy!
Proven mechanical splice technology ensures precise fiber alignment. A factory pre-cleaved, factory-polished ferrule couples to the fiber being terminated with precise mechanical alignment. A proprietary index-matching gel ensures a low loss termination to 50-micron multimode optical fibers. There are no expensive tools, no messy epoxy needed.
A factory-installed wedge clip holds the clamping device open while the fiber is inserted. This clip also enables the use of a Visible Fault Identifier (VFI) to provide a "pass/fail" signal once physical contact is achieved. The connector is compatible with 250-µm and 900-µm optical fibers.
This connector is also available in ST and SC versions and for 62.5-micron multimode and single-mode fiber, as well as for OM3 laser-optimized multimode fiber. Connectors for each fiber type are color coded to industry standard requirements to help with identification during and after installation.
Call for Availability
Shipping calculated at checkout
Pre-Polished Fiber Optic Connector, 50-Micron Multimode, LC, Black, 6-Pack
Quick Facts- Pre-polished ferrules for fast connections in the field.
- Easy assembly with no need for epoxy.
- Fiber can be reseated.
- Factory polishing eliminates loss concerns.
- Meets TIA/EIA 568A performance requirements and TIA/EIA 604 (focis) connector interface specifications.
- Guaranteed for life!
This Pre-Polished Fiber Optic Connector can save technicans a ton of time in the field. These connectors are so easy to install, you can do it in a minute! There's no hand polishing. No epoxy!
Proven mechanical splice technology ensures precise fiber alignment. A factory pre-cleaved, factory-polished ferrule couples to the fiber being terminated with precise mechanical alignment. A proprietary index-matching gel ensures a low loss termination to 50-micron multimode optical fibers. There are no expensive tools, no messy epoxy needed.
A factory-installed wedge clip holds the clamping device open while the fiber is inserted. This clip also enables the use of a Visible Fault Identifier (VFI) to provide a "pass/fail" signal once physical contact is achieved. The connector is compatible with 250-µm and 900-µm optical fibers.
This connector is also available in ST and SC versions and for 62.5-micron multimode and single-mode fiber, as well as for OM3 laser-optimized multimode fiber. Connectors for each fiber type are color coded to industry standard requirements to help with identification during and after installation.
