Black Box Gb ETH PoE+ MED CONV 10/100/1000-Mbps COP to 1000-Mbps FBR SFP
SKU: LPS535A-SFP

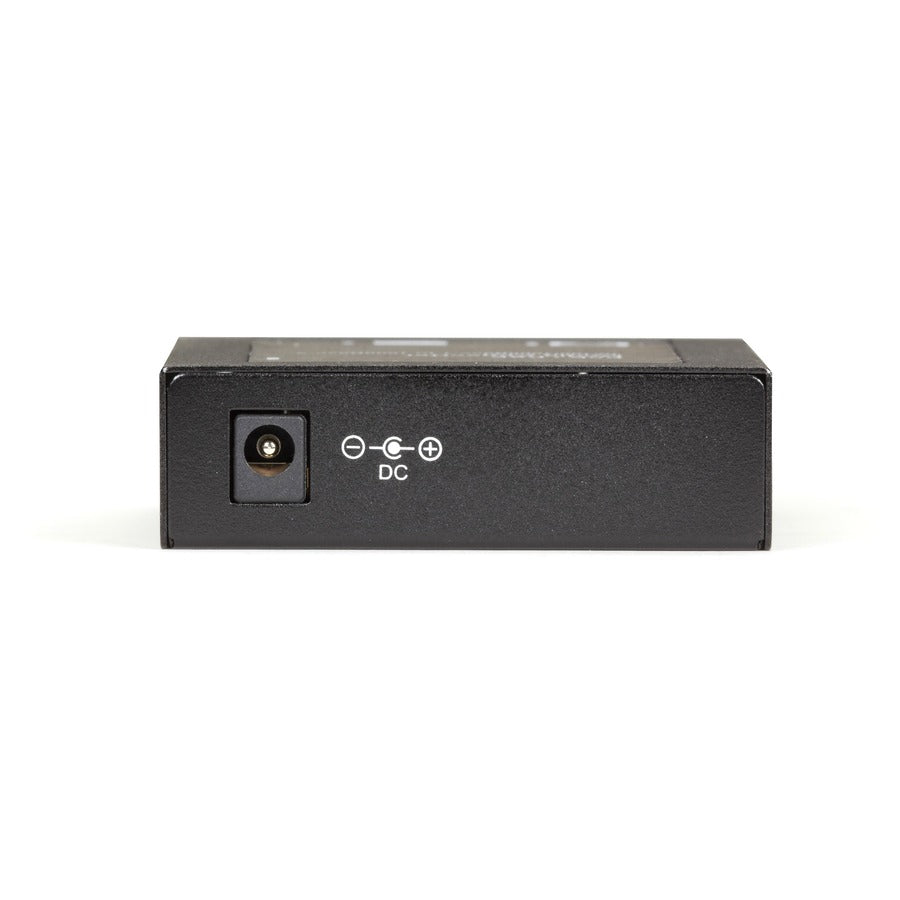

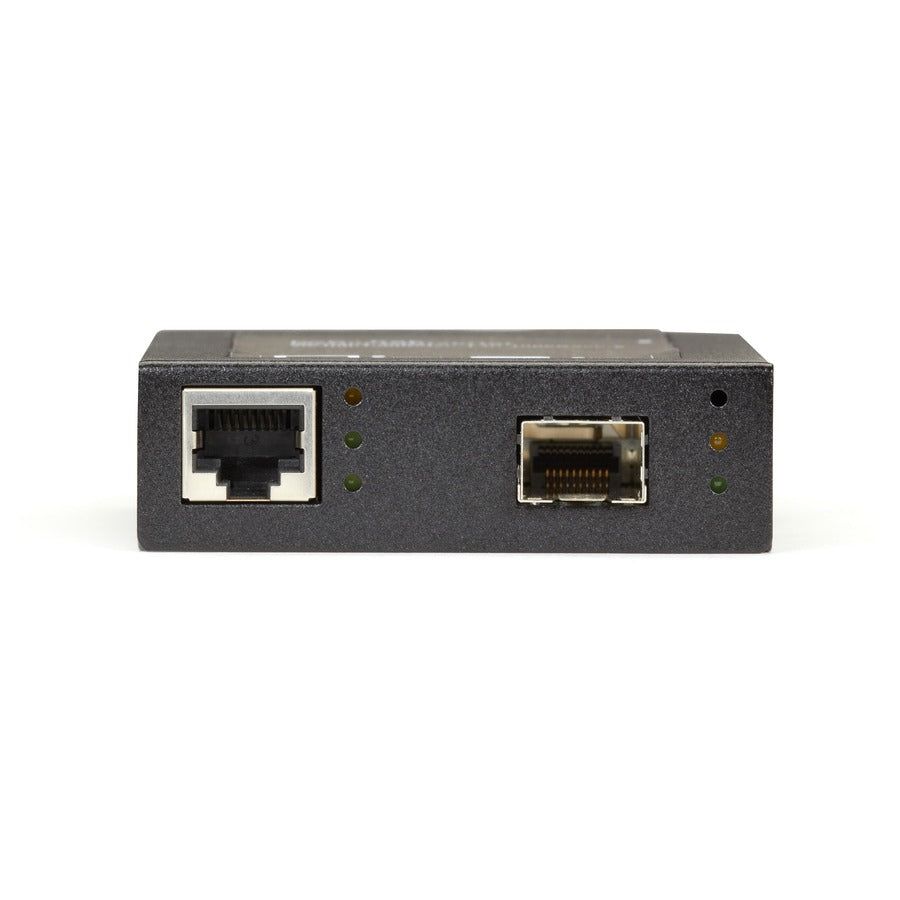

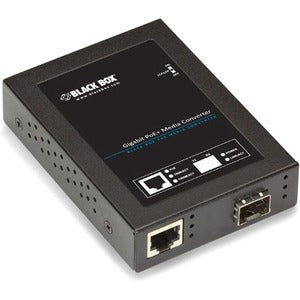

Transparently connect fiber to copper to power PoE+ devices at the edge of your network. Use the Converter to connect PoE+ devices such as PTZ (pan, tilt, zoom) cameras, 802.11n access points, VoIP phones, and more that require up to 30 watts of power. The Converter acts as a Power Sourcing Equipment (PSE) to push data and power over copper cable to the remote, Powered Devices (PDs). The Media Converter features one autosensing 10/100/1000-BASE-T UTP port plus an SFP port that can be used for multimode and single-mode 1000BASE-X fiber connections. It is powered via an external AC adapter, which delivers 47~57 input power voltage. The Converter features advanced functions such as auto-negotiation, Auto-MDIX, Link Lost Forwarding, and Link Fault Pass-Through for easy system management and troubleshooting. LEDs indicate Converter activity.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
- Smart, plug-and-play installation
- Copper port supports full-duplex, auto-MDI/MDI-X, and auto-negotiation
- Link Loss Forwarding provides instant notification of fiber segment link problems
- Compatible with 802.3af/at standard PoE devices
- Power sourcing equipment (PSE) on the copper side to provide up to 30 watts of power
- Provides one 10-/100-/1000-Mbps copper port and one 1000Mbps SFP port
86 in stock
Regular price
$314.15
Shipping calculated at checkout
Transparently connect fiber to copper to power PoE+ devices at the edge of your network. Use the Converter to connect PoE+ devices such as PTZ (pan, tilt, zoom) cameras, 802.11n access points, VoIP phones, and more that require up to 30 watts of power. The Converter acts as a Power Sourcing Equipment (PSE) to push data and power over copper cable to the remote, Powered Devices (PDs). The Media Converter features one autosensing 10/100/1000-BASE-T UTP port plus an SFP port that can be used for multimode and single-mode 1000BASE-X fiber connections. It is powered via an external AC adapter, which delivers 47~57 input power voltage. The Converter features advanced functions such as auto-negotiation, Auto-MDIX, Link Lost Forwarding, and Link Fault Pass-Through for easy system management and troubleshooting. LEDs indicate Converter activity.
This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.
- Smart, plug-and-play installation
- Copper port supports full-duplex, auto-MDI/MDI-X, and auto-negotiation
- Link Loss Forwarding provides instant notification of fiber segment link problems
- Compatible with 802.3af/at standard PoE devices
- Power sourcing equipment (PSE) on the copper side to provide up to 30 watts of power
- Provides one 10-/100-/1000-Mbps copper port and one 1000Mbps SFP port
Country of Origin:
Taiwan
DVI:
No
Environmentally Friendly:
Yes
Ethernet Technology:
Gigabit Ethernet
Expansion Slot Type:
SFP (mini-GBIC)
Fiber Mode Supported:
Multi-mode,Single-mode
Form Factor:
External
Limited Warranty:
1 Year
Management Port:
No
Manufacturer:
Black Box Corporation
Manufacturer Website Address:
http://www.blackbox.com
Media Type Supported:
Twisted Pair,Optical Fiber
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-T,1000Base-SX/LX
Number of PoE+ (RJ-45) Ports:
1
Number of SFP Slots:
1
Packaged Quantity:
1
Power Source:
Power Supply
Product Model:
LPS535A-SFP
Product Series:
LPS530
Product Type:
Transceiver/Media Converter
TAA Compliant:
Yes
Total Number of Expansion Slots:
1
Total Number of Ports:
1
USB:
No
