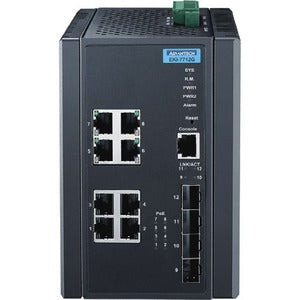

B+B SmartWorx EKI-7712G-4FMPI Ethernet Switch
SKU: EKI-7712G-4FMPI-AU
The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x IEEE 802.3af/at PoE Gigabit ports, 2 x IEEE 802.3bt PoE Gigabit ports, and 4 x SFP ports, EKI-7712G-4FMPI provides multiple usages for different scenarios. The EKI-7712G-4FMPI is embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. It is also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms to ensure network stability.
- 8 x Gigabit Ethernet ports + 4 x SFP ports
- Support 2 IEEE 802.3bt class 8 90W and 6 IEEE 802.3af/at PoE ports
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 53 ~ 57 VDC power inputs and 1 x relay output
Call for Availability
Regular price
$1,825
Shipping calculated at checkout
The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x IEEE 802.3af/at PoE Gigabit ports, 2 x IEEE 802.3bt PoE Gigabit ports, and 4 x SFP ports, EKI-7712G-4FMPI provides multiple usages for different scenarios. The EKI-7712G-4FMPI is embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. It is also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms to ensure network stability.
- 8 x Gigabit Ethernet ports + 4 x SFP ports
- Support 2 IEEE 802.3bt class 8 90W and 6 IEEE 802.3af/at PoE ports
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 53 ~ 57 VDC power inputs and 1 x relay output
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet
Expansion Slot Type:
SFP (mini-GBIC)
Form Factor:
Wall Mountable,DIN Rail Mountable
Input Voltage:
55 V DC
Layer Supported:
2
Limited Warranty:
5 Year
Manageable:
Yes
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Media Type Supported:
Twisted Pair,Optical Fiber
Modular:
Yes
Networking Standards:
IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.3at,IEEE 802.3af,IEEE 802.3bt
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-TX,1000Base-X
Number of SFP Slots:
4
PoE (RJ-45) Port:
Yes
PoE Budget:
370 W
Port/Expansion Slot Details:
8 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot
Power Consumption:
12 W
Power Source:
DC
Product Material:
Metal
Product Model:
EKI-7712G-4FMPI
Product Series:
EKI-7712G
Product Type:
Ethernet Switch
Shared SFP Slot:
No
Total Number of Expansion Slots:
4.0
Total Number of Network Ports:
8
