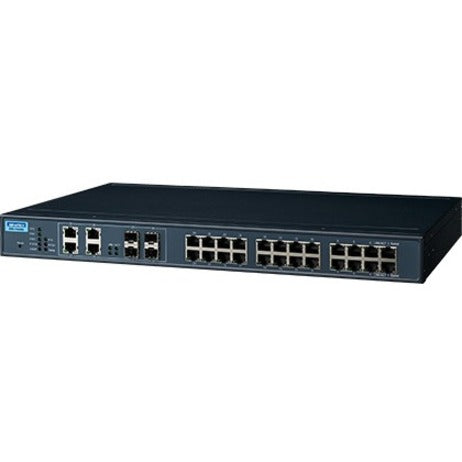

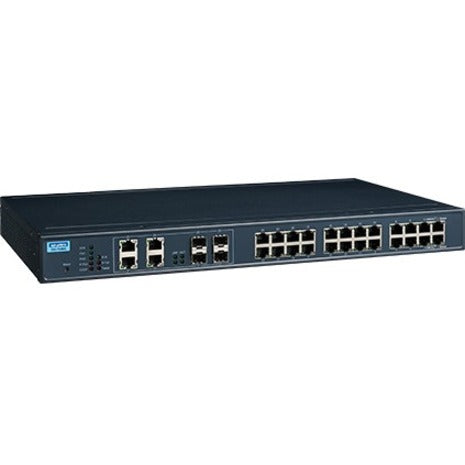

B+B SmartWorx 24G+4G Combo Port L2 Managed Switch
SKU: EKI-7428G-4CI-AU
The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device, moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 VDC input power design ensure vital network capabilities with minimum downtime. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs.
- 24 x IEEE 802.3 af/at PoE Gigabit ports + 4 x Gigabit Copper/SFP combo ports, provide up to 30Watts per port
- SFP socket for Easy and Flexible Fiber Expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM function enables fast deployment
- Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
- 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
- -40 ~ 70°C wide-range operating temperature
- Support Security Pack to against internal and external cyber threats
Call for Availability
Regular price
$1,411.86
Shipping calculated at checkout
The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device, moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 VDC input power design ensure vital network capabilities with minimum downtime. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs.
- 24 x IEEE 802.3 af/at PoE Gigabit ports + 4 x Gigabit Copper/SFP combo ports, provide up to 30Watts per port
- SFP socket for Easy and Flexible Fiber Expansion
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM function enables fast deployment
- Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
- 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
- -40 ~ 70°C wide-range operating temperature
- Support Security Pack to against internal and external cyber threats
Compatible Rack Unit:
1U
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet
Expansion Slot Type:
SFP (mini-GBIC)
Form Factor:
Rack-mountable
Input Voltage:
48 V DC
Layer Supported:
2
Limited Warranty:
5 Year
Manageable:
Yes
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Media Type Supported:
Twisted Pair,Optical Fiber
Modular:
Yes
Networking Standards:
IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.1D,IEEE 802.1w,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3ab
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-TX,1000Base-X
Number of SFP Slots:
4
Port/Expansion Slot Details:
24 x Gigabit Ethernet Network,4 x Gigabit Ethernet TP/SFP Combo
Power Consumption:
20 W
Power Source:
DC
Product Material:
Metal
Product Model:
EKI-7428G-4CI
Product Series:
EKI-7428G
Product Type:
Ethernet Switch
Shared SFP Slot:
Yes
Total Number of Expansion Slots:
4.0
Total Number of Network Ports:
24
