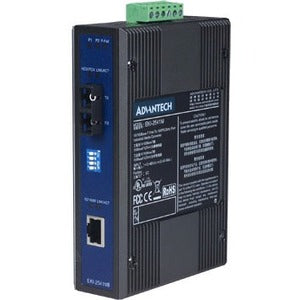

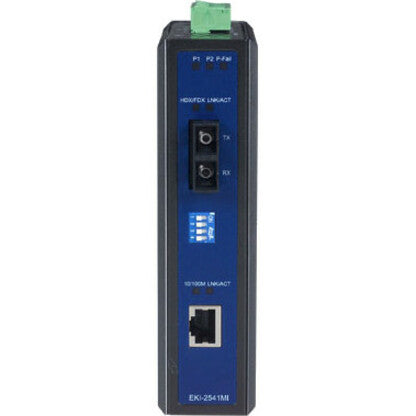

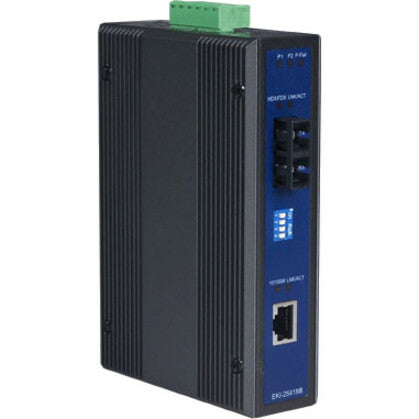

B+B SmartWorx 10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter
SKU: EKI-2541MI-AE
The EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, the EKI-2541M/2541S is an ideal solution for "fiber to building" applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection, so you don't need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 V DC . Besides, it also provides 3,000 V DC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
Link Fault Pass-Through (LFP)
The EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile the EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then the EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.
Link Fault Pass-Through (LFP)
The EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile the EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then the EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.
- Supports wide operating temperatures from -40 to 75°C (EKI-2541MI/SI)
- Provides flexible mounting: DIN-rail and Panel mount
- Supports MDI/MDI-X auto-crossover
- Supports redundant 12-48 VDC power input
- Supports Auto-negotiation
- Supports store and forward transmission
- Supports full/half duplex flow control
- Provides internal jumper for Link Fault Pass-through (LFP) setting
- Provides 1 x 100 Mbps Multi-mode/Single-mode SC type fiber port
- Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
Call for Availability
Regular price
$341.32
Shipping calculated at checkout
The EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, the EKI-2541M/2541S is an ideal solution for "fiber to building" applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection, so you don't need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 V DC . Besides, it also provides 3,000 V DC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
Link Fault Pass-Through (LFP)
The EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile the EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then the EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.
Link Fault Pass-Through (LFP)
The EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile the EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then the EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.
- Supports wide operating temperatures from -40 to 75°C (EKI-2541MI/SI)
- Provides flexible mounting: DIN-rail and Panel mount
- Supports MDI/MDI-X auto-crossover
- Supports redundant 12-48 VDC power input
- Supports Auto-negotiation
- Supports store and forward transmission
- Supports full/half duplex flow control
- Provides internal jumper for Link Fault Pass-through (LFP) setting
- Provides 1 x 100 Mbps Multi-mode/Single-mode SC type fiber port
- Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ethernet Technology:
Fast Ethernet
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Core/Cladding Specification:
50/125 µm,62.5/125 µm
Fiber Optic Cable Wavelength:
1310 nm
Form Factor:
Rail-mountable,Panel-mountable,Wall Mountable
Limited Warranty:
5 Year
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Maximum Distance Supported:
2 km
Media Type Supported:
Twisted Pair,Optical Fiber
Network (RJ-45):
Yes
Network Technology:
10/100Base-TX,100Base-FX
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
Power Source:
DC
Product Model:
EKI-2541MI
Product Type:
Transceiver/Media Converter
SC Port Type:
Duplex
Total Number of Ports:
2
