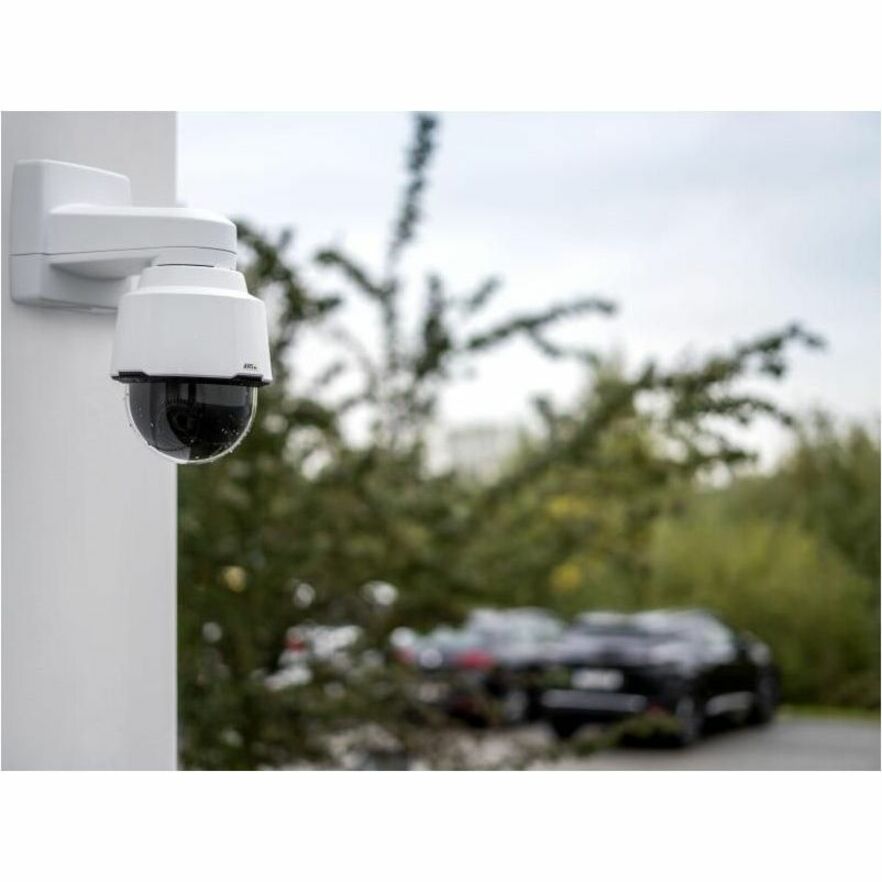

AXIS P5654-E Mk II Outdoor Full HD Network Camera - Color - Dome - White - TAA Compliant

SKU: 02915-001

This cost-effective PTZ camera offers great image quality in HDTV 1080p with 21x optical zoom and wide area coverage with 77° field of view. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. Including Axis Object Analytics, it can detect and classify people and vehicles- all tailored to specific needs. With IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can handle temperatures ranging from -30 °C to 50 °C (-22 °F to 122 °F). Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.

  • Network camera - Helps achieve high-quality video results
  • Up to 1920 x 1080 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 84.60 mm maximum focal length for dependable identification distances with better coverage
  • f/4.5 maximum aperture for productive capturing according to focal length and lighting conditions
  • 21x optical zoom for desired image clarity and maximum capturing convenience
  • Full HD recording format for exceptional video quality with maximum productivity
  • Infrared night vision type efficiently detects infrared waves that are invisible to the naked eye
  • Auto camera iris automatically adjusts the iris in order to regulate and optimize the amount of light or infrared energy a camera receives
  • Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability

Call for Availability

Regular price $1,879

Shipping calculated at checkout

Details

This cost-effective PTZ camera offers great image quality in HDTV 1080p with 21x optical zoom and wide area coverage with 77° field of view. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. Including Axis Object Analytics, it can detect and classify people and vehicles- all tailored to specific needs. With IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can handle temperatures ranging from -30 °C to 50 °C (-22 °F to 122 °F). Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.

  • Network camera - Helps achieve high-quality video results
  • Up to 1920 x 1080 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 84.60 mm maximum focal length for dependable identification distances with better coverage
  • f/4.5 maximum aperture for productive capturing according to focal length and lighting conditions
  • 21x optical zoom for desired image clarity and maximum capturing convenience
  • Full HD recording format for exceptional video quality with maximum productivity
  • Infrared night vision type efficiently detects infrared waves that are invisible to the naked eye
  • Auto camera iris automatically adjusts the iris in order to regulate and optimize the amount of light or infrared energy a camera receives
  • Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
Specifications
Camera Iris:
Auto
Color Family:
White
Color Supported:
Color
Connectivity Technology:
Wired
Diameter:
5.9"
Durability:
Shock Resistant
Environmentally Friendly:
Yes
Environmental Compliance:
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Fast Ethernet
Features:
Day/Night,Human Detection,Vehicle Detection,Wide Dynamic Range,HTTPS Encryption,Ingress Protection,White Balance,Defog,Privacy Masking,Auto Tracking
Field of View:
Horizontal: 77.0°-3.6°, Vertical: 43.1°-2.0°
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Size:
1/2.8"
Image Sensor Type:
CMOS
Impact Protection Rating:
IK10
Indoor/Outdoor:
Outdoor
Ingress Protection Rating:
IP66
Input Voltage:
240 V AC
Lens Included:
Yes
Lens Type:
Varifocal
Limited Warranty:
5 Year
Longest Shutter Speed:
2 Second
Manufacturer:
Axis Communications
Manufacturer Website Address:
http://www.axis.com
Maximum Aperture:
f/4.5
Maximum Focal Length:
84.60 mm
Maximum Frame Rate:
60 fps
Maximum Operating Humidity:
95%
Maximum Operating Temperature:
122°F (50°C)
Maximum Power Consumption:
37 W
Maximum Video Resolution:
1920 x 1080
Minimum Aperture:
f/1.6
Minimum Focal Length:
4 mm
Minimum Operating Temperature:
-22°F (-30°C)
Network (RJ-45):
Yes
Night Vision:
Yes
Night Vision Type:
Infrared
Optical Zoom:
21x
Package Contents:
  • Camera,
  • installation guide,
  • smoked dome,
  • RJ45 push-pull connector (IP66),
  • hard ceiling mount,
  • spring clip adapter,
  • U-profile adapter pipe
Power Source Type:
AC,PoE+
Product Color:
White
Product Model:
P5654-E Mk II
Product Series:
P56
Product Type:
Network Camera
Protocols:
IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,TLS,DiffServ (QoS),FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RTSP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,NTCIP,LLDP,CDP,MQTT v3.1.1,Syslog,ZeroConf,IEEE 802.1X,IEEE 802.1AR,HTTP/2
Recording Formats:
Full HD
Remote Management:
Yes
Shortest Shutter Speed:
1/66500 Second
Storage Type:
Memory Card
TAA Compliant:
Yes
Video Formats:
Motion JPEG,H.264 (MPEG-4 Part 10/AVC),H.264M (MPEG-4 Part 10/AVC),H.264B (MPEG-4 Part 10/AVC),H.264H (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC),H.264,H.265
