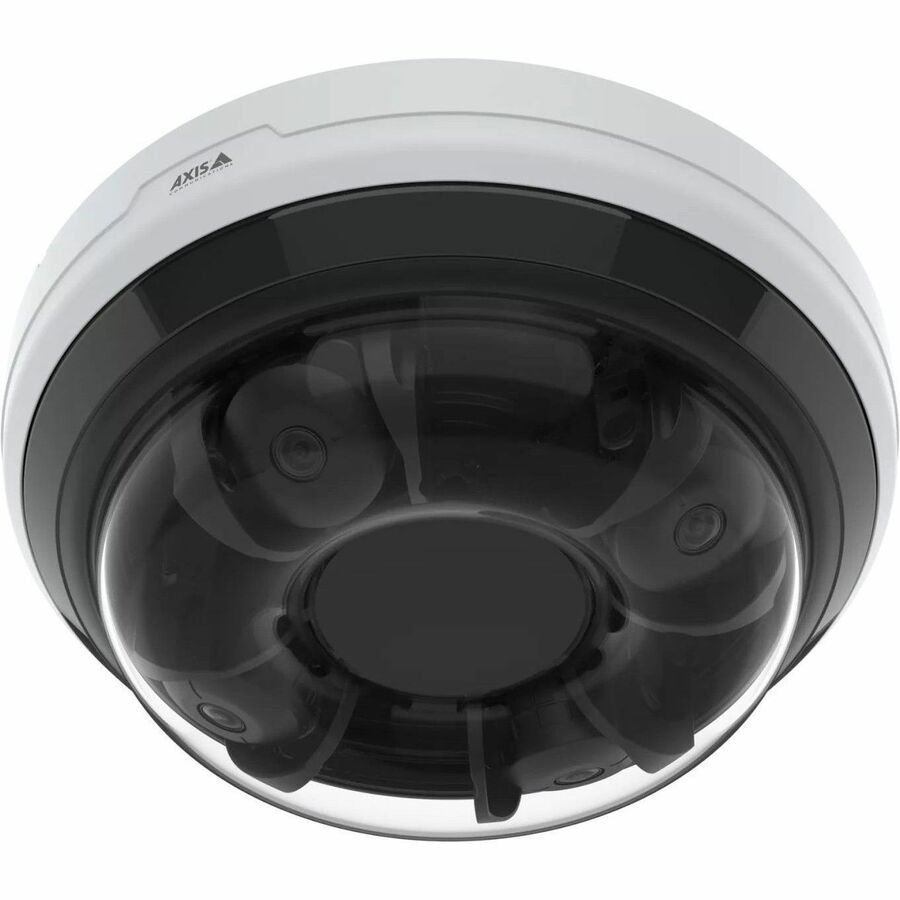

AXIS P3747-PLVE 5 Megapixel Outdoor Network Camera - Color - Dome - White

SKU: 02897-001

AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps. It includes 360° IR illumination with individually controllable LEDs and a removable IR cut filter. All four sensors are fully motorized and PTRZ functionality ensures ease of installation and configuration. Plus, presets make it easy to configure multiple devices. This discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. It supports advanced analytics on the edge. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-2 Level 2 certified secure key storage and operations.

  • 4x5 MP at 20 fps per channel
  • Remote pan, tilt, roll, zoom (PTRZ)
  • Support for powerful analytics
  • 360° IR illumination with individually controlled LEDs
  • Built-in cybersecurity with Axis Edge Vault
  • Up to 2592 x 1944 video resolution
  • Features RGB CMOS sensor
  • 7.42 mm maximum focal length provides incredible detail and how effective is your network camera
  • f/1.6 maximum aperture for productive capturing according to focal length and lighting conditions
  • 2.3x optical zoom for desired image clarity and maximum capturing convenience
  • Fixed camera iris provides reliable output with improved quality to ensure maximum productivity
  • Varifocal lens type to ensure maximum surveillance dependability and optimal performance
  • PoE power source type for your network camera provides optimal performance with maximum usability
  • Ceiling Mount mount type is reliable and allows trouble-free and easy usage
  • Day/Night feature for better reliance and usability

17 in stock

Regular price $2,409

Shipping calculated at checkout

Details

AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps. It includes 360° IR illumination with individually controllable LEDs and a removable IR cut filter. All four sensors are fully motorized and PTRZ functionality ensures ease of installation and configuration. Plus, presets make it easy to configure multiple devices. This discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. It supports advanced analytics on the edge. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-2 Level 2 certified secure key storage and operations.

  • 4x5 MP at 20 fps per channel
  • Remote pan, tilt, roll, zoom (PTRZ)
  • Support for powerful analytics
  • 360° IR illumination with individually controlled LEDs
  • Built-in cybersecurity with Axis Edge Vault
  • Up to 2592 x 1944 video resolution
  • Features RGB CMOS sensor
  • 7.42 mm maximum focal length provides incredible detail and how effective is your network camera
  • f/1.6 maximum aperture for productive capturing according to focal length and lighting conditions
  • 2.3x optical zoom for desired image clarity and maximum capturing convenience
  • Fixed camera iris provides reliable output with improved quality to ensure maximum productivity
  • Varifocal lens type to ensure maximum surveillance dependability and optimal performance
  • PoE power source type for your network camera provides optimal performance with maximum usability
  • Ceiling Mount mount type is reliable and allows trouble-free and easy usage
  • Day/Night feature for better reliance and usability
Specifications
AI-powered:
Yes
Audio Support:
Yes
Camera Iris:
Fixed
Color Family:
White
Color Supported:
Color
Connectivity Technology:
Wired
Effective Camera Resolution:
5 Megapixel
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Ethernet Technology:
Gigabit Ethernet
Features:
Day/Night,Wide Dynamic Range,White Balance,Mirror,Privacy Masking,Built-in Speaker,2D Noise Reduction,3D Noise Reduction,Motion Detection,Tampering Alarm,Human Detection,Vehicle Detection
Field of View:
71.5°-30°
Form Factor:
Dome
HD Recording:
Yes
Image Sensor Size:
1/2.78"
Image Sensor Type:
RGB CMOS
Impact Protection Rating:
IK10
Indoor/Outdoor:
Outdoor
Infrared (IR) Cut-off Filter:
Yes
Ingress Protection Rating:
IP66
Languages Support:
English,German,French,Spanish,Italian,Russian,Simplified Chinese,Japanese,Korean,Portuguese,Polish,Traditional Chinese,Dutch,Czech,Swedish,Finnish,Turkish,Thai,Vietnamese
Lens Included:
Yes
Lens Type:
Varifocal
Limited Warranty:
5 Year
Longest Shutter Speed:
1 Second
Manufacturer:
Axis Communications
Manufacturer Website Address:
http://www.axis.com
Maximum Aperture:
f/1.6
Maximum Focal Length:
7.42 mm
Maximum Frame Rate:
30 fps
Maximum Operating Humidity (Condensing):
100%
Maximum Operating Temperature:
122°F (50°C)
Maximum Power Consumption:
23.70 W
Maximum Storage Humidity (Non-condensing):
95%
Maximum Storage Temperature:
149°F (65°C)
Maximum Video Resolution:
2592 x 1944
Minimum Aperture:
f/2.7
Minimum Focal Length:
3.18 mm
Minimum Operating Humidity (Condensing):
10%
Minimum Operating Temperature:
-40°F (-40°C)
Minimum Storage Humidity (Non-condensing):
5%
Minimum Storage Temperature:
-40°F (-40°C)
Mount Type:
Ceiling Mount,Bracket Mount,Junction Box Mount
Network (RJ-45):
Yes
Number of Sensors:
4
Optical Zoom:
2.3x
Package Contents:
  • P3747-PLVE Panoramic Camera
  • Installation Guide
  • Connector Guard
  • Cable Gasket
  • Mounting Plate
  • Dome Casing
Power Source Type:
PoE
Product Color:
White
Product Material:
Aluminum,Plastic,Polycarbonate
Product Model:
P3747-PLVE
Product Series:
P37
Product Type:
Network Camera
Protocols:
IPv4,IPv6 USGv6,ICMPv4/ICMPv6,HTTP,HTTPS,HTTP/2,TLS,FTP,SFTP,CIFS/SMB,SMTP,mDNS (Bonjour),UPnP,SNMPv1/v2c/v3 (MIB2),DNS/DNSv6,DDNS,NTP,NTS,RSTP,RTP,SRTP/RTSPS,TCP,UDP,IGMPv1/v2/v3,RTCP,ICMP,DHCPv4/v6,ARP,SSH,LLDP,CDP,MQTT v3.1.1,UDP/TCP/TLS,ZeroConf
Remote Management:
Yes
Shortest Shutter Speed:
1/19500 Second
Storage Type:
Memory Card
Video Formats:
H.264 (MPEG-4 Part 10/AVC),H.265 (MPEG-H Part 2/HEVC) Main Profile,Motion JPEG,H.264,H.265,Zipstream,H.264B,H.264M,H.264H,H.265B,H.265H,H.265M
Wide Dynamic Range Detail:
120 dB
