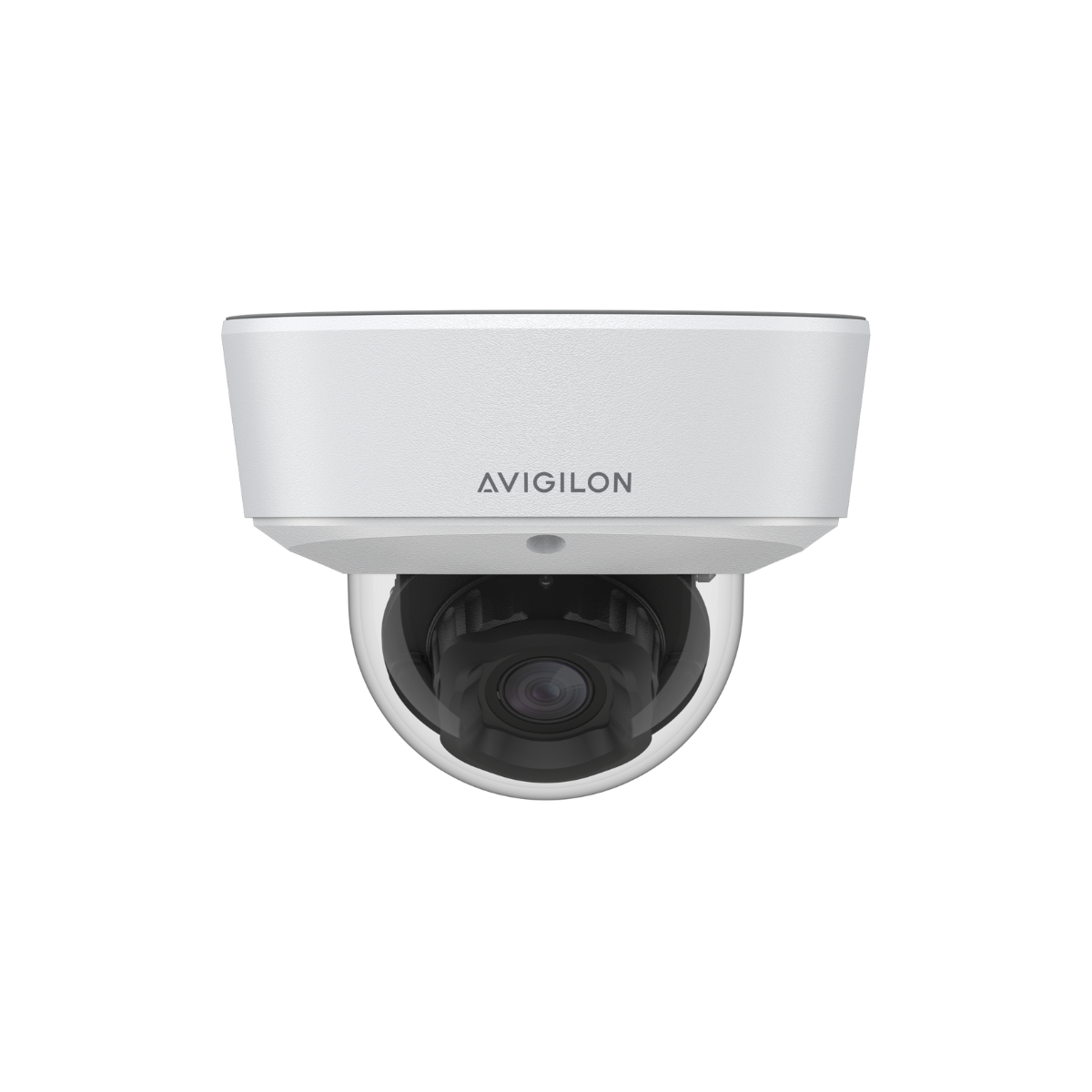

Avigilon Alta H6SL Dome Indoor Camera - 3MP

MFG SKU: 3.0C-H6SL-D1-30

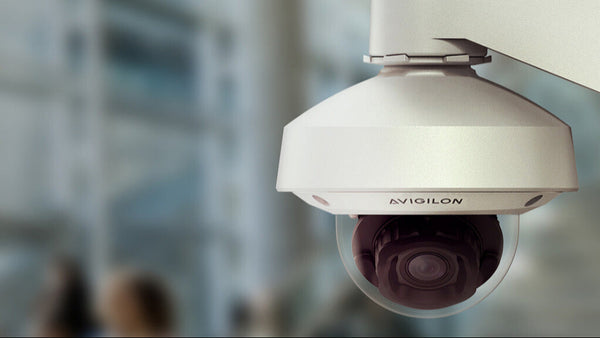

Get proactive about safety and security with Avigilon's Dome cameras.

Alta Aware License Term (Includes 30 Days Cloud Storage)
$179

In stock

Regular price $918.00

Tax included

Shipping calculated at checkout

Cloud Storage & Accessories

Product Specifications

Image Performance

Image Sensor 1/2.8” progressive scan CMOS
Imaging Area (H x V) 2.0 MP: 5.57 mm x 3.13 mm (0.219" x 0.123")
3.0 MP / 5.0 MP: 5.18 mm × 3.89 mm (0.204” × 0.153”)
Aspect Ratio 2.0 MP: 16:9
3.0 MP / 5.0 MP: 4:3
Dynamic Range (HDR Off) 83 dB
Dynamic Range (HDR On) 2.0 MP: 126 dB
3.0 MP / 5.0 MP: 130 dB
3D Noise Reduction Filter Supported
Max Frame Rate 30 fps
Streaming Resolutions 2.0 MP: 1920x1080, 1280x720, 640x360
3.0 MP: 2048x1536, 1280x960, 640x480
5.0 MP: 2592x1944, 1920x1440, 1280x960, 640x480

Lens and IR Illumination

IR Illumination Max Distance (high power 850 nm LEDs) Dome (3.4-10.5 mm): 30 m (100 ft), full tele
20 m (65 ft), full wide
Bullet 2.0 MP (3.4-10.5 mm): 50 m (164 ft), full tele
30 m (100 ft), full wide
Bullet 3.0 MP / 5.0 MP (3.4-10.5 mm): 40 m (131 ft), full tele
20 m (65 ft), full wide
Bullet 3.0 MP / 5.0 MP (10.9-29 mm): 70 m (230 ft), full tele
30 m (100 ft), full wide
Minimum Illumination (at 33 ms shutter speed) 2.0 MP: With IR: 0 lux in monochrome mode
Without IR: 0.01 lux in color mode;
0.005 lux in monochrome mode
3.0 MP / 5.0 MP: With IR: 0 lux in monochrome mode
Without IR: 0.04 lux in color mode;
0.02 lux in monochrome mode
Horizontal Angle of View 2.0 MP: 101° - 31°
3.0 MO / 5.0 MP: (3.4-10.5 mm) 95° - 28° (10.9-29 mm) 28° - 10°
Vertical Angle of View 2.0 MP: 53° - 17°
3.0 MO / 5.0 MP: (3.4-10.5 mm) 69° - 21° (10.9-29 mm) 21° - 7°
Max Aperture 3.4-10.5 mm: F1.6
10.9-29 mm: F1.7
Lens Control Remote Zoom and Focus, Autofocus, IR Cut Filter

Image Control

Image Compression Method H.264, Motion JPEG
Electronic Shutter Control Automatic
Day/Night Control Automatic
Flicker Control 50 Hz, 60 Hz
Iris Control P-Iris
White Balance Automatic
Image Rotation 0°, 90°, 180°, 270° including Corridor Mode
Privacy Zones Up to 64 zones

Network

Network 100BASE-TX
Cabling Type CAT5
Network RJ45 Connector
ONVIF ONVIF® compliance Profile S, Profile T, Profile G, and Profile M
Security Password protection, HTTPS encryption
Protocols IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, HSTS
Streaming Protocols WebRTC, RTP/RTSP/UDP, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP
Platform Compatibility Avigilon Alta Aware, Avigilon Unity ACC, 3rd party VMS

Auxiliary I/O

Audio Compression Method G.711 PCM 8 kHz, Opus
Audio Input/Output Line level I/O
External I/O Terminals Alarm In, Alarm Out
Microphone (Indoor Dome) Optional Microphone accessory sold separately for Indoor Dome Camera only

Mechanical

Dimensions Surface Mount: D 156 mm × H 116 mm; D 6.1” × H 4.6”
In-Ceiling Mount: D 174 mm × H 165 mm; D 6.9” × H 6.5”
Pendant Mount: D 156 mm × H 161 mm; D 6.2” × H 6.3"
Weight Surface Mount: 0.81 kg
In-Ceiling Mount: 0.80 kg
Pendant Mount: 1.07 kg
Max. Ceiling Thickness Surface Mount: N/A
In-Ceiling Mount: 25 mm (1.0")
Pendant Mount: N/A
Dome Bubble Polycarbonate
Body Polycarbonate
Housing Polycarbonate
Finish Plastic, injection molded, Pantone 427C
Adjustment Range 360° pan, 30°–95° tilt (recommended), 8°–95° tilt (maximum), ±180° azimuth

Electrical

Power Source PoE: IEEE 802.3af Class 3 compliant, 12VDC Aux (Available on Bullet only)
IR Illuminator Behaviour Dome: IR illuminator will turn off if the temperature is 60°C (140°F) or higher. The illuminator will operate at 50% power if the temperature is between 40°C (104°F) and 52 °C (117°F). Hysteresis: 2°C (3.6°F).
Bullet: IR illuminator will turn off if the temperature is 60°C (140°F) or higher.
RTC Battery Backup 3V manganese lithium
PoE Dome: 10 W max (8 W with no IR or IR disabled)
Bullet: 13 W max
Memory 1GB RAM, 512MB Flash

Environmental

Operating Temperature Indoor Dome: -10°C to +60°C (14°F to 140°F)
Outdoor Dome: -40°C to +60°C (-40°F to 140°F)
Bullet: -40°C to +60°C (-40°F to 140°F)
Storage Temperature -10°C to +70°C (14°F to 158°F)
Absolute Maximum Temperature 74°C (165°F) per NEMA TS2 (Temp.) para 2.2.7.2 - 2.2.7.7
Humidity 0 - 95% non-condensing

Certifications

Certifications/Approvals UL, cUL, CE, UKCA, ROHS, RCM, NOM, KC, BIS
Safety UL/CSA/EN/IEC 62368-1, IEC 62471
Environmental Indoor Dome: IEC/EN 62262 Impact (IK 10), IEC 60529 IP52 rating
Outdoor Dome: IEC/EN 62262 (IK 10), IEC 60529 IP66, IP67 rating, Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27
Bullet: IEC/EN 62262 (IK 10), IEC 60529 IP66, IP67 rating, Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27
Electromagnetic Emissions FCC Part 15 Subpart B (Class B), IC ICES-003 (Class B), EN 55032 (Class B), EN 61000-6-3, EN 61000-3-2, EN 61000-3-3
Electromagnetic Immunity EN 55035, EN 61000-6-1, EN 50130-4, EN 50121-4
Warranty Up to 10-year warranty with Active Aware License.

Analytics Rules Supported

Object in Area Rule triggered when an object of the selected type and attributes is detected in the region of interest.
Object Loitering Rule triggered when an object of the selected type and attributes loiters in the selected area for the selected period of time.
Objects Crossing Line Rule triggered when an object of the selected type and attributes crosses the line. The line can be unidirectional or bidirectional.
Object Counting Rule triggered when the count of objects of the selected type either exceeds or is less than the selected threshold.
Object Line Crossing Counting Rule triggered when the specific number of objects of the selected type either cross a line to enter or leave an area.
License Plate Detection Requires additional license.
