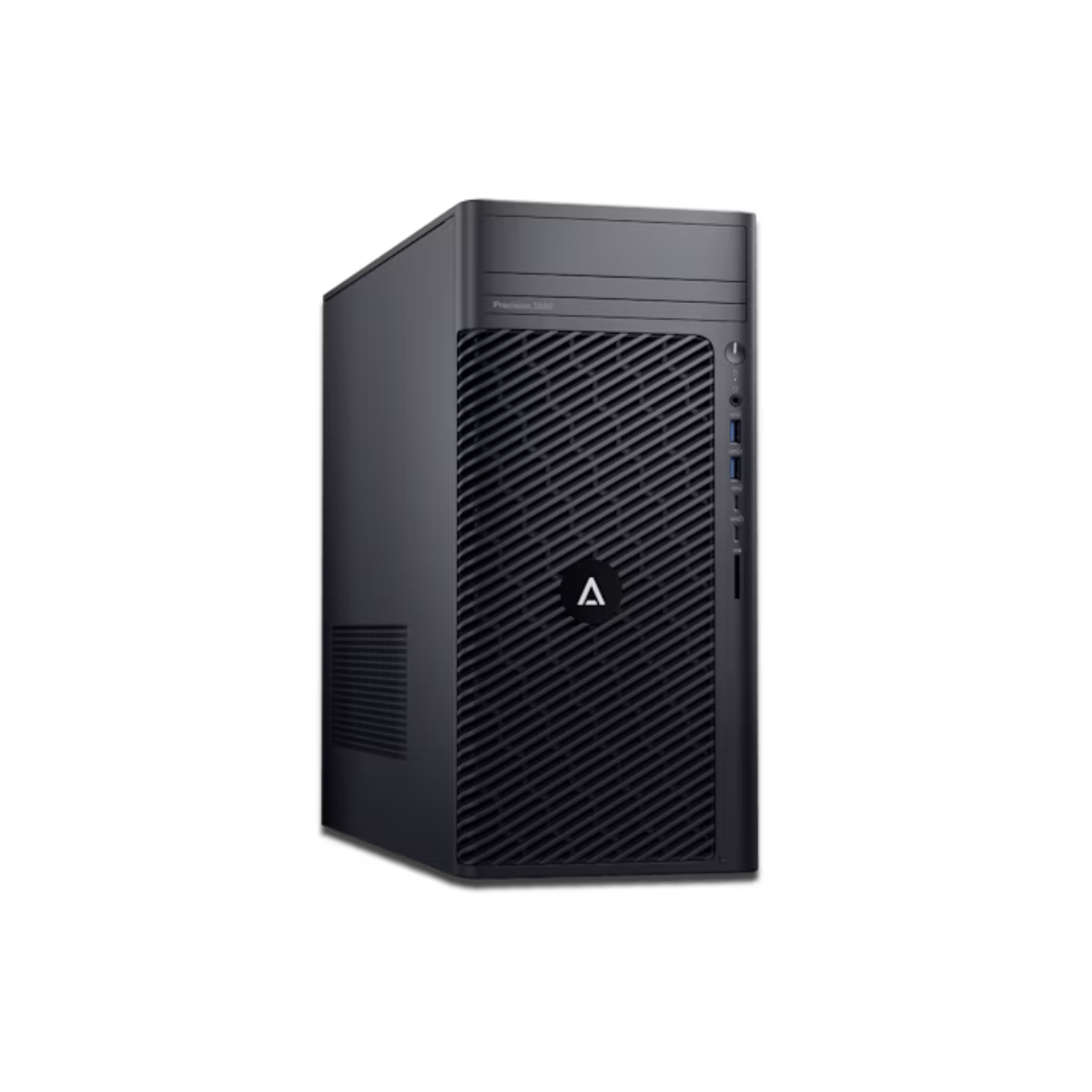

Avigilon Alta A800 Cloud Connector

Name: Avigilon Alta A800 Cloud Connector
Brand: Avigilon
SKU: APP-800-32-DG
Price: 9100.0 USD
Availability: InStock

MFG SKU: APP-800-32-DG

Get proactive about safety and security with Avigilon's Dome cameras.

Storage

Alta Aware License Term (Includes 30 Days Cloud Storage)

1 Year $179

3 Year

5 Year

10 Year

Quantity:

In stock

Regular price $9,279.00

Shipping calculated at checkout

Submit Purchase Order

Request A Quote

Cloud Storage & Accessories

Product Specifications

Cloud Connector Specifications

Number of Cameras Supported	50 cameras
Video Storage	Up to 48TB (raw), 32TB (net)

Local Display	Local display enables video views from Alta Video deployments to be sent to a monitor connected to the on-board video connections on Alta A200, A600, and A800 Cloud Connectors.

Component Specifications

Processor	Intel Core i5 14500
GPU	Nvidia RTX 4060

RAM	32GB: 2 x 16 GB, DDR5, 4400 MT/s, non-ECC
Network Interface	2.5Gb BaseT + 1Gb BaseT

SSD (system drive)	256 GB, M.2, PCIe NVMe, SSD, Class 35
HDD (video storage)	3x 12TB (32TB net) Surveillance-grade SATA drives

HDD Resiliency	Avigilon Alta adaptive block-level erasure coding, allowing 1 disk failure
Operating System	Avigilon Alta Linux-based hardened OS

Electrical Specifications

Input	90VAC-264VAC 7A (Max)
Power Supply	500W internal

Power Usage (at 80% load)	278W

Environmental Specifications

Storage (temperature)	-40°F to 158°F (-40°C to 70°C)
Operating (temperature)	41°F to 113°F (5°C to 45°C)

Storage (relative humidity)	5% to 95% (non-condensing, Max dew point temperature = 33°C)
Operating (relative humidity)	20% to 85% (non-condensing), Max dew point temperature = 26°C)

Storage (Vibration)	2.0 Grms random at 5 Hz-500 Hz
Operating (vibration)	0.52 Grms random at 5 Hz to 350 Hz

Storage (max. shock pulse)	105G half-sine pulse (2.5ms)
Operating (max. shock pulse)	40G Bottom half-sine pulse (2.5ms)

Warranty

Software Support	Avigilon Alta Technical Support
Cloud Connector	Five year Warranty, with next day OEM support on-site

HDD	RMA via Partner or Avigilon Alta Technical Support

Outline Dimensions

Height	14.68 in. (372.90 mm)
Width	6.81 in. (173.00 mm)

Depth	16.54 in. (420.20 mm)
Weight	Maximum: 35.38 lb (16.05 kg)
