Avigilon

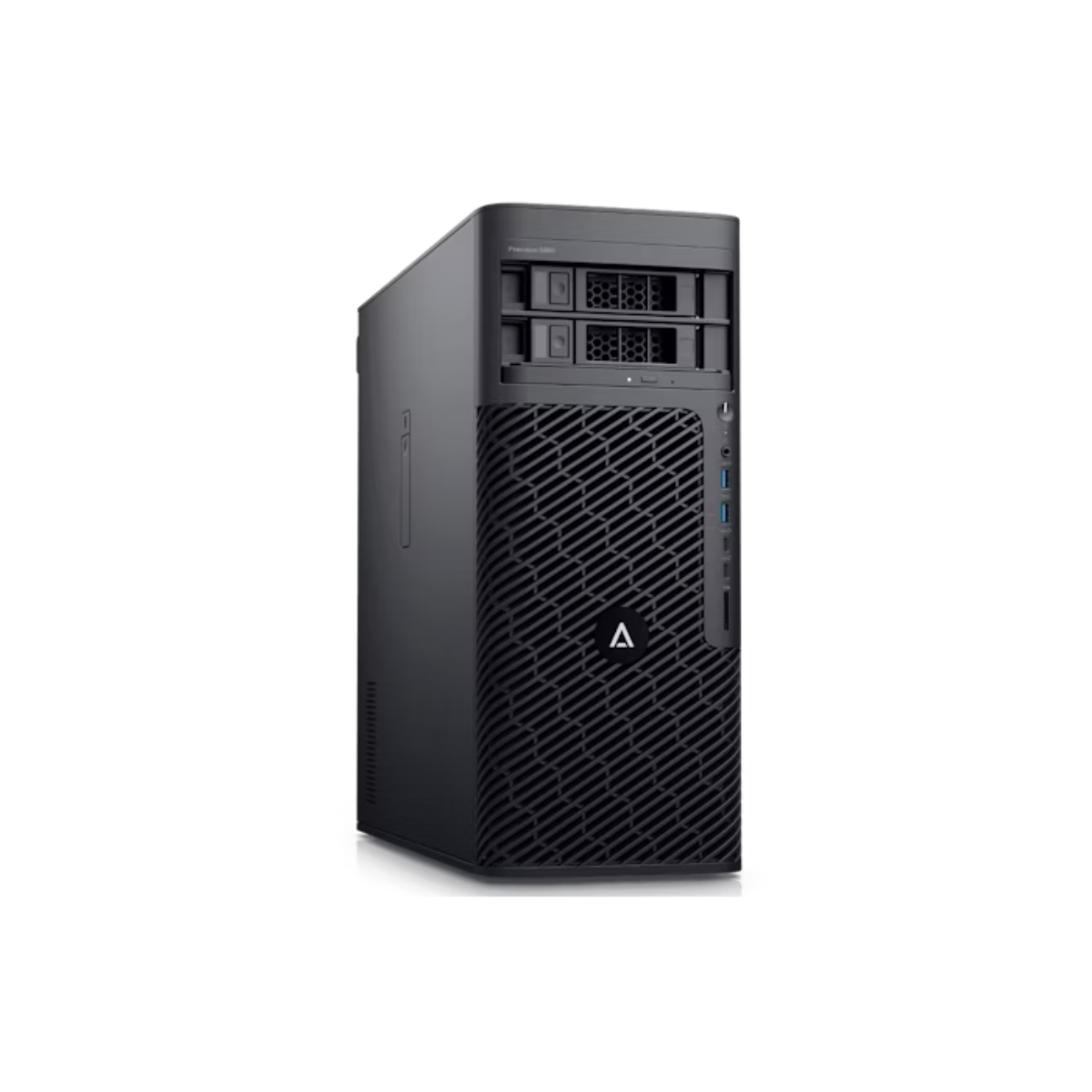

Avigilon Alta A1100 Cloud Connector

Name: Avigilon Alta A1100 Cloud Connector
Brand: Avigilon
SKU: APP-1100-24-BT
Price: 10500.0 USD
Availability: InStock

MFG SKU: APP-1100-24-BT

Get proactive about safety and security with Avigilon's Dome cameras.

Storage

Alta Aware License Term (Includes 30 Days Cloud Storage)

1 Year $179

3 Year

5 Year

10 Year

Quantity:

In stock

Regular price $10,679.00

Shipping calculated at checkout

Submit Purchase Order

Request A Quote

Cloud Storage & Accessories

Product Specifications

Cloud Connector Specifications

Number of Cameras Supported	75 cameras
Video Storage	Up to 64TB (raw), 48TB (net)

Local Display	Local display is not available from Alta A1100 Cloud Connectors.

Component Specifications

Processor	Intel Xeon W3-2423
GPU	Nvidia RTX A2000

RAM	32GB, 2x16GB, DDR5, 4800MHz, RDIMM ECC Memory
Network Interface	10Gb BaseT + 1Gb BaseT

SSD (system drive)	M.2, 256 GB, PCIe NVMe, SSD, Class 35
HDD (video storage)	4x 8TB (24TB net) or 4x 16TB (48TB net) Surveillance-grade SATA drives

HDD Resiliency	Avigilon Alta adaptive block-level erasure coding, allowing 1 disk failure
Operating System	Avigilon Alta Linux-based hardened OS

Electrical Specifications

Input	90VAC-264VAC 10A (Max)
Power Supply	750W internal

Power Usage (at 80% load)	402W

Environmental Specifications

Storage (temperature)	-40°F to 158°F (-40°C to 70°C)
Operating (temperature)	41°F to 113°F (5°C to 45°C)

Storage (relative humidity)	5% to 95% (non-condensing, Max dew point temperature = 33°C)
Operating (relative humidity)	20% to 80% (non-condensing), Max dew point temperature = 26°C)

Storage (Vibration)	2.0 Grms random at 5 Hz-500 Hz
Operating (vibration)	0.52 Grms random at 5 Hz to 350 Hz

Storage (max. shock pulse)	105G half-sine pulse with a change in velocity of 105G (2.5ms)
Operating (max. shock pulse)	40G Bottom half-sine pulse with a change in velocity of 40G (2.5ms)

Warranty

Software Support	Avigilon Alta Technical Support
Cloud Connector	Five year Warranty, with next day OEM support on-site

HDD	RMA via Partner or Avigilon Alta Technical Support

Outline Dimensions

Height	16.29 in. (414 mm) 16.45 in. (417.90 mm) with rubber foot protruding
Width	6.79 in. (172.60 mm)

Depth	16.90 in. (429.60 mm) 17.79 in. (452.10 mm) with lock structure protruding
Weight	Maximum: 47.80 lbs. (21.70 kg)
