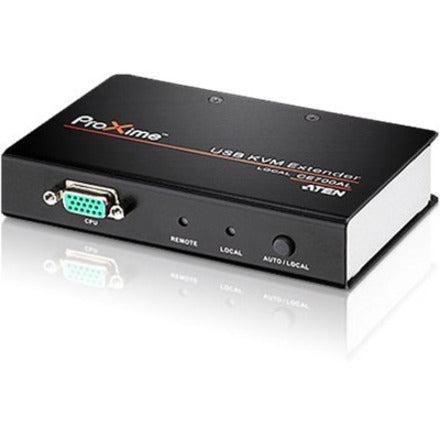

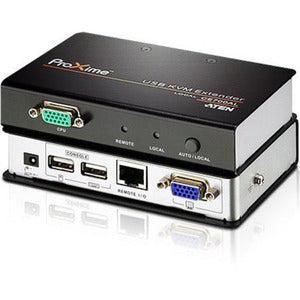

ATEN Proxime CE700A KVM Console/Extender

SKU: CE700A

The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.

More from the Manufacturer

  • High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
  • Automatic gain control - adjusts signal strength to compensate for distance
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
  • USB overcurrent detection and prevention
  • USB Keyboard and USB Mouse Ports
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)

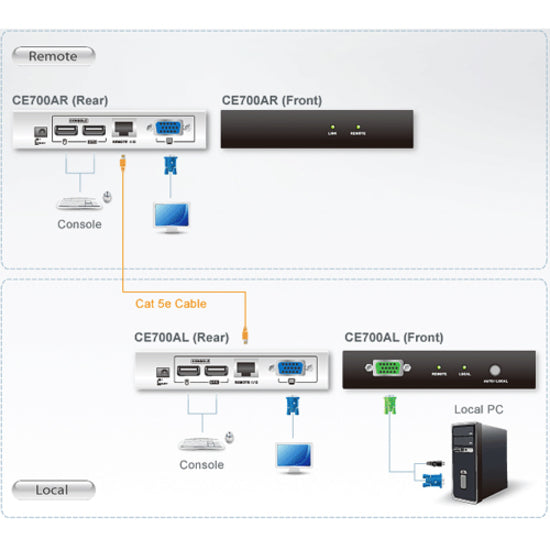

  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Cat 5e cable connects the Local and Remote Units - up to 150m apart

98 in stock

Regular price $239.04 Sale price $323.00
On Sale

Shipping calculated at checkout

Details

The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.

More from the Manufacturer

  • High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
  • Automatic gain control - adjusts signal strength to compensate for distance
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
  • USB overcurrent detection and prevention
  • USB Keyboard and USB Mouse Ports
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
  • Cat 5e cable connects the Local and Remote Units - up to 150m apart
Specifications
Connectivity Technology:
Wired
Country of Origin:
China
Environmentally Friendly:
Yes
Form Factor:
Rack-mountable
Graphic Mode:
WUXGA
Input Voltage:
5.3 V DC
KVM Technology:
Analog
Limited Warranty:
2 Year
Manufacturer:
ATEN Technology, Inc
Manufacturer Website Address:
http://www.aten.com/us/en/
Maximum Operating Distance:
492.13 ft
Maximum Video Resolution:
1920 x 1200
Network (RJ-45):
Yes
Number of Computers Supported:
1
Number of Local Users Supported:
1
Number of Network (RJ-45) Ports:
2
Number of Remote Users Supported:
1
Number of USB Ports:
4
Number of VGA Ports:
2
Packaged Quantity:
1
Package Contents:
  • Proxime CE700A KVM Console/Extender
  • 2 x Power Adapters
  • 1 x USB KVM Cable
  • 2 x Grounding Wires
  • 1 x Rack Mount Kit
  • 1 x User Manual
  • 1 x Quick Start Guide
Product Line:
ProXime
Product Model:
CE700A
Product Type:
KVM Console/Extender
Proprietary Interface:
Yes
Receiver Weight (Approximate):
10.93 oz
Transmitter Weight (Approximate):
11.29 oz
USB:
Yes
VGA:
Yes
