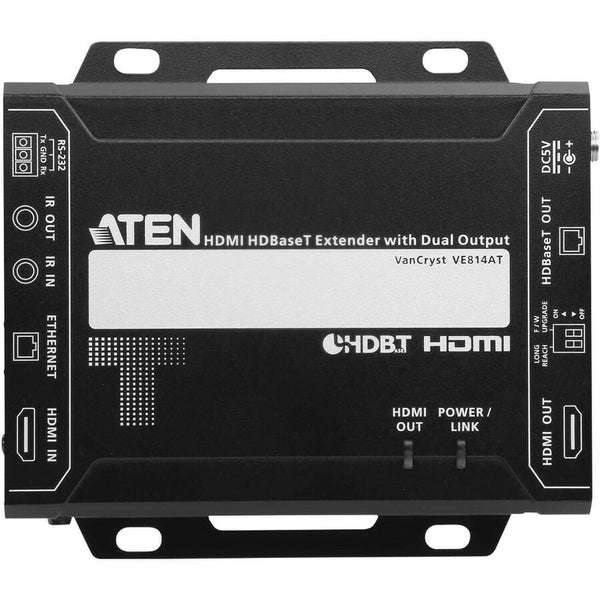

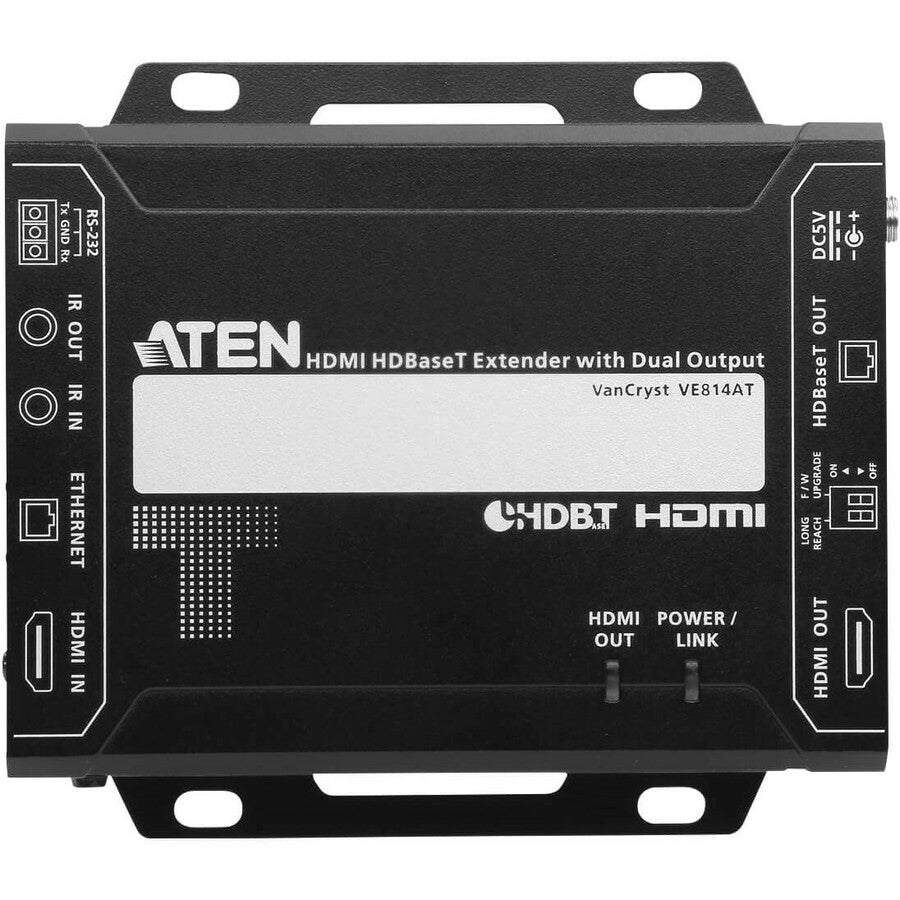

ATEN HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)-TAA Compliant
ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
- Supports wide screen format
- RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
- Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
- Extends Ethernet communication using the Ethernet pass-through port
- 1080p up to 150 m when in HDBaseT Long Reach Mode
- Superior video quality:
- 4K up to 100 m
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
12 in stock
Shipping calculated at checkout
ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
- Supports wide screen format
- RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
- Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
- Extends Ethernet communication using the Ethernet pass-through port
- 1080p up to 150 m when in HDBaseT Long Reach Mode
- Superior video quality:
- 4K up to 100 m
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
- Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)
- 1 x RS-232 Terminal Block
- 1 x Power Adapter
- 1 x User Instructions
