ATEN HDMI HDBaseT-Lite Transmitter with POH (HDBaseT Class B)-TAA Compliant
SKU: VE802T

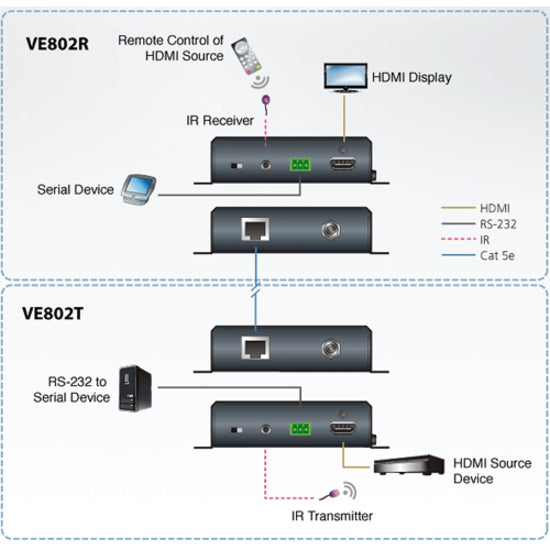

The VE802T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802T features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802T is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802T is perfect for a digital entertainment center or any installation that requires superior video quality.
- Rack- Mountable
- Bi-directional IR channel - IR transmission is processed one direction at a time
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
Call for Availability
Regular price
$161.84
Sale price
$209.00
On Sale
Shipping calculated at checkout
The VE802T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802T features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802T is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802T is perfect for a digital entertainment center or any installation that requires superior video quality.
- Rack- Mountable
- Bi-directional IR channel - IR transmission is processed one direction at a time
- Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
- HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
- HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
Connectivity Technology:
Wired
Environmentally Friendly:
Yes
Form Factor:
Rack-mountable
Graphics Modes:
4K
HDMI In:
Yes
Manufacturer:
ATEN Technology, Inc
Manufacturer Website Address:
http://www.aten.com/us/en/
Maximum Operating Distance:
229.66 ft
Maximum Video Resolution:
4096 x 2160
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Number of HDMI Inputs:
1
Number of Input Devices Supported:
1
Number of Network (RJ-45) Ports:
1
Package Contents:
- HDMI HDBaseT-Lite Transmitter with POH (HDBaseT Class B)
- 1 x Power Adapter
- 1 x IR Transmitter
- 1 x Terminal Block
- 1 x User Instructions
Product Line:
VanCryst
Product Model:
VE802T
Product Type:
Video Extender Transmitter
Transmitter Depth:
5.35"
Transmitter Height:
1.14"
Transmitter Weight (Approximate):
15.52 oz
Transmitter Width:
3.98"
Twisted Pair Cable Standard:
Category 6a
