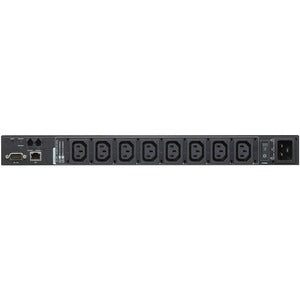

ATEN eco PDU PE6208AVG 8-Outlets PDU
SKU: PE6208AVG
Power Distribution
- Space saving rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 x 7 segment front panel LED shows Current / IP Address
- Remote users can monitor outlet status via web browser
- Safe shutdown support
- Separate power for the unit and its power outlets - the user interface is still accessible even when an overload trips the circuit breakers
- Remote power control over TCP/IP via built-in 10/100 Ethernet port (PE6 / PE8 only)
- Network Protocols: TCP/IP, PPP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping, Telnet
- PDU Power Management software - eco Sensors
- Supports SNMP Manager V1, V2 & V3
- Remote power control (On, Off, Power Cycle) by individual outlet (PE6 / PE8 only)
- Multiple power control methods - Wake on LAN, System After AC Back, Kill the Power (PE6 / PE8 only)
- Power-on sequencing - set the sequence and time delay for each outlet to power-on equipment in the correct order (PE6 / PE8 only)
- Easy setup and operation via browser-based user interface
- Multibrowser support (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
- RTC support to keep the clock/timer running without power
- Supports up to 8 user and 1 administrator accounts
- Proactive Overload Protection (POP) automatically powers off outlets during current overloads to protect connected devices (PE6 / PE8 only)
- Power status measurement at the bank level (PE5 / PE6), or bank and outlet level (PE7 / PE8 only)
- LED indicators for current and IP address
- Real-time current, voltage and kWH displayed in a browsed-based UI for monitoring
- Environment monitoring via external sensors for rack temperature and humidity readings and alerts
- Current, voltage, power dissipation, energy consumption, temperature and humidity threshold settings
- Supports naming of outlets
- User outlet access rights on an outlet-by-outlet basis
- Event logging and syslog support
- Supports Management Information Base (MIB) files for SNMP
- Upgradeable firmware
- Multilingual support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian
- Two-level password security
- Security features include password protection and advanced encryption technologies - 128 bit SSL
- Remote authentication support: RADIUS
- With Switched Outlet Monitored PDU, you can remotely monitor single-or three-phase voltage easily to ensure maximum power supply efficiency
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- IEC 60320 C20 plug/connector type for efficient connectivity and feasible power output
- 120 V AC input voltage for better reliance and maximum dependability
- 100 V AC output voltage for better reliance and maximum usability
Call for Availability
Regular price
$791
Shipping calculated at checkout
Power Distribution
- Space saving rack mount design with rear mounting
- IEC or NEMA outlet models
- 3 x 7 segment front panel LED shows Current / IP Address
- Remote users can monitor outlet status via web browser
- Safe shutdown support
- Separate power for the unit and its power outlets - the user interface is still accessible even when an overload trips the circuit breakers
- Remote power control over TCP/IP via built-in 10/100 Ethernet port (PE6 / PE8 only)
- Network Protocols: TCP/IP, PPP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping, Telnet
- PDU Power Management software - eco Sensors
- Supports SNMP Manager V1, V2 & V3
- Remote power control (On, Off, Power Cycle) by individual outlet (PE6 / PE8 only)
- Multiple power control methods - Wake on LAN, System After AC Back, Kill the Power (PE6 / PE8 only)
- Power-on sequencing - set the sequence and time delay for each outlet to power-on equipment in the correct order (PE6 / PE8 only)
- Easy setup and operation via browser-based user interface
- Multibrowser support (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
- RTC support to keep the clock/timer running without power
- Supports up to 8 user and 1 administrator accounts
- Proactive Overload Protection (POP) automatically powers off outlets during current overloads to protect connected devices (PE6 / PE8 only)
- Power status measurement at the bank level (PE5 / PE6), or bank and outlet level (PE7 / PE8 only)
- LED indicators for current and IP address
- Real-time current, voltage and kWH displayed in a browsed-based UI for monitoring
- Environment monitoring via external sensors for rack temperature and humidity readings and alerts
- Current, voltage, power dissipation, energy consumption, temperature and humidity threshold settings
- Supports naming of outlets
- User outlet access rights on an outlet-by-outlet basis
- Event logging and syslog support
- Supports Management Information Base (MIB) files for SNMP
- Upgradeable firmware
- Multilingual support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian
- Two-level password security
- Security features include password protection and advanced encryption technologies - 128 bit SSL
- Remote authentication support: RADIUS
- With Switched Outlet Monitored PDU, you can remotely monitor single-or three-phase voltage easily to ensure maximum power supply efficiency
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- IEC 60320 C20 plug/connector type for efficient connectivity and feasible power output
- 120 V AC input voltage for better reliance and maximum dependability
- 100 V AC output voltage for better reliance and maximum usability
Environmental Sensors:
Temperature/Humidity
Input Current:
16 A
Input Voltage:
120 V AC,230 V AC
Input Voltage Range:
100 V AC - 240 V AC
Management:
- Web Browser
- TCP/IP
- PPP
- UDP
- HTTP
- HTTPS
- SSL
- SMTP
- DHCP
- NTP
- DNS
- auto sense
- Ping
- Telnet
Manufacturer:
ATEN Technology, Inc
Manufacturer Website Address:
http://www.aten.com/us/en/
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
Output Voltage:
100 V AC,240 V AC
Output Voltage Range:
100 V AC - 240 V AC
PDU Type:
Switched Outlet Monitored
Plug/Connector Type:
IEC 60320 C20
Power Rating (VA):
3680 VA
Product Line:
eco PDU
Product Model:
PE6208AVG
Product Type:
PDU
Protection Type:
Overload Protection,Overcurrent Protection
Rack Height:
1U
Receptacle Detail:
8 x IEC 60320 C13
Receptacle Type:
IEC 60320 C13
