ATEN CL6700MW DVI Full HD LCD Console-TAA Compliant

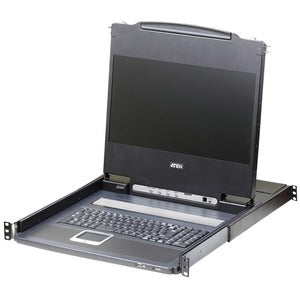

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3'' LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW's console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.
The CL6700MW features a port for an external USB mouse on the unit's front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.
- Standard 105-key keyboard; Sun keyboard emulation
- Standard rack mount kit included
- Optional Easy Installation Rack Mounting Kit available
- Audio support (speakers)
- Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
- Supports an external console with USB / DVI / VGA / HDMI connectors (CL6700MW); supports an external console with USB / DVI / VGA connectors (CL6700N)
- Superior video quality - up to 1920 x 1080 @ 60Hz (CL6700MW); up to 1280 x 1024 @75 Hz (CL6700N)
- Integrated KVM console with a 19" DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700N)
- Integrated KVM console with a 17.3'' LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700MW)
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
5 in stock
Shipping calculated at checkout
The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3'' LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW's console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.
The CL6700MW features a port for an external USB mouse on the unit's front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.
- Standard 105-key keyboard; Sun keyboard emulation
- Standard rack mount kit included
- Optional Easy Installation Rack Mounting Kit available
- Audio support (speakers)
- Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
- Supports an external console with USB / DVI / VGA / HDMI connectors (CL6700MW); supports an external console with USB / DVI / VGA connectors (CL6700N)
- Superior video quality - up to 1920 x 1080 @ 60Hz (CL6700MW); up to 1280 x 1024 @75 Hz (CL6700N)
- Integrated KVM console with a 19" DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700N)
- Integrated KVM console with a 17.3'' LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700MW)
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- CL6700MW DVI Full HD LCD Console
- 1 x Custom USB DVI KVM Cable Set
- 1 x Power Cord
- 1 x Firmware Upgrade Cable
- 1 x User Instructions
- Standard Rack Mount Kit
