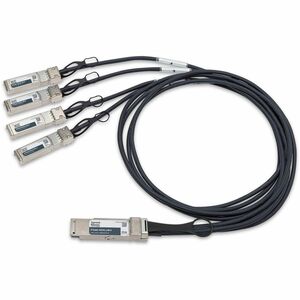

Approved Networks 40GBASE QSFP+ Passive DAC Cable (QSFP+ to 4 x SFP+) Breakout Cable
SKU: ET6402-10DAC-2M-A
Approved Networks 40GBASE QSFP+ Passive DAC Cable (QSFP+ to 4 x SFP+) Breakout Cable - 6.56 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP+ Network - Second End: 4 x SFP+ Network - 40 Gbit/s - 30 AWG
- Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
- Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
- Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
- 30 AWG to 26 AWG cable sizes available
- 100 ohm differential impedance system
- Single 3.3V power supply, low power consumption, <0.5W
- Operating case temperature: -20 to 85°C
- All-metal housing for superior EMI performance
- Precision process control for minimization of pair-to-pair skew
- AC coupling of PECL signals EEPROM for cable signature & system communications
- Low cross-talk and pair-to-pair skew maintains signal integrity
Call for Availability
Regular price
$95.70
Shipping calculated at checkout
Approved Networks 40GBASE QSFP+ Passive DAC Cable (QSFP+ to 4 x SFP+) Breakout Cable - 6.56 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP+ Network - Second End: 4 x SFP+ Network - 40 Gbit/s - 30 AWG
- Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
- Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
- Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
- 30 AWG to 26 AWG cable sizes available
- 100 ohm differential impedance system
- Single 3.3V power supply, low power consumption, <0.5W
- Operating case temperature: -20 to 85°C
- All-metal housing for superior EMI performance
- Precision process control for minimization of pair-to-pair skew
- AC coupling of PECL signals EEPROM for cable signature & system communications
- Low cross-talk and pair-to-pair skew maintains signal integrity
American Wire Gauge:
30 AWG
Cable Length:
6.56 ft
Cable Type:
Twinaxial
Connector on First End Details:
1 x QSFP+ Network
Connector on Second End Details:
4 x SFP+ Network
Connector Type on First End:
QSFP+ Network
Connector Type on Second End:
SFP+ Network
Data Transfer Rate:
40 Gbit/s
Device Supported:
Network Device
Environmentally Friendly:
Yes
Features:
Breakout Style,Passive,Quad Data Rate (QDR) Technology,Bendable
Jacket Material:
Polyvinyl Chloride (PVC)
Limited Warranty:
Lifetime
Manufacturer:
Legrand Group
Manufacturer Website Address:
http://www.legrand.us
Maximum Distance:
16.40 ft
Package Type:
OEM
Product Material:
Silver-plated Copper
Product Type:
Network Cable
