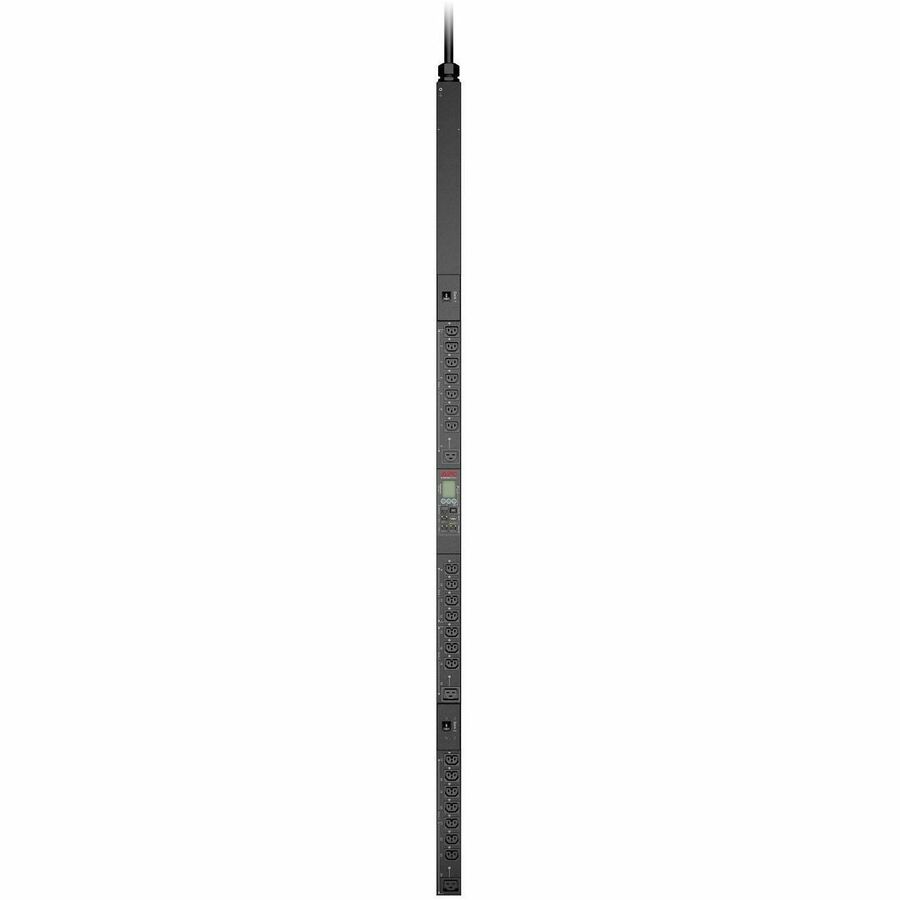

APC NetShelter Switched Rack PDU, 0U, 5.0kW, 200V and 208V, 30A, 21 C13/C15 and 3 C19/C21 outlets
SKU: APDU9941

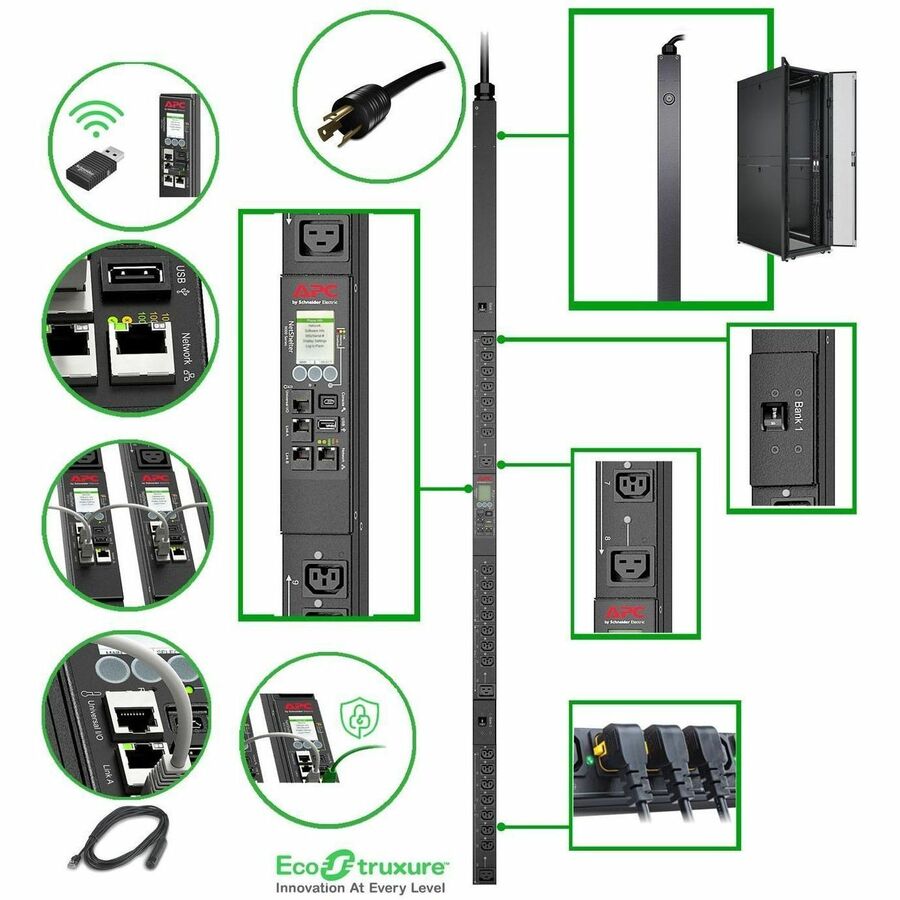

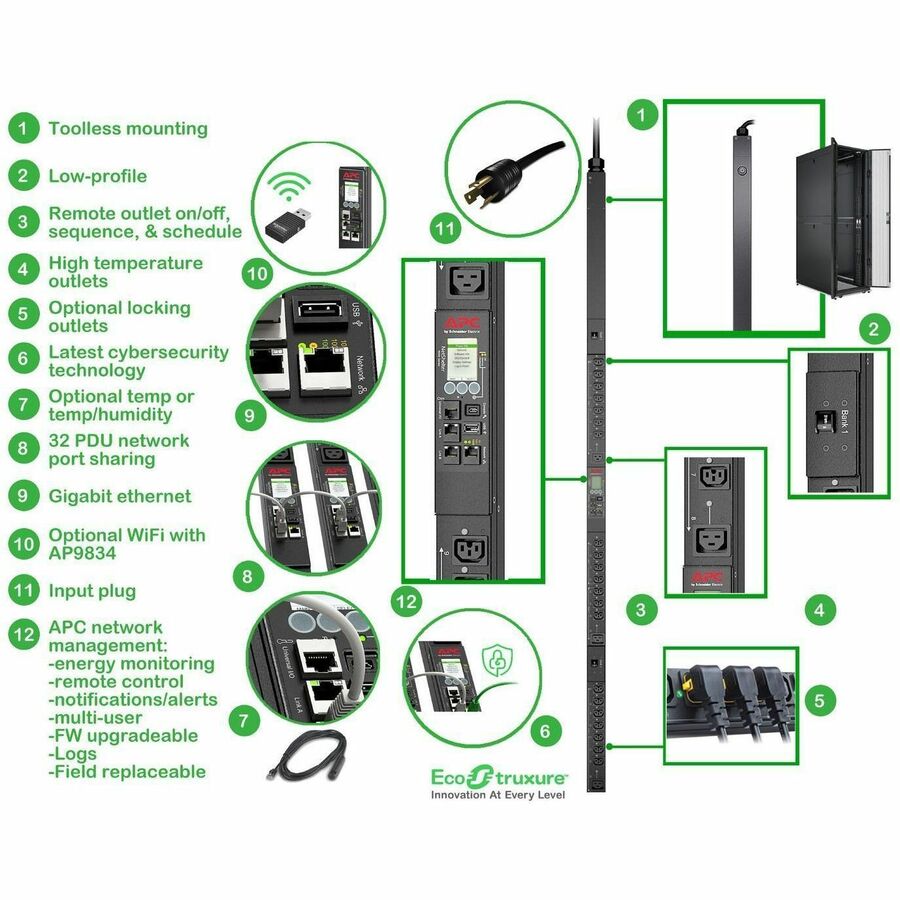

The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty
- Ideal for colocation, large data centers or distributed IT sites
- Remote management of rack PDUs for efficient time-saving
- Plan capacity and balance loads with +/- 1% metering accuracy (amps, volts, kW, kWh)

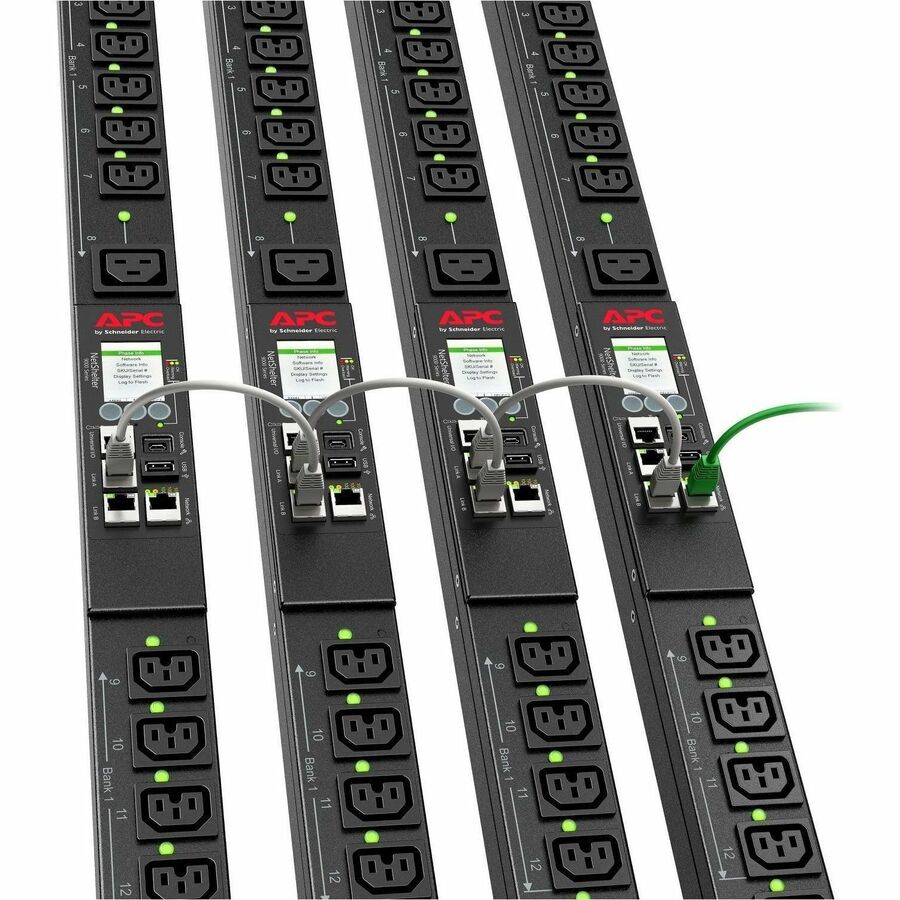

- Gigabit ethernet connectivity
- Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
- Power sequencing delays determine the order in which power is turned on or off
- Stay on top of potential circuit overloads with user-defined alarms

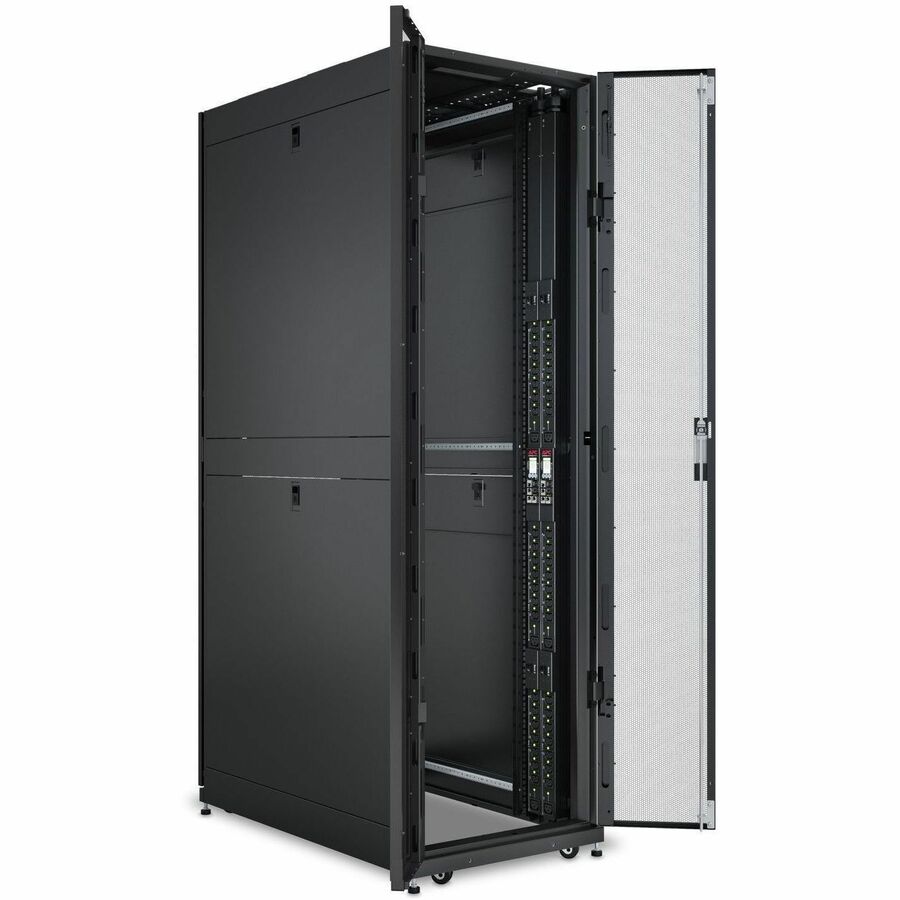

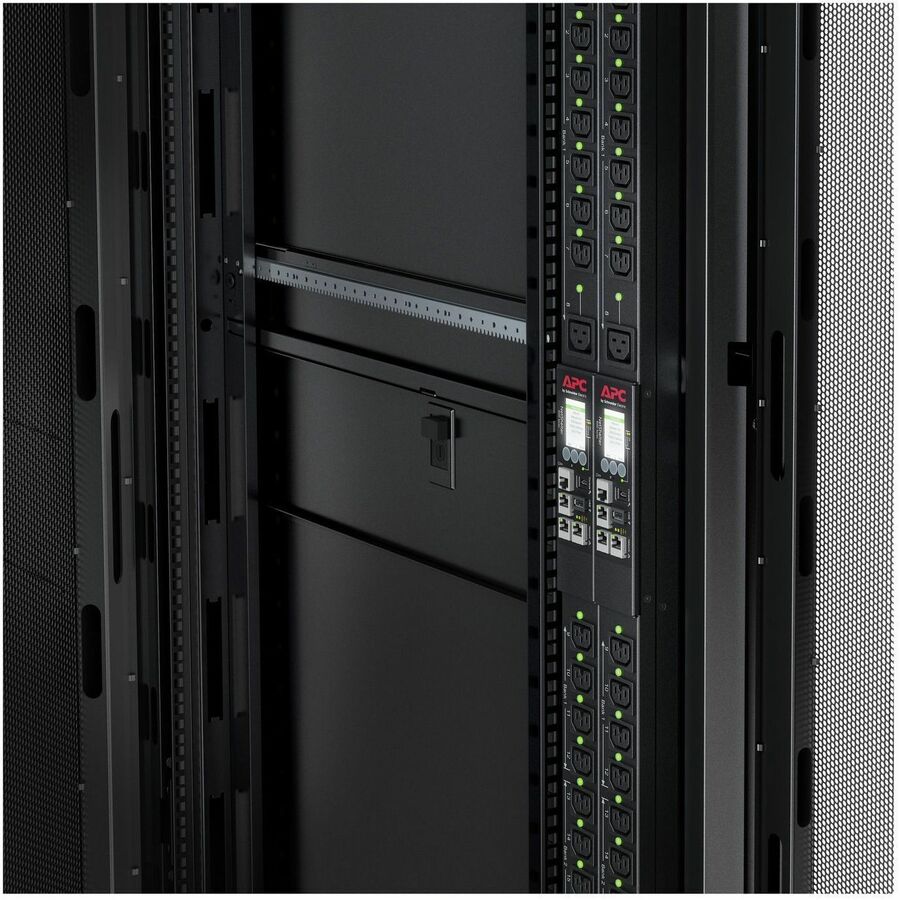

- Zero U toolless installation
Call for Availability
Regular price
$2,585
Shipping calculated at checkout
The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty
- Ideal for colocation, large data centers or distributed IT sites
- Remote management of rack PDUs for efficient time-saving
- Plan capacity and balance loads with +/- 1% metering accuracy (amps, volts, kW, kWh)
- Gigabit ethernet connectivity
- Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
- Power sequencing delays determine the order in which power is turned on or off
- Stay on top of potential circuit overloads with user-defined alarms
- Zero U toolless installation
Additional Warranty Information:
3 years repair or replace
Cord Length:
10 ft
Country of Origin:
India
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Tower
Input Current:
30 A
Input Voltage:
200 V,208 V
Input Voltage Range:
200 V AC - 240 V AC
Limited Warranty:
3 Year
Management:
- Web
- SNMP
- Telnet
Manufacturer:
Schneider Electric SA
Manufacturer Website Address:
http://www.schneider-electric.com
Mounting Orientation:
Vertical
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
Output Voltage:
200 V AC,208 V AC
Package Contents:
PDU Type:
Switched
Placement:
Side
Plug/Connector Type:

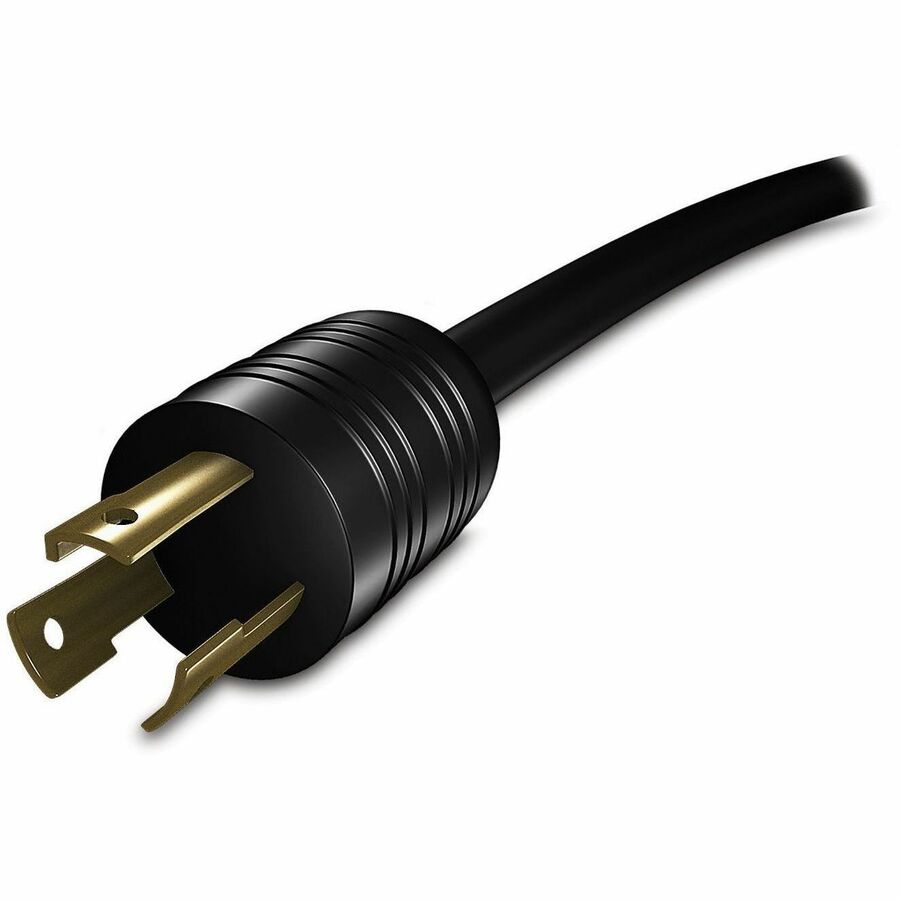

NEMA L6-30P
Power Rating (VA):
4992 VA
Power Rating (Watt):
5000 W
Product Series:
9000
Product Type:
PDU
Protection Type:
Overload Protection
Rack Height:
0U
Receptacle Detail:
21 x IEC 60320 C13/C15,3 x IEC 60320 C19/C21
Receptacle Type:
IEC 60320 C19/C21,IEC 60320 C13/C15
