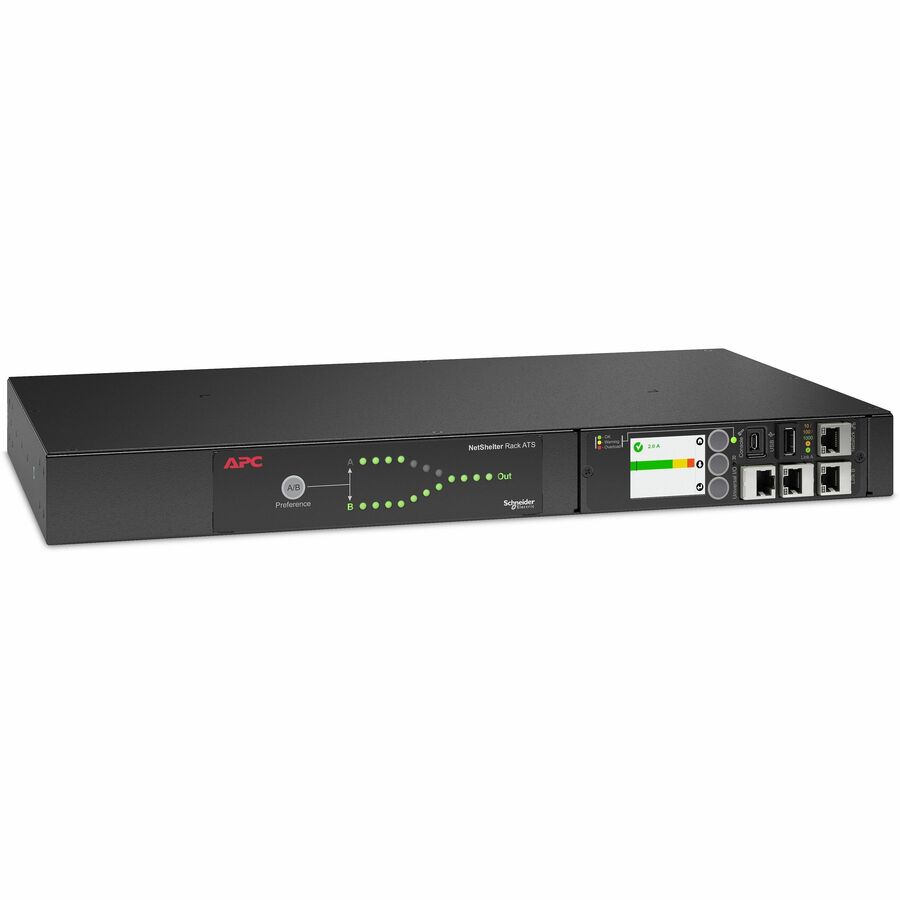

APC Netshelter Rack Automatic Transfer Switch, 1U, 20A, 120V, 2 L5-20 IN, 10 5-20R OUT, 50/60 Hz
SKU: AP4452A
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4452A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4452A is single phase 1U Rack ATS with 20A rated current, 120V rated voltage and 1920VA load capacity. For North America region, the Regulatory Derated Input Current is 16A. It comes with 2 NEMA L5-20P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Call for Availability
Regular price
$2,350
Shipping calculated at checkout
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4452A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4452A is single phase 1U Rack ATS with 20A rated current, 120V rated voltage and 1920VA load capacity. For North America region, the Regulatory Derated Input Current is 16A. It comes with 2 NEMA L5-20P inlet and 1 NEMA L6-30R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
- Minimized downtime disruption with Field-replaceable NMC
- Monitor temperature and humidity efficiently
- Dual input power cords to enhance uptime for critcal loads
- Connect and manage up to 32 Rack ATSs from one IP address
- Seamless switching with transfer time 10ms
- Supports APC Wi-fi USB device for cableless installation & setup
- Gigabit Ethernet support for faster Communication
- Remote management via Web UI, CLI, SNMP or EcoStruxure expert
- APC NMC3 integrated for enhanced cyber security
Additional Warranty Information:
2 years repair or replace
Color Family:
Black
Country of Origin:
Philippines
Current:
20 A
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Form Factor:
Rack-mountable
Input Voltage:
120 V AC
Limited Warranty:
2 Year
Manufacturer:
Schneider Electric SA
Manufacturer Website Address:
http://www.schneider-electric.com
Output Voltage:
120 V AC
Package Contents:
- NetShelter Automatic Transfer Switch
- Mounting Hardware
- Rack Mounting Brackets
- Serial Configuration Cable
Plug/Connector Type:
NEMA L5-20P 16A (2P + E)
Product Color:
Black
Product Line:
NetShelter
Product Type:
Automatic Transfer Switch
Rack Height:
1U
Receptacles:
10 x NEMA 5-20R
