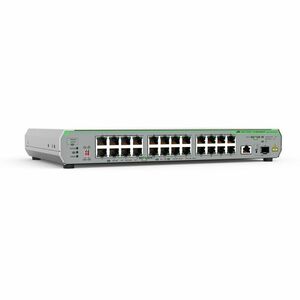

Allied Telesis CentreCOM GS910/26XST Ethernet Switch
SKU: AT-GS910/26XST-10
The Allied Telesis GS910/XST Series unmanaged switches offer flexible deployment with both copper and fiber 10 Gigabit uplinks. Ideal for server and storage connectivity, or for supporting high-bandwidth applications with Gigabit to the desktop, the GS910/XST Series enables high-performing small to medium business (SMB) networks.
Overview
The GS910/XST Series unmanaged switch effortlessly supports modern network applications, and provides a high value solution with simple plugand-play installation.
The GS910/XST Series feature 8, 16 or 24 x 10M/100M/1G ports with 1 x 100M/1/2.5/5/10G Multi-Gigabit copper uplink port and 1x 1/10 Gigabit SFP+ uplink port.
High flexibility
As well as the Gigabit access ports, the GS910/XST Series offer flexible deployment with both copper and fiber uplink options running at up to 10Gbps.
To support legacy network cabling, the copper uplink can run at 2.5G and 5G Multi-Gigabit speeds to maximize both performance and efficient use of building infrastructure.
Loop protection
The GS910/XST Series provide network loop detection by periodically sending Loop Detection Frames (LDF). If a loop is detected, the switch will automatically block the offending port, to stop broadcast storms from affecting network performance and disrupting user access to online resources and applications. Once the loop is resolved, the port is unblocked.
Energy reduction
The GS910/XST Series switches are eco-friendly, supporting IEEE 802.3az Energy Efficiency Ethernet (EEE).
When EEE is enabled, power consumption is reduced on ports with low activity. Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost of Ownership (TCO) to the user, as the device costs less to run, and features improved reliability.
DIP switches

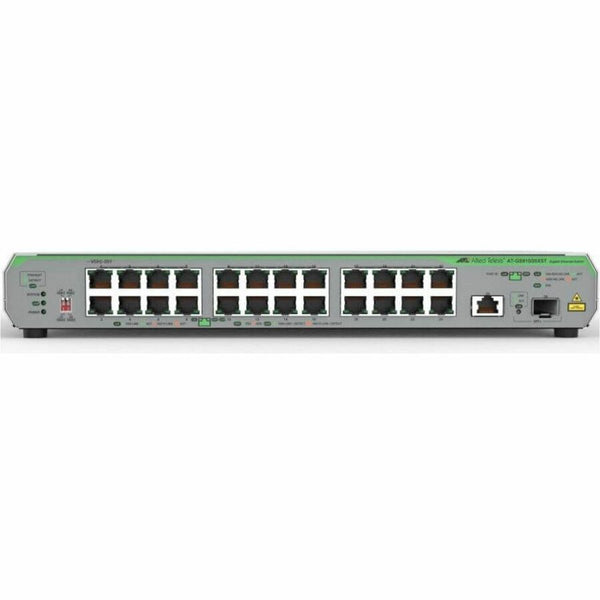

The GS910/XST Series have a set of DIP switches on the front panel, which simplify configuration by allowing users to easily enable or disable features such as Loop Guard and Energy Efficient Ethernet.
Simple deployment
The GS910/XST Series switches are fanless, providing silent operation suitable for use in open work areas. A robust steel chassis guarantees high endurance, and simple plug-and-play installation ensures easy deployment.
Overview
The GS910/XST Series unmanaged switch effortlessly supports modern network applications, and provides a high value solution with simple plugand-play installation.
The GS910/XST Series feature 8, 16 or 24 x 10M/100M/1G ports with 1 x 100M/1/2.5/5/10G Multi-Gigabit copper uplink port and 1x 1/10 Gigabit SFP+ uplink port.
High flexibility
As well as the Gigabit access ports, the GS910/XST Series offer flexible deployment with both copper and fiber uplink options running at up to 10Gbps.
To support legacy network cabling, the copper uplink can run at 2.5G and 5G Multi-Gigabit speeds to maximize both performance and efficient use of building infrastructure.
Loop protection
The GS910/XST Series provide network loop detection by periodically sending Loop Detection Frames (LDF). If a loop is detected, the switch will automatically block the offending port, to stop broadcast storms from affecting network performance and disrupting user access to online resources and applications. Once the loop is resolved, the port is unblocked.
Energy reduction
The GS910/XST Series switches are eco-friendly, supporting IEEE 802.3az Energy Efficiency Ethernet (EEE).
When EEE is enabled, power consumption is reduced on ports with low activity. Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost of Ownership (TCO) to the user, as the device costs less to run, and features improved reliability.
DIP switches
The GS910/XST Series have a set of DIP switches on the front panel, which simplify configuration by allowing users to easily enable or disable features such as Loop Guard and Energy Efficient Ethernet.
Simple deployment
The GS910/XST Series switches are fanless, providing silent operation suitable for use in open work areas. A robust steel chassis guarantees high endurance, and simple plug-and-play installation ensures easy deployment.
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 25 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Call for Availability
Regular price
$985.55
Sale price
$1,114
On Sale
Shipping calculated at checkout
The Allied Telesis GS910/XST Series unmanaged switches offer flexible deployment with both copper and fiber 10 Gigabit uplinks. Ideal for server and storage connectivity, or for supporting high-bandwidth applications with Gigabit to the desktop, the GS910/XST Series enables high-performing small to medium business (SMB) networks.
Overview
The GS910/XST Series unmanaged switch effortlessly supports modern network applications, and provides a high value solution with simple plugand-play installation.
The GS910/XST Series feature 8, 16 or 24 x 10M/100M/1G ports with 1 x 100M/1/2.5/5/10G Multi-Gigabit copper uplink port and 1x 1/10 Gigabit SFP+ uplink port.
High flexibility
As well as the Gigabit access ports, the GS910/XST Series offer flexible deployment with both copper and fiber uplink options running at up to 10Gbps.
To support legacy network cabling, the copper uplink can run at 2.5G and 5G Multi-Gigabit speeds to maximize both performance and efficient use of building infrastructure.
Loop protection
The GS910/XST Series provide network loop detection by periodically sending Loop Detection Frames (LDF). If a loop is detected, the switch will automatically block the offending port, to stop broadcast storms from affecting network performance and disrupting user access to online resources and applications. Once the loop is resolved, the port is unblocked.
Energy reduction
The GS910/XST Series switches are eco-friendly, supporting IEEE 802.3az Energy Efficiency Ethernet (EEE).
When EEE is enabled, power consumption is reduced on ports with low activity. Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost of Ownership (TCO) to the user, as the device costs less to run, and features improved reliability.
DIP switches
The GS910/XST Series have a set of DIP switches on the front panel, which simplify configuration by allowing users to easily enable or disable features such as Loop Guard and Energy Efficient Ethernet.
Simple deployment
The GS910/XST Series switches are fanless, providing silent operation suitable for use in open work areas. A robust steel chassis guarantees high endurance, and simple plug-and-play installation ensures easy deployment.
Overview
The GS910/XST Series unmanaged switch effortlessly supports modern network applications, and provides a high value solution with simple plugand-play installation.
The GS910/XST Series feature 8, 16 or 24 x 10M/100M/1G ports with 1 x 100M/1/2.5/5/10G Multi-Gigabit copper uplink port and 1x 1/10 Gigabit SFP+ uplink port.
High flexibility
As well as the Gigabit access ports, the GS910/XST Series offer flexible deployment with both copper and fiber uplink options running at up to 10Gbps.
To support legacy network cabling, the copper uplink can run at 2.5G and 5G Multi-Gigabit speeds to maximize both performance and efficient use of building infrastructure.
Loop protection
The GS910/XST Series provide network loop detection by periodically sending Loop Detection Frames (LDF). If a loop is detected, the switch will automatically block the offending port, to stop broadcast storms from affecting network performance and disrupting user access to online resources and applications. Once the loop is resolved, the port is unblocked.
Energy reduction
The GS910/XST Series switches are eco-friendly, supporting IEEE 802.3az Energy Efficiency Ethernet (EEE).
When EEE is enabled, power consumption is reduced on ports with low activity. Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost of Ownership (TCO) to the user, as the device costs less to run, and features improved reliability.
DIP switches
The GS910/XST Series have a set of DIP switches on the front panel, which simplify configuration by allowing users to easily enable or disable features such as Loop Guard and Energy Efficient Ethernet.
Simple deployment
The GS910/XST Series switches are fanless, providing silent operation suitable for use in open work areas. A robust steel chassis guarantees high endurance, and simple plug-and-play installation ensures easy deployment.
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 25 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet,10 Gigabit Ethernet
Expansion Slot Type:
SFP+
Form Factor:
Wall Mountable,Rack-mountable,Desktop
Input Voltage:
120 V AC,230 V AC
Layer Supported:
2
Manageable:
No
Manufacturer:
Allied Telesis, Inc
Manufacturer Website Address:
http://www.alliedtelesis.com
Media Type Supported:
Twisted Pair,Optical Fiber
Modular:
Yes
Networking Standards:
IEEE 802.3az,IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3bz
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-T,10GBase-X,10GBase-T
Number of Power Supplies Installed:
1
Number of SFP+ Slots:
1
Port/Expansion Slot Details:
24 x Gigabit Ethernet Network,1 x 10 Gigabit Ethernet Network,1 x 10 Gigabit Ethernet Expansion Slot
Power Source:
Power Supply
Product Line:
CentreCOM
Product Model:
GS910/26XST
Product Series:
GS910/XST
Product Type:
Ethernet Switch
Total Number of Expansion Slots:
1.0
Total Number of Network Ports:
25
Uplink Port:
Yes
