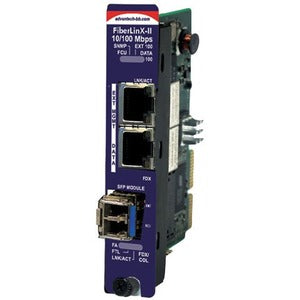

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series
SKU: IMC-762-SFP
The IMC-760 series of intelligent media converters connect a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting, including OAM (operation, administration, and management). Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a cost-effective solution.
The SNMP software, iView2 , allows for remoteconfiguration and alerts administrators to any potential problems on the long-haul fiber run, providing vital information on link conditions and reporting data on traffic statistics. With iView2 , the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.
The SNMP software, iView2 , allows for remoteconfiguration and alerts administrators to any potential problems on the long-haul fiber run, providing vital information on link conditions and reporting data on traffic statistics. With iView2 , the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.
- SNMP manageable
- OAM IEEE802.3ag/ah (operation, administration, and management)
- Supports per-port, bi-directional bandwidth control
- Supports powerful LinkLoss, FiberAlert and Loopback troubleshooting functions
- All management traffic remains isolated from the remote LAN
- The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
Call for Availability
Regular price
$331.12
Sale price
$518.70
On Sale
Shipping calculated at checkout
The IMC-760 series of intelligent media converters connect a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting, including OAM (operation, administration, and management). Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a cost-effective solution.
The SNMP software, iView2 , allows for remoteconfiguration and alerts administrators to any potential problems on the long-haul fiber run, providing vital information on link conditions and reporting data on traffic statistics. With iView2 , the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.
The SNMP software, iView2 , allows for remoteconfiguration and alerts administrators to any potential problems on the long-haul fiber run, providing vital information on link conditions and reporting data on traffic statistics. With iView2 , the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.
- SNMP manageable
- OAM IEEE802.3ag/ah (operation, administration, and management)
- Supports per-port, bi-directional bandwidth control
- Supports powerful LinkLoss, FiberAlert and Loopback troubleshooting functions
- All management traffic remains isolated from the remote LAN
- The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Fast Ethernet
Expansion Slot Type:
SFP
Form Factor:
Hot-swappable
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Media Type Supported:
Optical Fiber,Twisted Pair
Network (RJ-45):
Yes
Network Technology:
10/100Base-T,10/100Base-X
Number of Network (RJ-45) Ports:
1
Number of SFP Slots:
1
Product Series:
IMC-760
Product Type:
Transceiver/Media Converter
Total Number of Expansion Slots:
1
Total Number of Ports:
2
