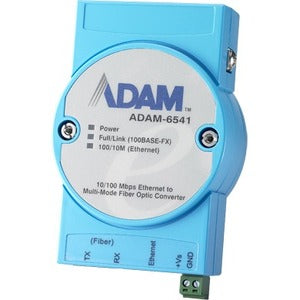

Advantech Ethernet to Multi-mode SC Type Fiber Optic Converter
SKU: ADAM-6541-AE
ADAM-6541 is designed to convert Ethernet networks to fiber networks. It does so by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmission capability. Therefore, ADAM-6541 is an ideal solution for "fiber to building" applications at central offices or local sites.
ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps) automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly.
ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from 10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps) automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly.
ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from 10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Expand your network capabilities with this 2 transceiver/media converter
- With 100Base-FX technology get up to 100Mbps data transfer rate over twisted pair cable
- Fits neatly into a panel and allows you to keep your cables tidy and organized
Call for Availability
Regular price
$161.59
Sale price
$194.71
On Sale
Shipping calculated at checkout
ADAM-6541 is designed to convert Ethernet networks to fiber networks. It does so by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmission capability. Therefore, ADAM-6541 is an ideal solution for "fiber to building" applications at central offices or local sites.
ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps) automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly.
ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from 10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps) automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly.
ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from 10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Expand your network capabilities with this 2 transceiver/media converter
- With 100Base-FX technology get up to 100Mbps data transfer rate over twisted pair cable
- Fits neatly into a panel and allows you to keep your cables tidy and organized
DVI:
No
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Fast Ethernet
Fiber Mode Supported:
Multi-mode
Form Factor:
Rail-mountable,Wall Mountable,Panel-mountable
Management Port:
No
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Maximum Distance Supported:
2 km
Media Type Supported:
Optical Fiber,Twisted Pair
Network (RJ-45):
Yes
Network Technology:
100Base-FX,10/100Base-TX
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
Packaged Quantity:
1
Power Source:
AC Adapter
Product Model:
ADAM-6541
Product Type:
Transceiver/Media Converter
SC Port Type:
Duplex
Total Number of Ports:
2
USB:
No
