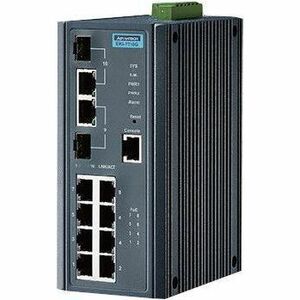

Advantech EKI-7710G-2CPI Ethernet Switch
SKU: EKI-7710G-2CPI-AU
Advantech EKI-7710G-2CPI Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 12.10 W Power Consumption - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty
- 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit copper/SFP combo ports
- SFP socket for easy and flexible fiber expansion
- Redundancy: X-Ring Pro (ultra-high-speed recovery time,
- IXM function enables fast deployment
- Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- NEMA TS2 for traffic control
- EN50121-4 approval for railway trackside deployment
- Dual 24 ~ 48 VDC power input and 1 x relay output
- Wide operating temperature range of -40 ~ 75°C (EKI-7710G-2CPI)
Call for Availability
Regular price
$1,062.85
Sale price
$1,280.72
On Sale
Shipping calculated at checkout
Advantech EKI-7710G-2CPI Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 12.10 W Power Consumption - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty
- 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit copper/SFP combo ports
- SFP socket for easy and flexible fiber expansion
- Redundancy: X-Ring Pro (ultra-high-speed recovery time,
- IXM function enables fast deployment
- Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- NEMA TS2 for traffic control
- EN50121-4 approval for railway trackside deployment
- Dual 24 ~ 48 VDC power input and 1 x relay output
- Wide operating temperature range of -40 ~ 75°C (EKI-7710G-2CPI)
Country of Origin:
Taiwan
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet
Expansion Slot Type:
SFP
Features:
IP30
Form Factor:
DIN Rail Mountable,Wall Mountable
Input Voltage:
24 V DC,48 V DC
Layer Supported:
2
Limited Warranty:
5 Year
Manageable:
Yes
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Maximum Data Transfer Rate:
125 MB/s
Media Type Supported:
Twisted Pair,Optical Fiber
Modular:
Yes
Networking Standards:
IEEE 802.1p,IEEE 802.3ad,IEEE 802.1x,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3at,IEEE 802.3af
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-T,1000Base-X
Number of SFP Slots:
2
Plug/Connector Type:
Terminal Block
PoE (RJ-45) Port:
Yes
Port/Expansion Slot Details:
8 x 10/100/1000BASE-T Gigabit Ethernet PoE+ Network Port,2 x Gigabit Ethernet TP/SFP Combo Port
Power Consumption:
12.10 W
Power Source:
DC,PoE+
Product Material:
Metal
Product Model:
EKI-7710G-2CPI
Product Series:
EKI-7710G
Product Type:
Ethernet Switch
Total Number of Expansion Slots:
2
Total Number of Network Ports:
8
