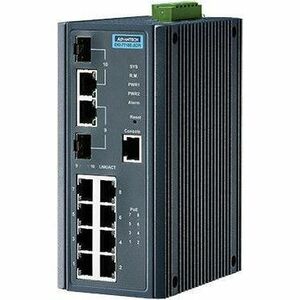

Advantech EKI-7710E-2CPI Ethernet Switch
SKU: EKI-7710E-2CPI-AU
The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
- 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- -40 ~ 75°C wide-range operating temperature (EKI-7710E-2CPI)
- Dual 24~48 V DC power input and 1 relay output
Call for Availability
Regular price
$909.61
Sale price
$1,096.08
On Sale
Shipping calculated at checkout
The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
- 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- -40 ~ 75°C wide-range operating temperature (EKI-7710E-2CPI)
- Dual 24~48 V DC power input and 1 relay output
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Ethernet Technology:
Fast Ethernet,Gigabit Ethernet
Expansion Slot Type:
SFP (mini-GBIC)
Form Factor:
DIN Rail Mountable,Wall Mountable
Input Voltage:
24 V DC,48 V DC
Layer Supported:
2
Limited Warranty:
5 Year
Manageable:
Yes
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Media Type Supported:
Twisted Pair,Optical Fiber
Modular:
Yes
Networking Standards:
IEEE 802.1p,IEEE 802.3ad,IEEE 802.1x,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3af,IEEE 802.3at
Network (RJ-45):
Yes
Network Technology:
10/100Base-TX,1000Base-X,1000Base-T
Number of SFP Slots:
2
Plug/Connector Type:
Terminal Block (6 Wire)
PoE (RJ-45) Port:
Yes
Port/Expansion Slot Details:
8 x Fast Ethernet PoE+,2 x Gigabit Ethernet TP/SFP Combo
Power Consumption:
12.10 W
Power Source:
DC
Product Material:
Metal
Product Model:
EKI-7710E-2CPI
Product Type:
Ethernet Switch
Shared SFP Slot:
Yes
Total Number of Expansion Slots:
2.0
Total Number of Network Ports:
10
