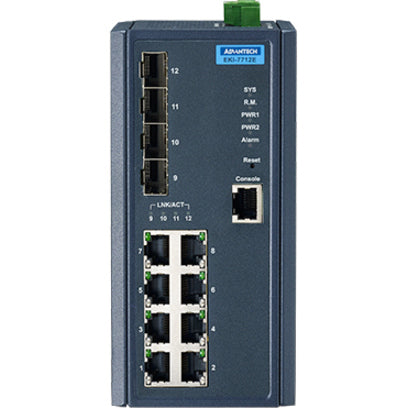

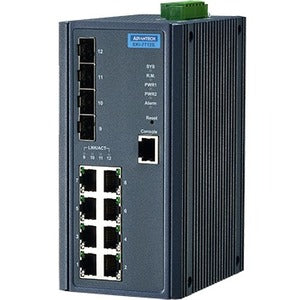

Advantech 8FE+4G SFP Managed Ethernet Switch
SKU: EKI-7712E-4F-AE
EKI-7712E-4F/4FI supports 8 Fast Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7712G-4FI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic application and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
- Dual 12~48 VDC power input and 1 relay output
- -40 ~ 75°C wide-range operating temperature (EKI-7712E-4FI)
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- IXM function enables fast deployment
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- 8 Fast Ethernet ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
Call for Availability
Regular price
$932.79
Sale price
$1,124
On Sale
Shipping calculated at checkout
EKI-7712E-4F/4FI supports 8 Fast Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7712G-4FI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic application and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
- Dual 12~48 VDC power input and 1 relay output
- -40 ~ 75°C wide-range operating temperature (EKI-7712E-4FI)
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- IXM function enables fast deployment
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- 8 Fast Ethernet ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Fast Ethernet,Gigabit Ethernet
Expansion Slot Type:
SFP (mini-GBIC)
Form Factor:
Wall Mountable,DIN Rail Mountable
Layer Supported:
2
Limited Warranty:
5 Year
Manageable:
Yes
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Media Type Supported:
Optical Fiber,Twisted Pair
Modular:
Yes
Network Technology:
10/100Base-TX,1000Base-X
Number of SFP Slots:
4
Port/Expansion Slot Details:
8 x Fast Ethernet Network,4 x Gigabit Ethernet Expansion Slot
Product Model:
EKI-7712E-4F
Product Series:
EKI-7712E
Product Type:
Ethernet Switch
Shared SFP Slot:
No
Total Number of Expansion Slots:
4.0
Total Number of Network Ports:
8
