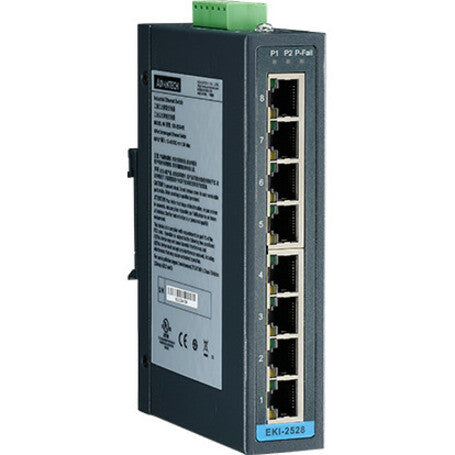

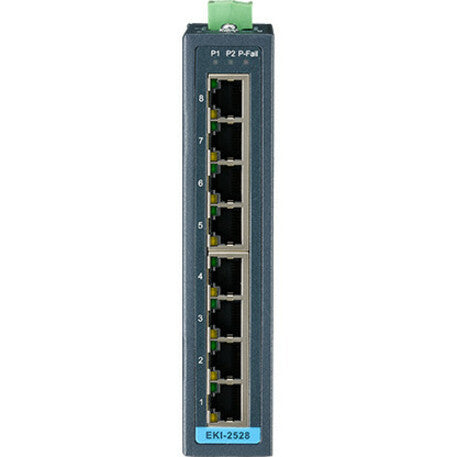

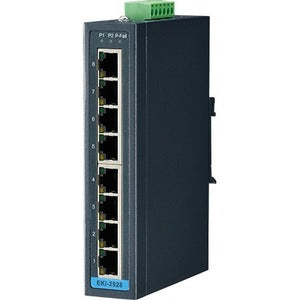

Advantech 8-Port Ethernet Switch
SKU: EKI-2528-BE
The EKI-2525/2528 supports a Fast Ethernet solution. The power is a +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
- Supports wide operating temperatures from -40 to 75°C (EKI-2525I/EKI-2528I
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
- Provides broadcast storm protection
- Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
Call for Availability
Regular price
$136.93
Sale price
$165
On Sale
Shipping calculated at checkout
The EKI-2525/2528 supports a Fast Ethernet solution. The power is a +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
- Supports wide operating temperatures from -40 to 75°C (EKI-2525I/EKI-2528I
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
- Provides broadcast storm protection
- Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Ethernet Technology:
Fast Ethernet
Form Factor:
Wall Mountable,DIN Rail Mountable
Layer Supported:
2
Limited Warranty:
5 Year
Manageable:
No
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Media Type Supported:
Twisted Pair
Modular:
No
Network Technology:
10/100Base-TX
Port/Expansion Slot Details:
8 x Fast Ethernet Network
Product Model:
EKI-2528
Product Series:
EKI-2000
Product Type:
Ethernet Switch
Stack Port:
No
Total Number of Network Ports:
8
Uplink Port:
No
