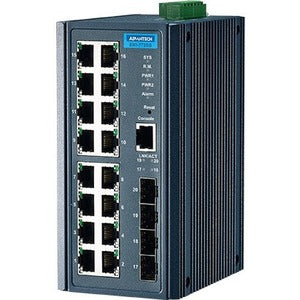

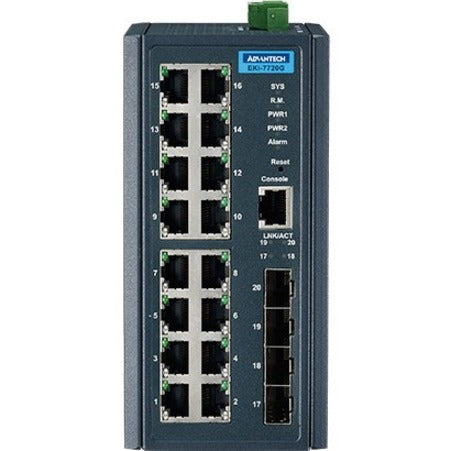

Advantech 16GE+4SFP Port Gigabit Managed Redundant Industrial Switch
SKU: EKI-7720G-4FI-AE
EKI-7720G-4F/4FI supports 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advan-tech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7720G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7720G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7720G-4FI).
- Dual 12~48 VDC power input and 1 relay output
- EN50121-4 approval for Railway trackside deployment
- -40 ~ 75°C wide-range operating temperature (EKI-7720G-4FI)
- NEMA TS2 for Traffic Control
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- 16 Gigabit Ethernet ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
Call for Availability
Regular price
$1,487.19
Sale price
$1,792.05
On Sale
Shipping calculated at checkout
EKI-7720G-4F/4FI supports 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advan-tech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7720G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7720G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7720G-4FI).
- Dual 12~48 VDC power input and 1 relay output
- EN50121-4 approval for Railway trackside deployment
- -40 ~ 75°C wide-range operating temperature (EKI-7720G-4FI)
- NEMA TS2 for Traffic Control
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- 16 Gigabit Ethernet ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet
Expansion Slot Type:
SFP (mini-GBIC)
Form Factor:
DIN Rail Mountable,Wall Mountable
Layer Supported:
2
Limited Warranty:
5 Year
Manageable:
Yes
Manufacturer:
Advantech Co., Ltd
Manufacturer Website Address:
http://www.advantech.com
Media Type Supported:
Twisted Pair,Optical Fiber
Modular:
Yes
Network Technology:
10/100/1000Base-TX
Number of SFP Slots:
4
Port/Expansion Slot Details:
16 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot
Power Source:
Power Supply
Product Model:
EKI-7720G-4FI
Product Series:
EKI-7720G
Product Type:
Ethernet Switch
Redundant Power Supply Supported:
Yes
Total Number of Expansion Slots:
4
Total Number of Network Ports:
16
