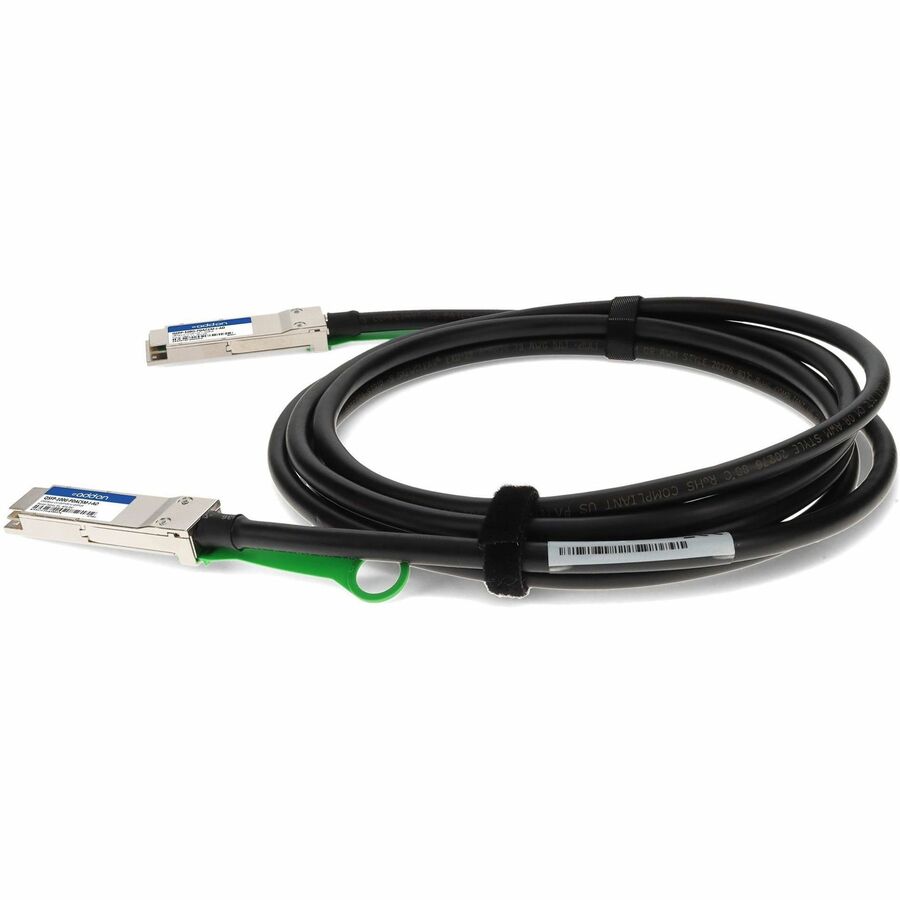

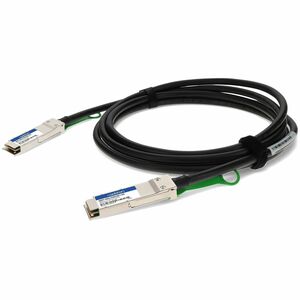

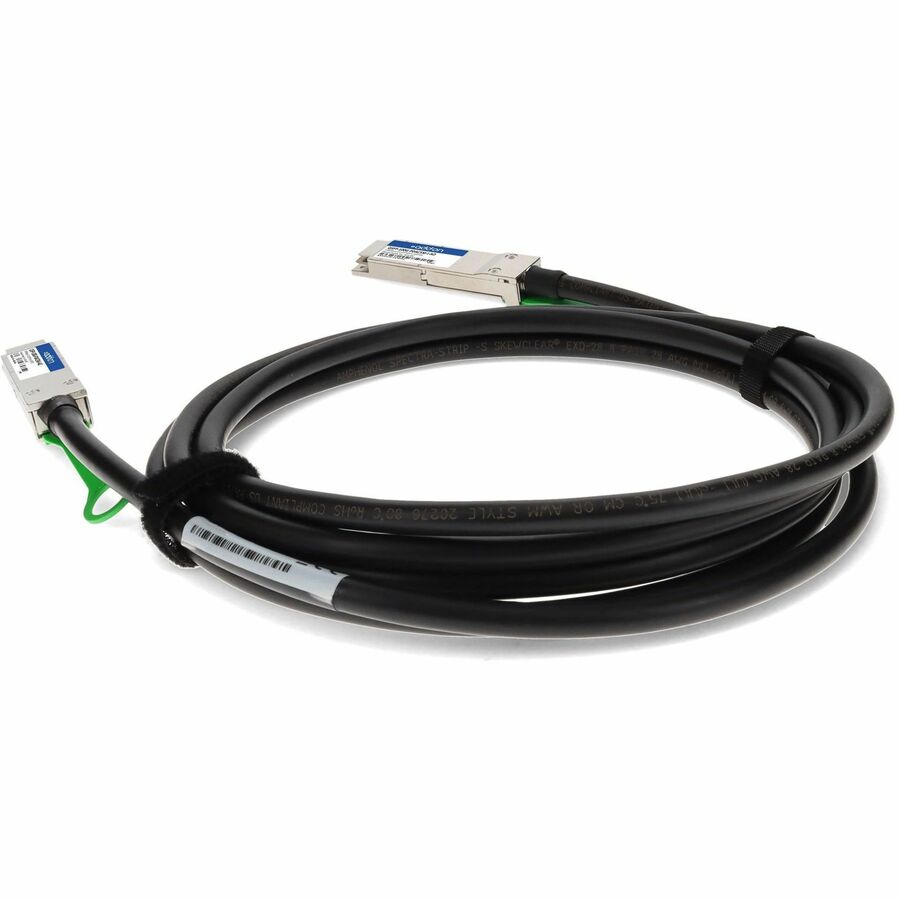

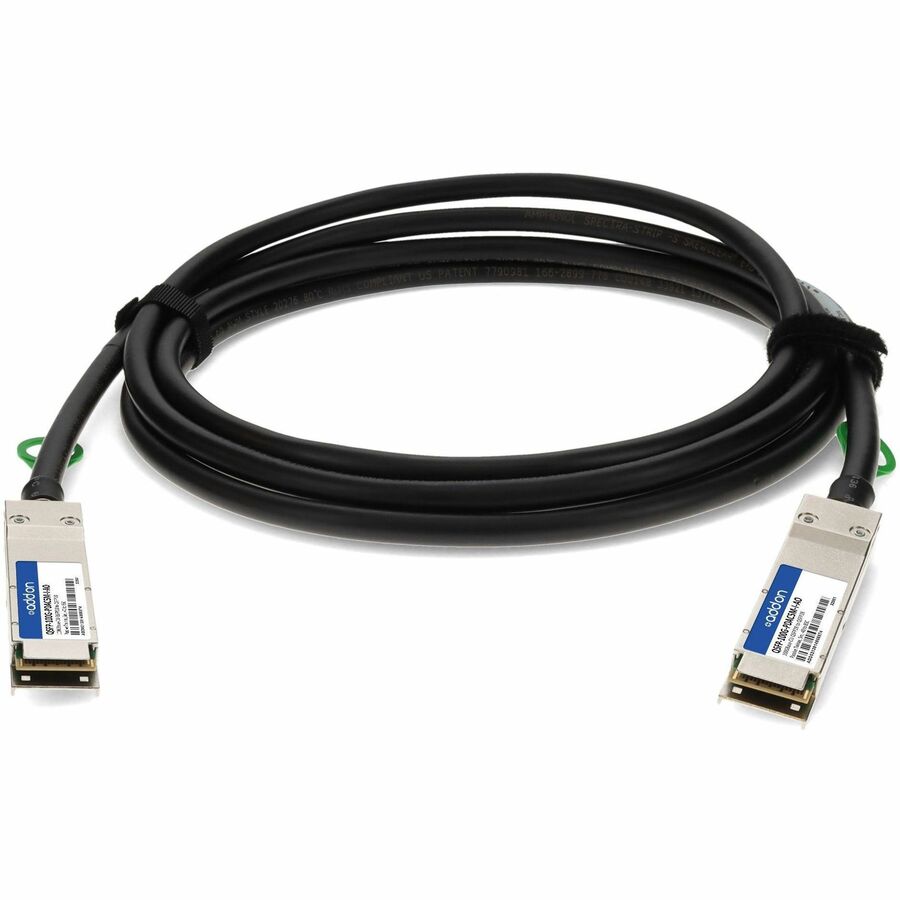

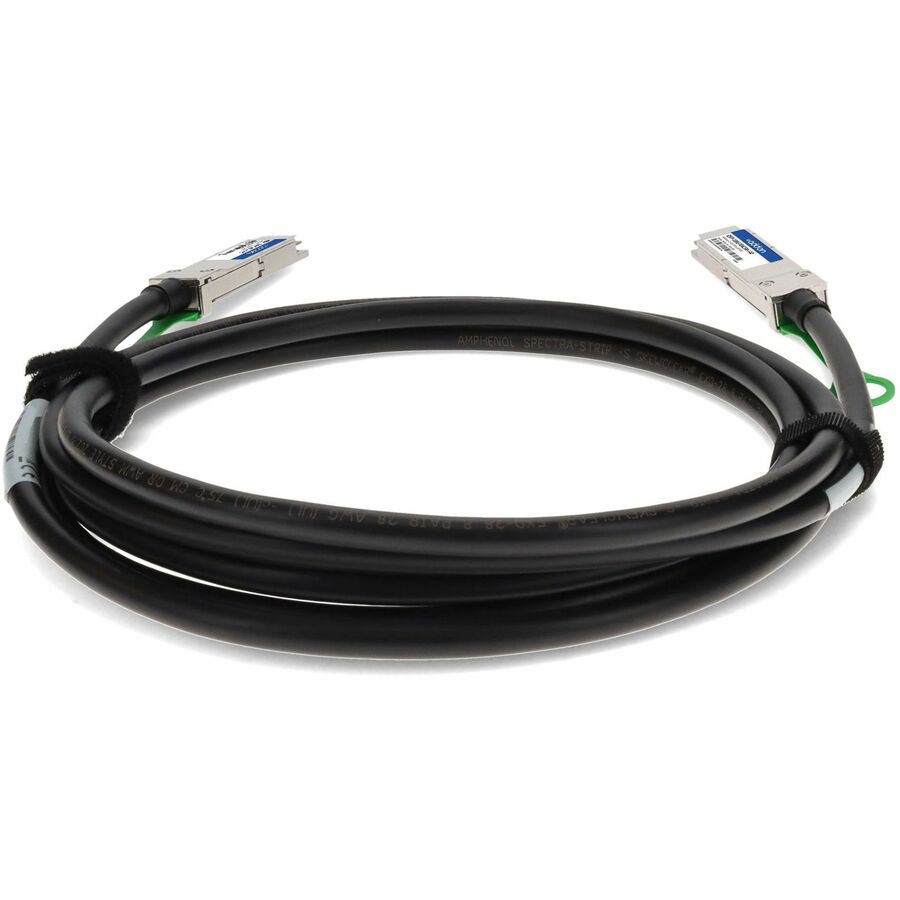

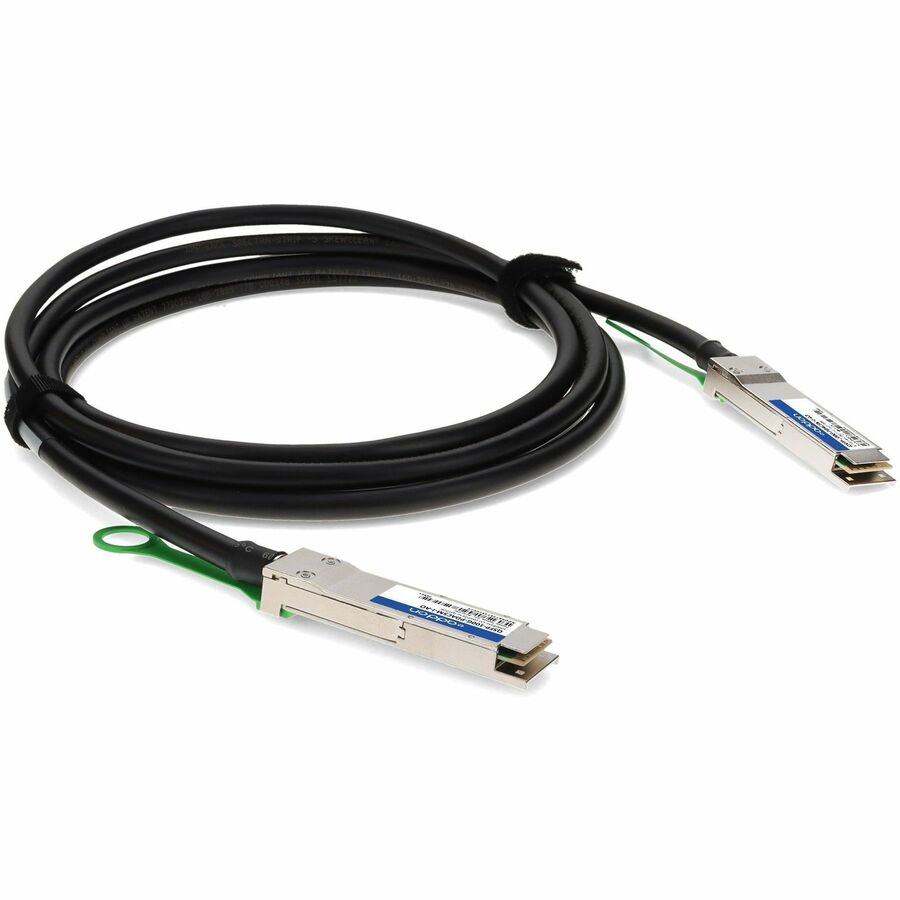

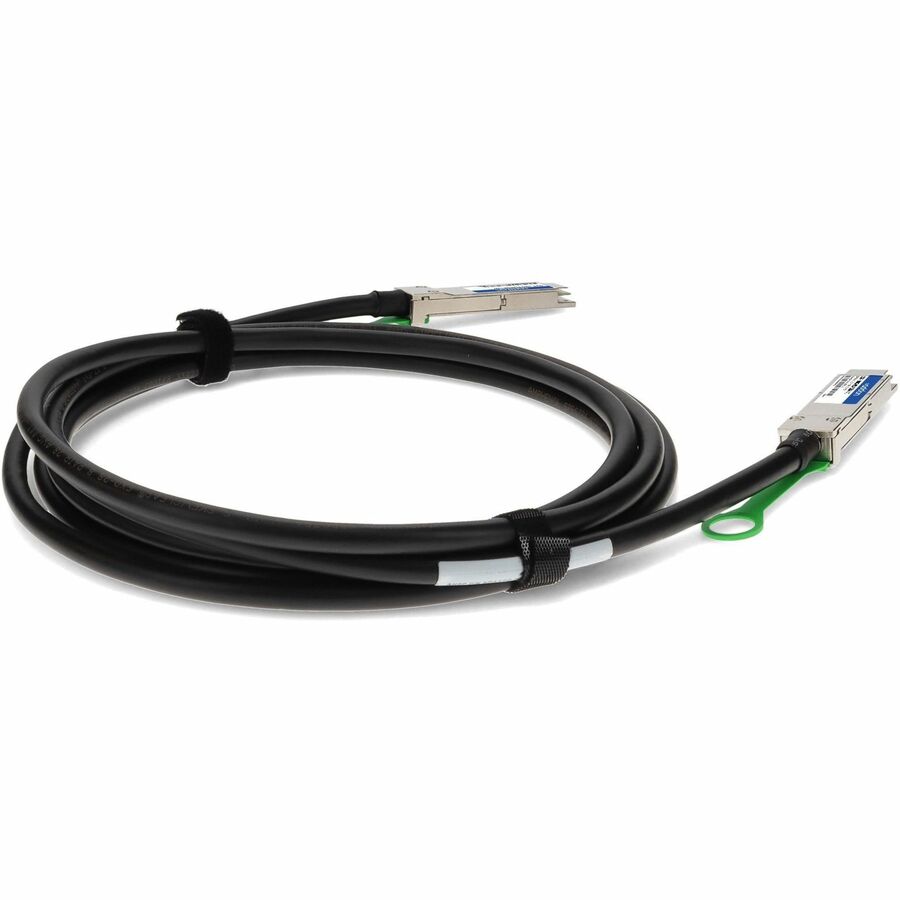

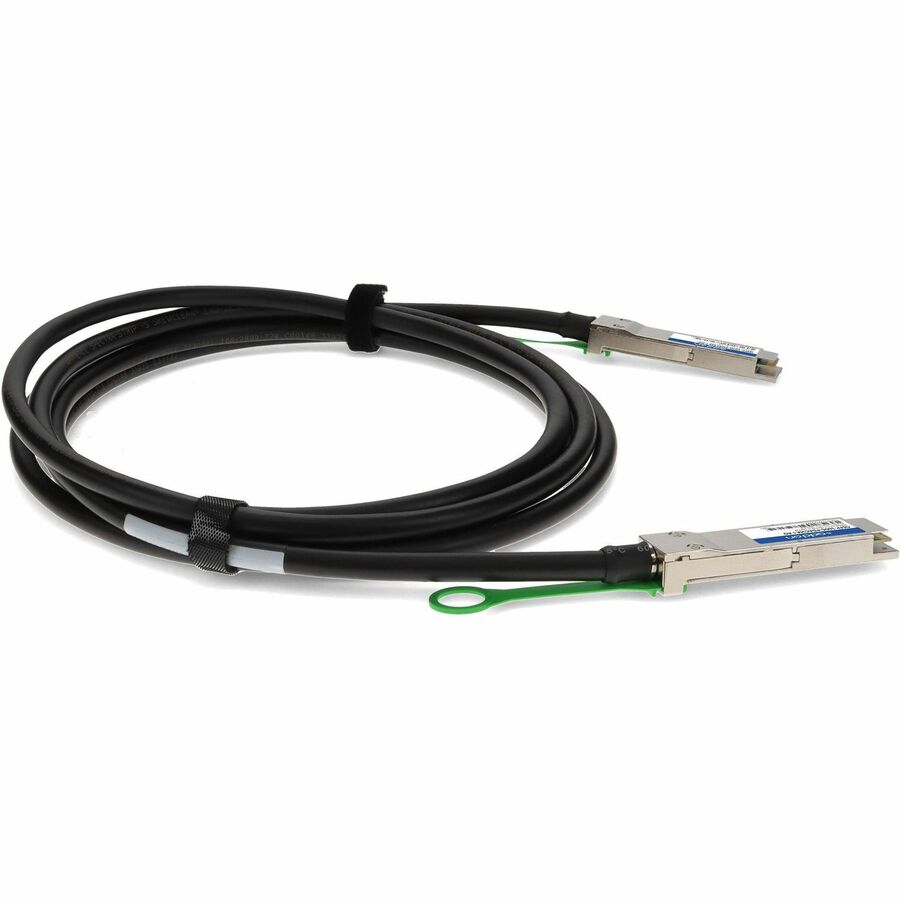

AddOn MSA and TAA Compliant 100GBase-CU QSFP28 to QSFP28 Direct Attach Cable (Passive Twinax, 5m, 26AWG, -40 to 85C)
SKU: QSFP-100G-PDAC5M-I-AO
This is an MSA compliant 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 5m. It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- QSFP28 conforms to the Small Form Factor SFF-8436
- 4-Channel Full-Duplex Passive Copper Cable Transceiver
- Support for multi-gigabit data rates: 16Gb/s - 25.78Gb/s (per channel)
- Maximum aggregate data rate: 100Gb/s (4x25.78Gb/s)
- IEEE 802.3bj 100GBase-CR4
- Copper link length up to 5m
- Power Supply: +3.3V
- Low crosstalk
- I2C based two-wire serial interface for EEPROM signature which can be customized
- Industrial Temperature -40 to +85 Celsius
Call for Availability
Regular price
$229.53
Sale price
$380
On Sale
Shipping calculated at checkout
This is an MSA compliant 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 5m. It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- QSFP28 conforms to the Small Form Factor SFF-8436
- 4-Channel Full-Duplex Passive Copper Cable Transceiver
- Support for multi-gigabit data rates: 16Gb/s - 25.78Gb/s (per channel)
- Maximum aggregate data rate: 100Gb/s (4x25.78Gb/s)
- IEEE 802.3bj 100GBase-CR4
- Copper link length up to 5m
- Power Supply: +3.3V
- Low crosstalk
- I2C based two-wire serial interface for EEPROM signature which can be customized
- Industrial Temperature -40 to +85 Celsius
American Wire Gauge:
26 AWG
Cable Length:
16.40 ft
Cable Type:
Twinaxial
Color Family:
Black
Connector on First End Details:
1 x QSFP28 Network
Connector on Second End Details:
1 x QSFP28 Network
Connector Type on First End:
QSFP28 Network
Connector Type on Second End:
QSFP28 Network
Data Transfer Rate:
100 Gbit/s
Device Supported:
Network Device,Transceiver
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
Passive,Crosstalk Protection,Lead-free,Bendable,Far-End Crosstalk (FEXT)
Jacket Type:
CL2
Limited Warranty:
Lifetime
Manufacturer:
AddOn
Manufacturer Website Address:
http://www.addoncomputer.com
Packaged Quantity:
1.0
Product Color:
Black
Product Material:
Copper
Product Type:
Network Cable
TAA Compliant:
Yes
