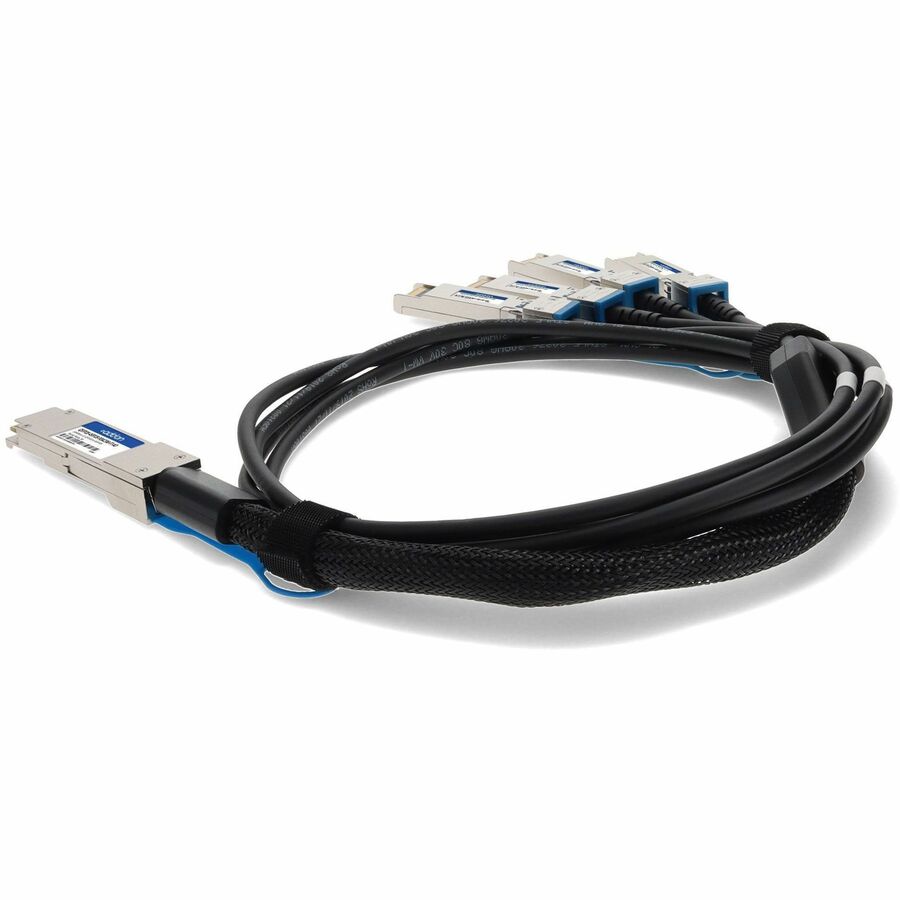

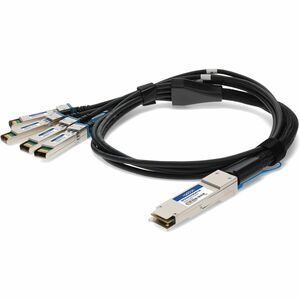

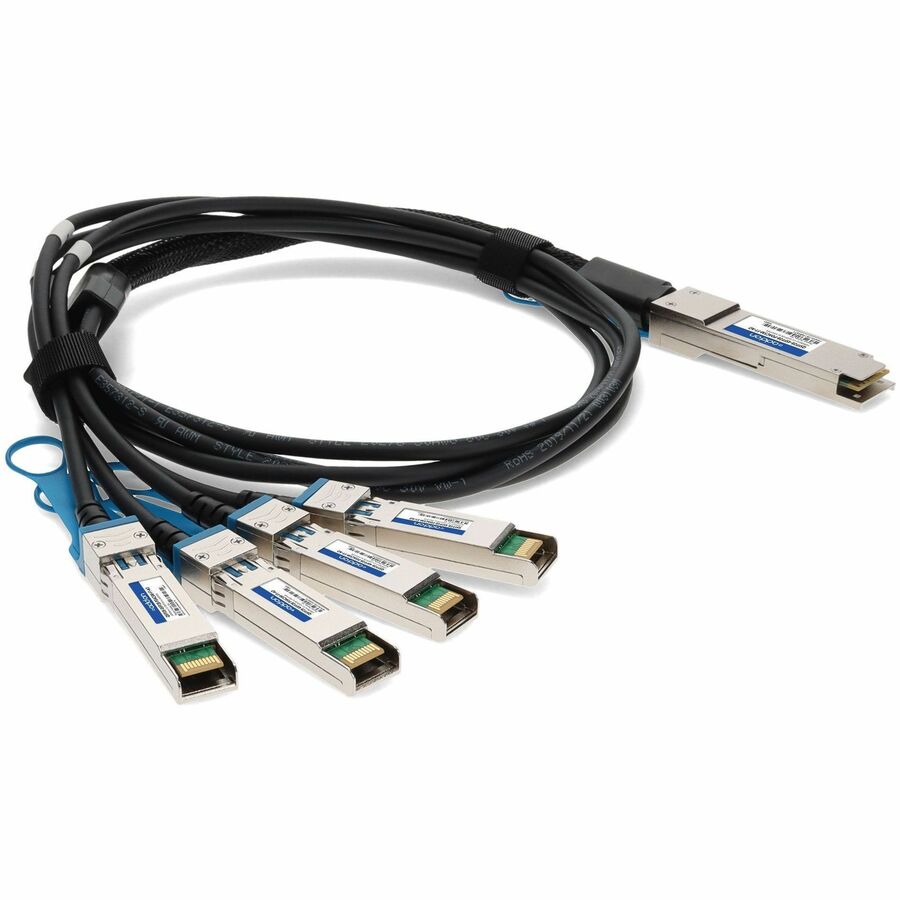

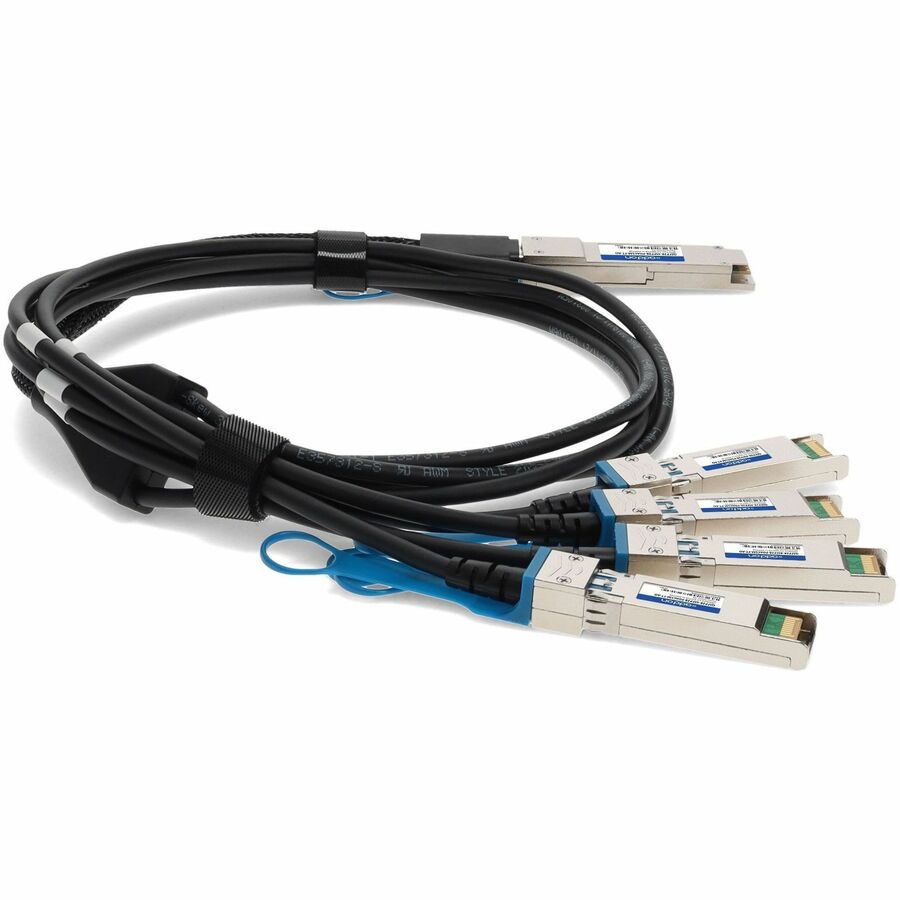

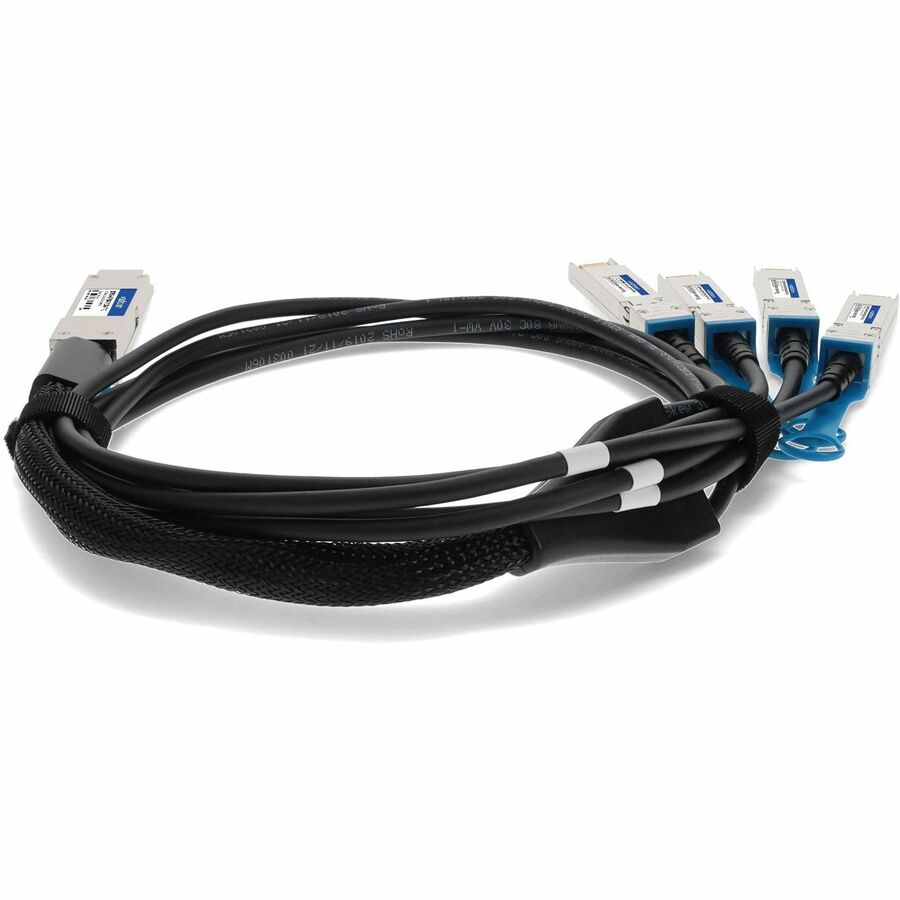

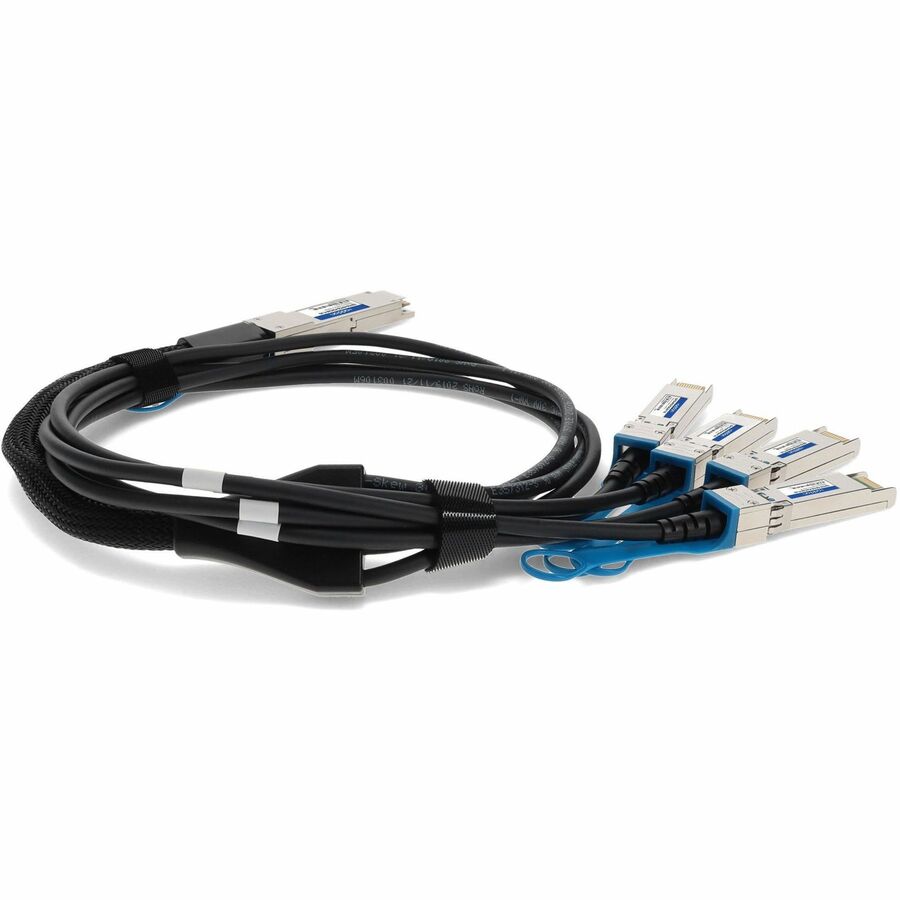

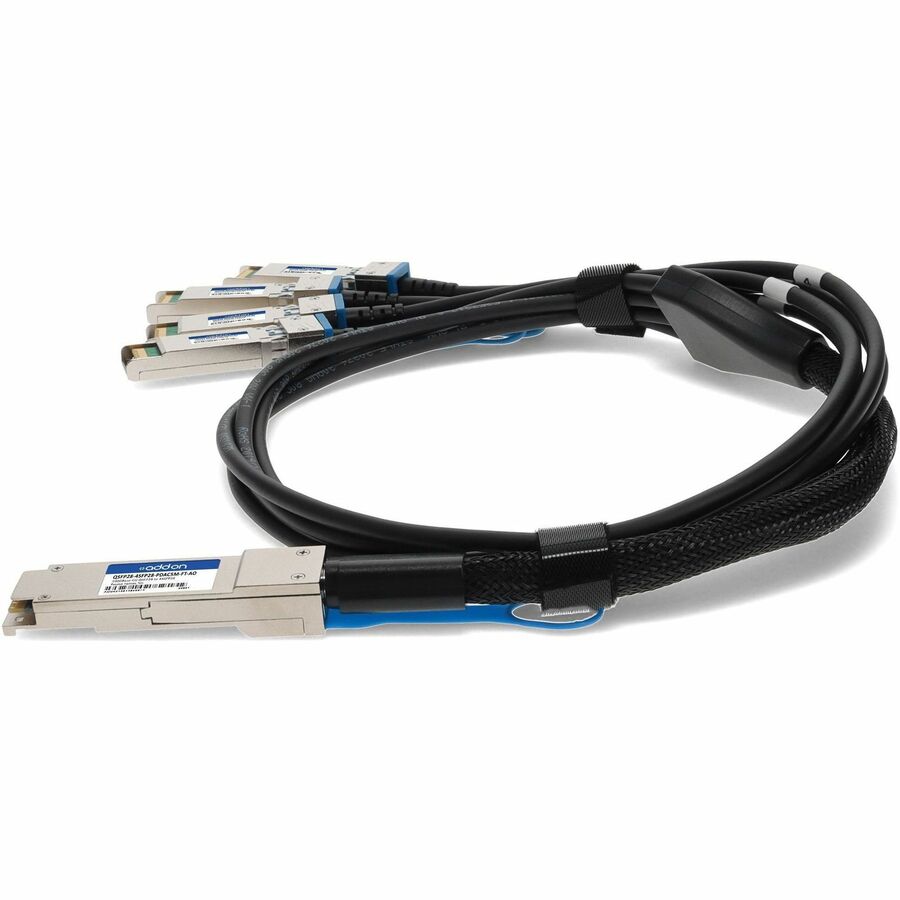

AddOn Fortinet® Compatible TAA Compliant 100GBase-CU QSFP28 to 4xSFP28 Direct Attach Cable (Passive Twinax, 5m)
SKU: QSFP28-4SFP28-PDAC5M-FT-AO
This is a Fortinet® compatible 100GBase-CU QSFP28 to 4xSFP28 direct attach cable that operates over passive copper with a maximum reach of 5.0m (16.4ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- QSFP28 End: Compliant with QSFP28 MSA specifications
- 4 independent duplex channels operating at 25Gbps
- SFP28 End: Compliant with SFP28 MSA specifications
- 100 Ohm differential impedance
- All-metal housing for superior EMI performance
- AC coupled inputs and outputs
- Operating temperature range: 0 to 70 Celsius
- Single power supply 3.3V, low power consumption
- RoHS Compliant and Lead Free
Call for Availability
Regular price
$301.96
Sale price
$500
On Sale
Shipping calculated at checkout
This is a Fortinet® compatible 100GBase-CU QSFP28 to 4xSFP28 direct attach cable that operates over passive copper with a maximum reach of 5.0m (16.4ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- QSFP28 End: Compliant with QSFP28 MSA specifications
- 4 independent duplex channels operating at 25Gbps
- SFP28 End: Compliant with SFP28 MSA specifications
- 100 Ohm differential impedance
- All-metal housing for superior EMI performance
- AC coupled inputs and outputs
- Operating temperature range: 0 to 70 Celsius
- Single power supply 3.3V, low power consumption
- RoHS Compliant and Lead Free
American Wire Gauge:
26 AWG
Cable Length:
16.40 ft
Cable Type:
Twinaxial
Connector Gender on First End:
Male
Connector Gender on Second End:
Male
Connector on First End Details:
1 x QSFP28 Network - Male
Connector on Second End Details:
4 x SFP28 Network - Male
Connector Type on First End:
QSFP28 Network - Male
Connector Type on Second End:
SFP28 Network - Male
Country of Origin:
United States/United Kingdom
Data Transfer Rate:
100 Gbit/s
Device Supported:
Network Device
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Features:
Passive,Lead-free,InfiniBand EDR,EMI Protection
Jacket Type:
VW-1
Limited Warranty:
Lifetime
Manufacturer:
AddOn
Manufacturer Website Address:
http://www.addoncomputer.com
Packaged Quantity:
1
Product Type:
Network Cable
TAA Compliant:
Yes
