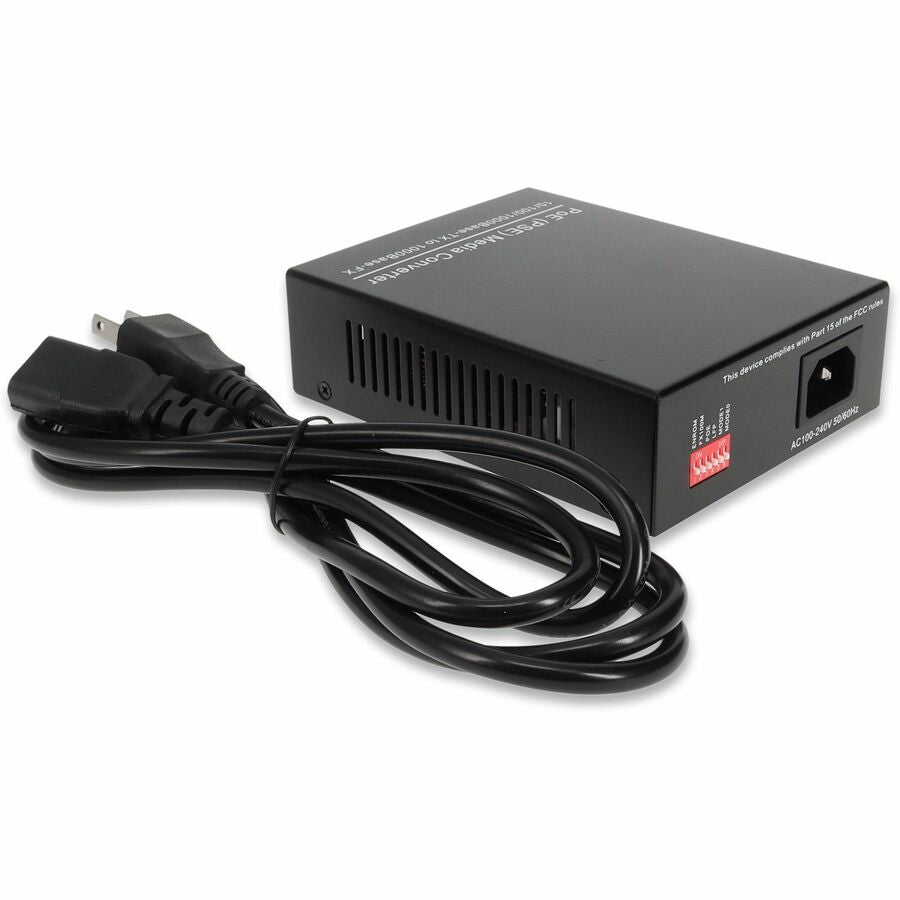

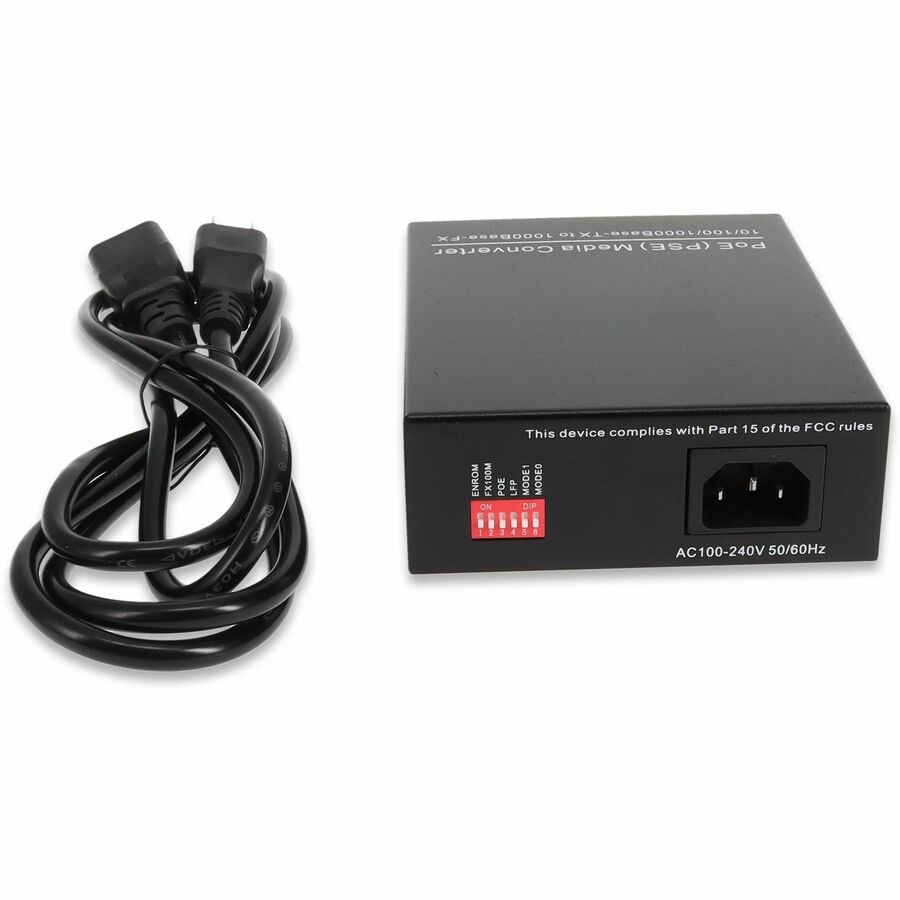

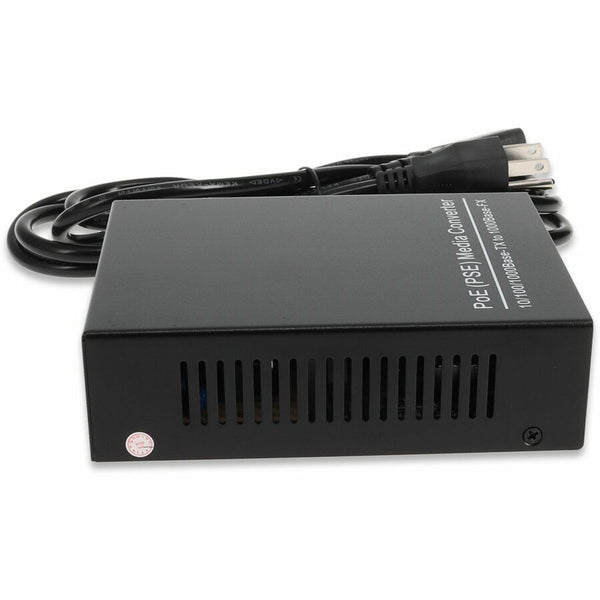

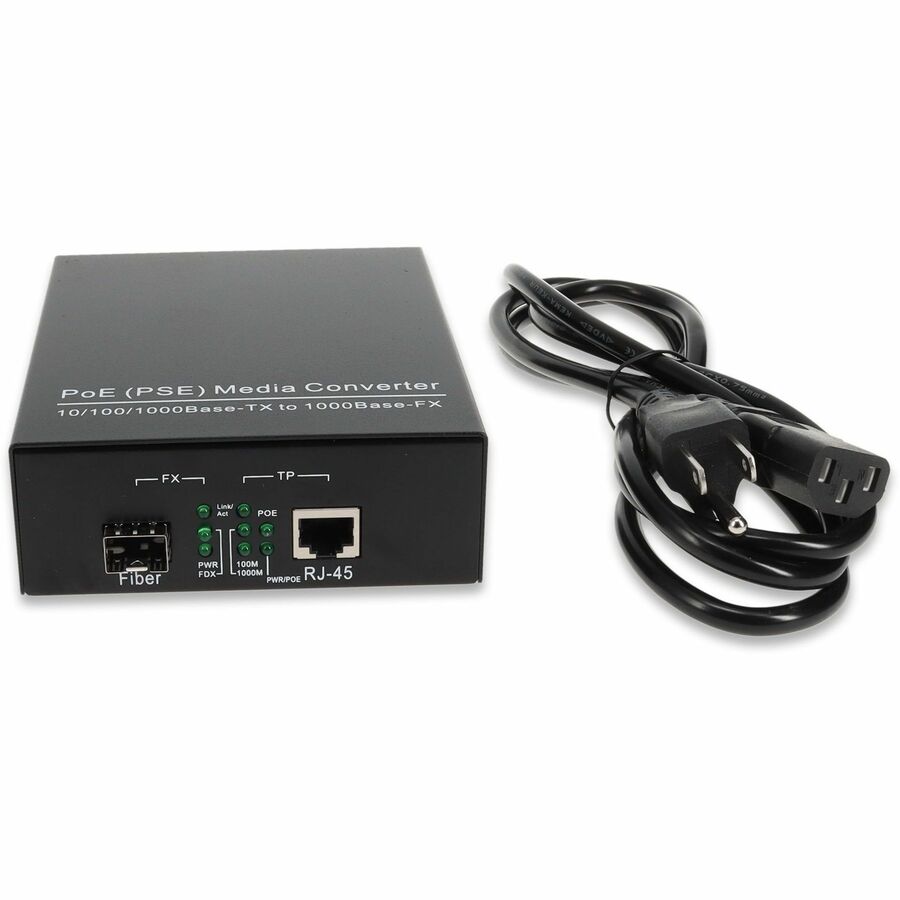

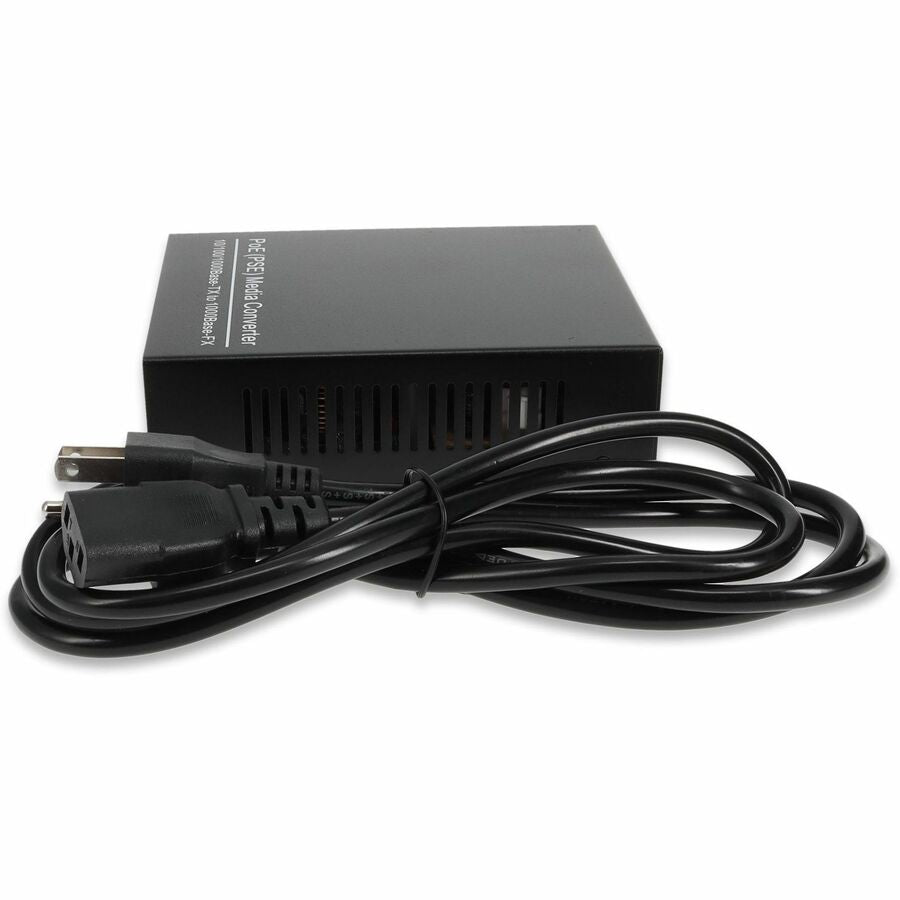

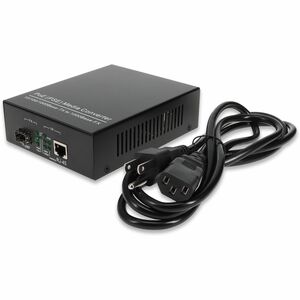

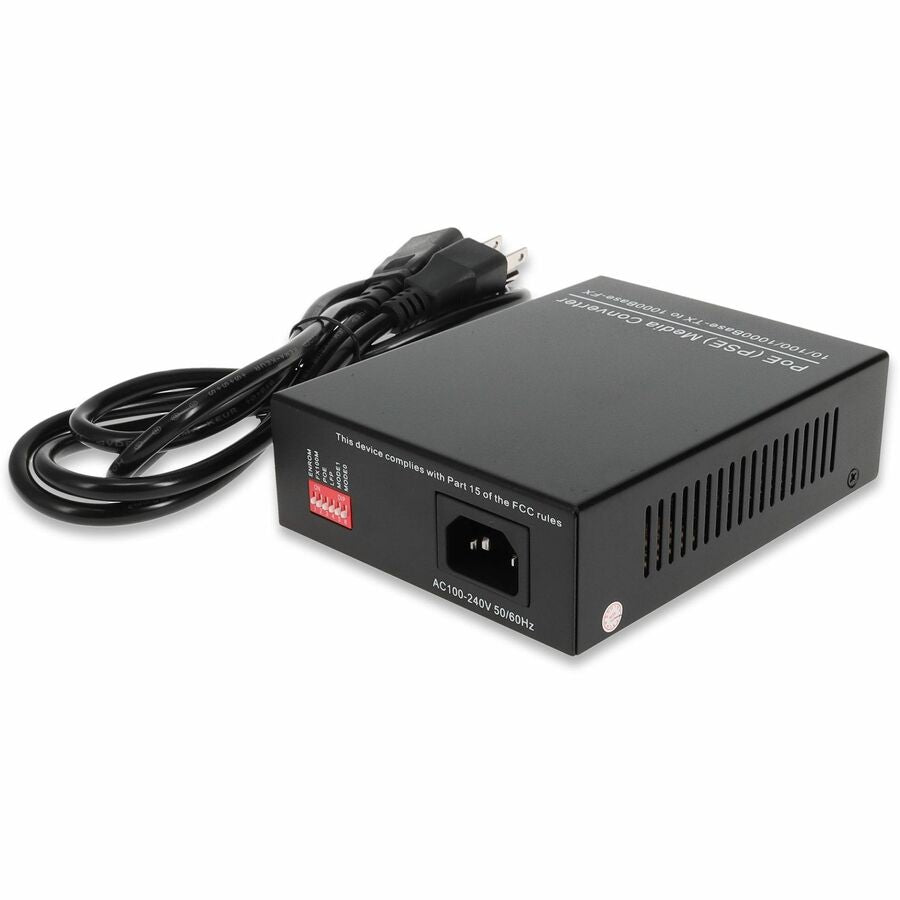

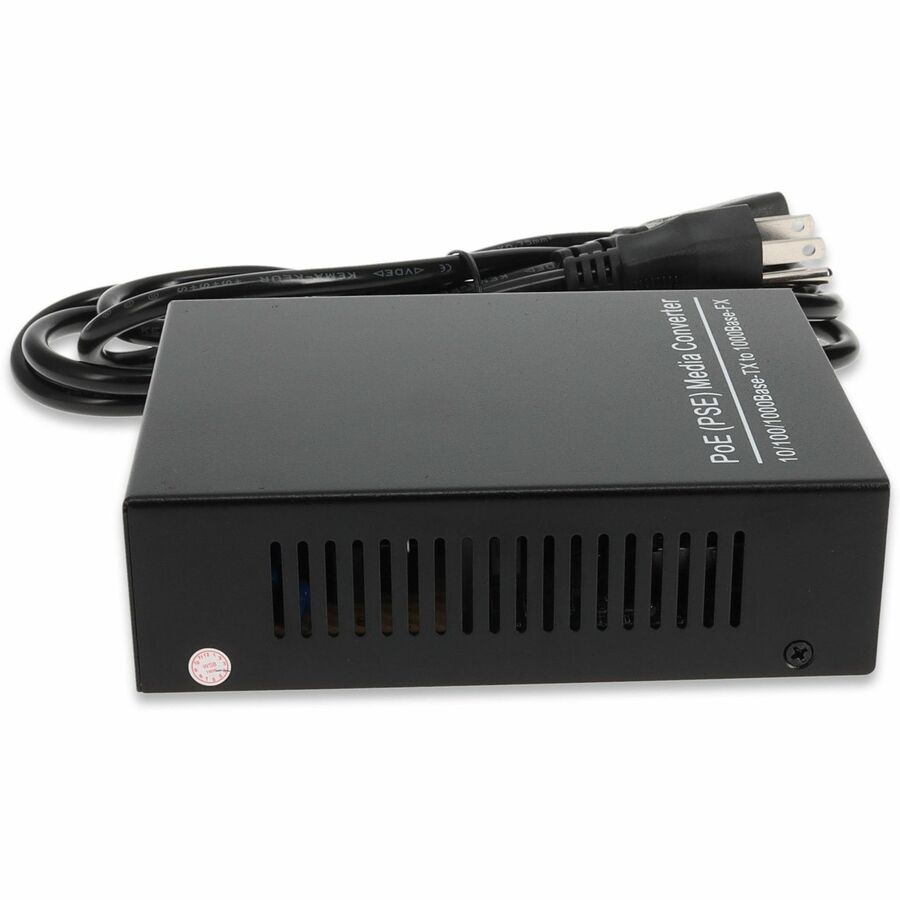

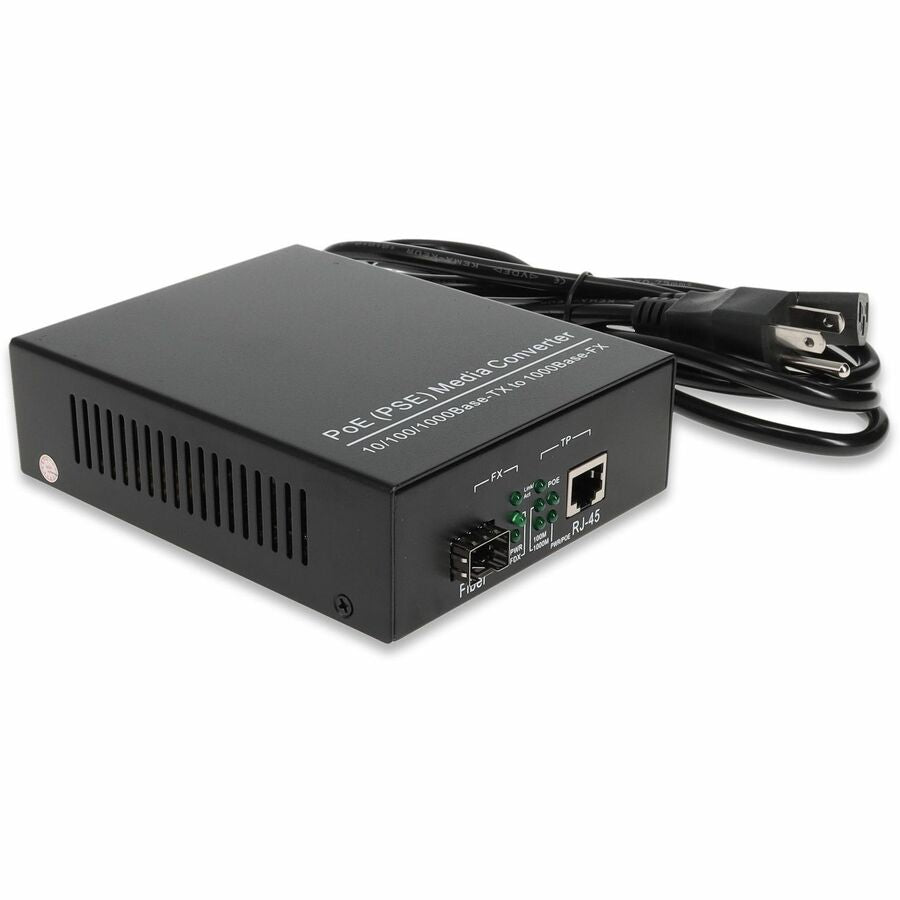

AddOn 10/100/1000Base-TX(RJ45) to 1000Base-SX(SC) MMF 850nm 550m POE Media Converter With EUR Standard Power Supply
SKU: ADD-GMCP-SX-5SC-ET
This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(SC) via a 850nm multi-mode fiber (MMF) SC connector, which allows distance reach up to 550m with EUR standard power supply. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a power sourcing equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. This converter has a European plug.
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100/1000Base-TX network technology, get fast transfer rate and reliable data connection
Call for Availability
Regular price
$185.13
Sale price
$300
On Sale
Shipping calculated at checkout
This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(SC) via a 850nm multi-mode fiber (MMF) SC connector, which allows distance reach up to 550m with EUR standard power supply. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a power sourcing equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. This converter has a European plug.
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Expand your network capabilities with this 2 transceiver/media converter
- With 10/100/1000Base-TX network technology, get fast transfer rate and reliable data connection
DVI:
No
Ethernet Technology:
Gigabit Ethernet
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
850 nm
Limited Warranty:
3 Year
Management Port:
No
Manufacturer:
AddOn
Manufacturer Website Address:
http://www.addoncomputer.com
Maximum Distance Supported:
0.55 km
Media Type Supported:
Optical Fiber,Twisted Pair
Network (RJ-45):
Yes
Network Technology:
10/100/1000Base-TX,1000Base-SX
Number of Network (RJ-45) Ports:
1
Number of PoE (RJ-45) Ports:
1
Number of SC Ports:
1
Packaged Quantity:
1
Package Contents:
- 10/100/1000Base-TX(RJ45) to 1000Base-SX(SC) MMF 850nm 550m POE Media Converter
- EUR Standard Power Supply
PoE Port Type:
PSE
Power Source:
AC
Product Type:
Transceiver/Media Converter
SC Port Type:
Duplex
TAA Compliant:
No
Total Number of Ports:
2
USB:
No
