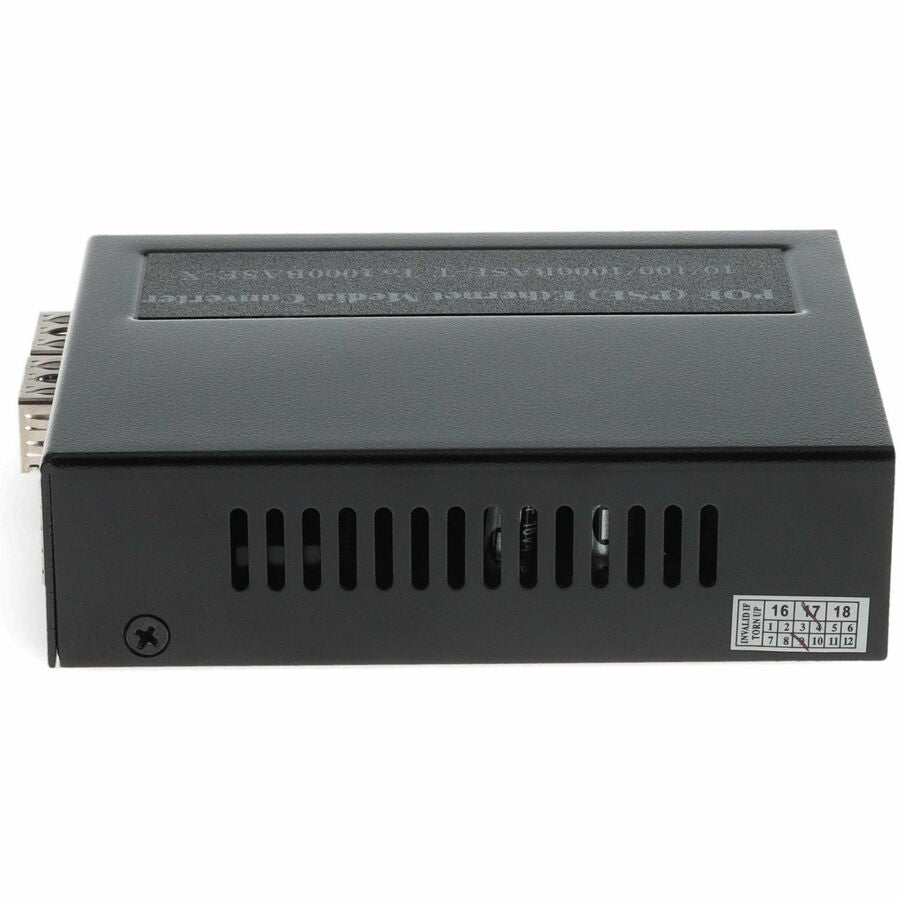

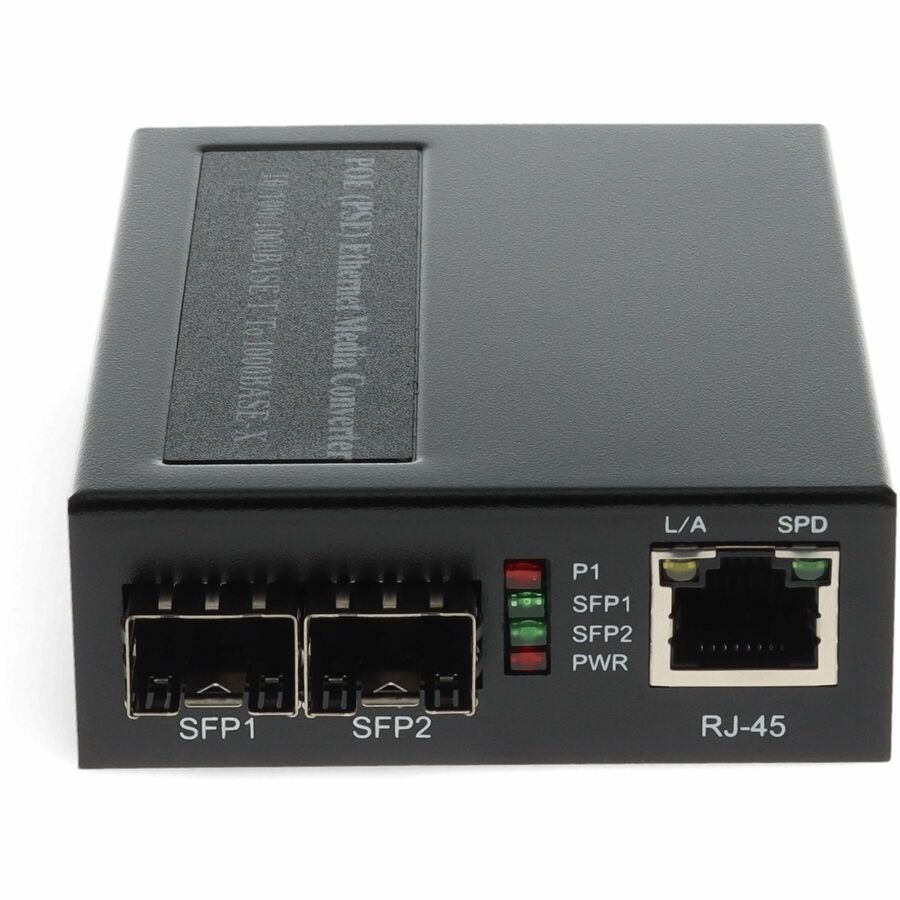

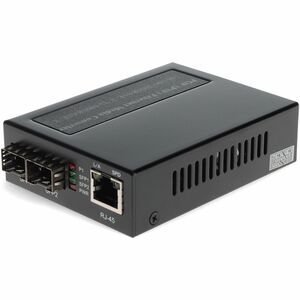

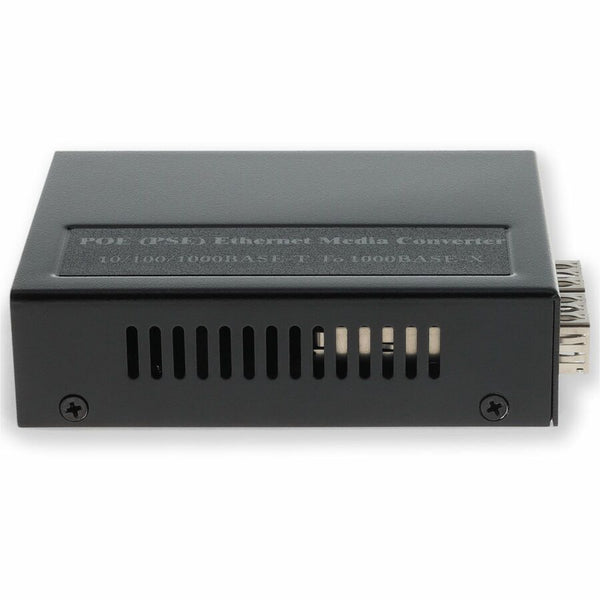

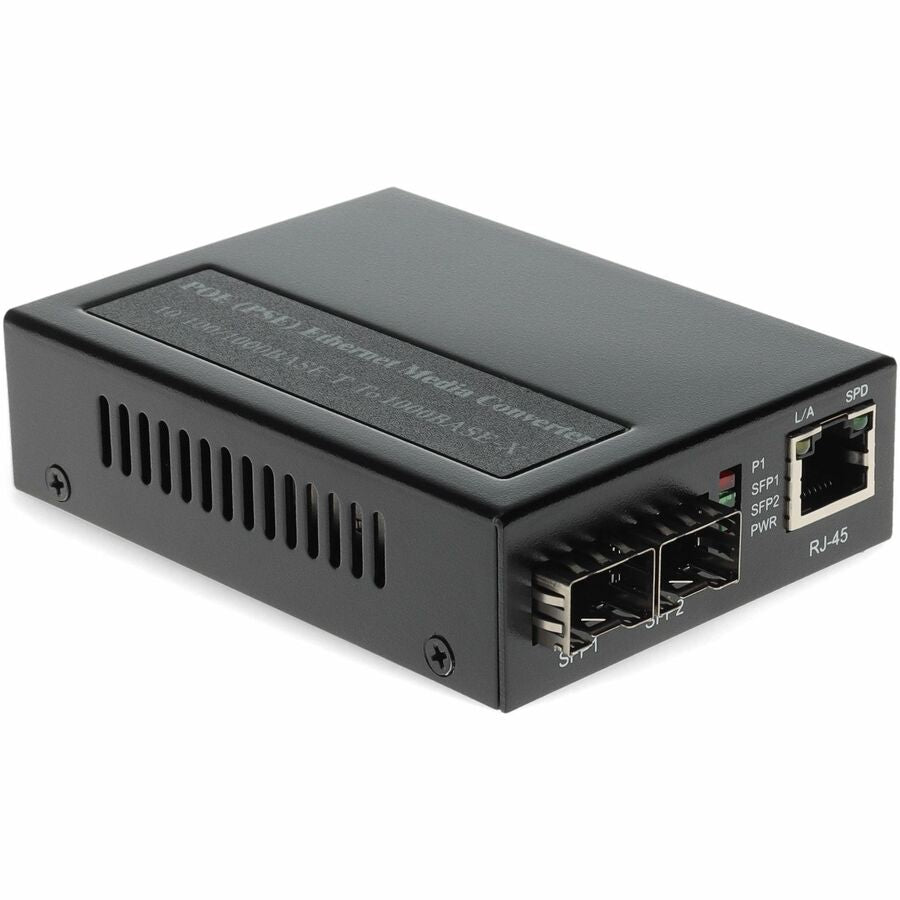

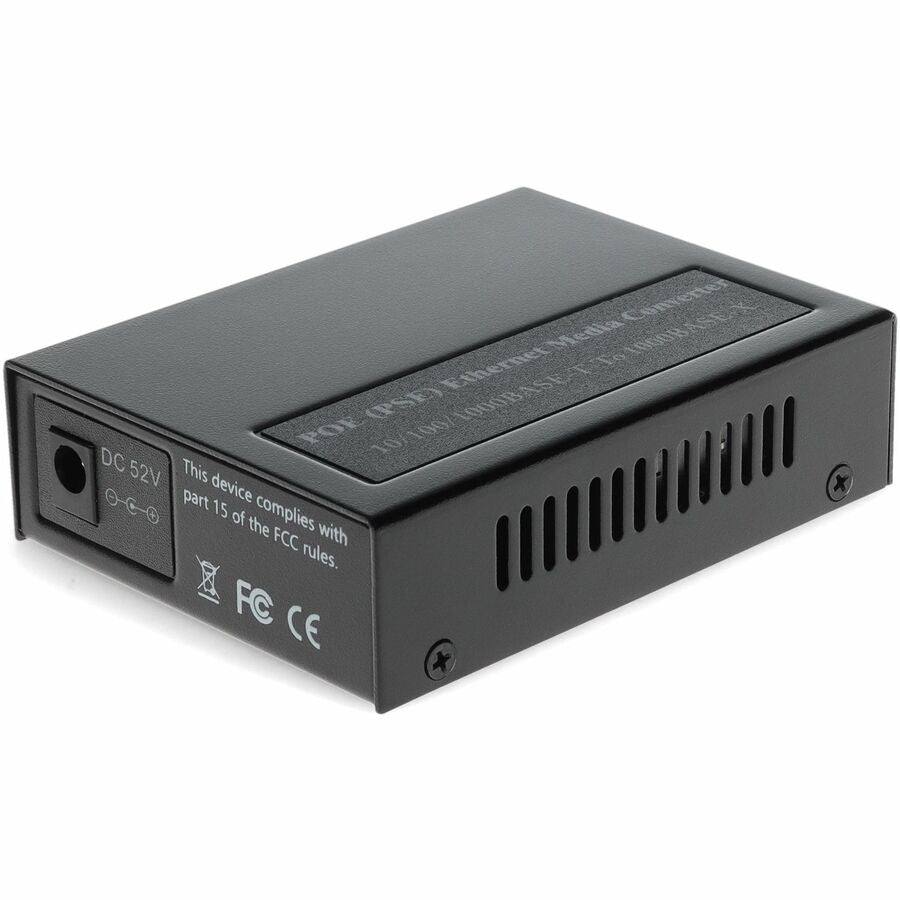

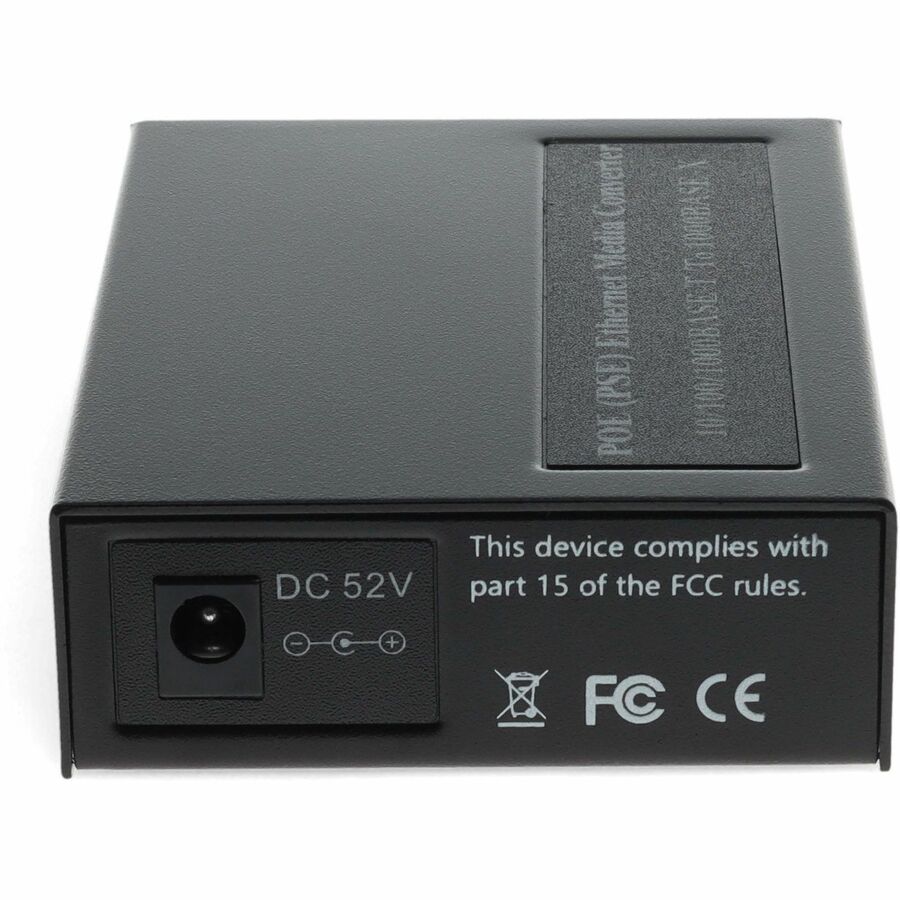

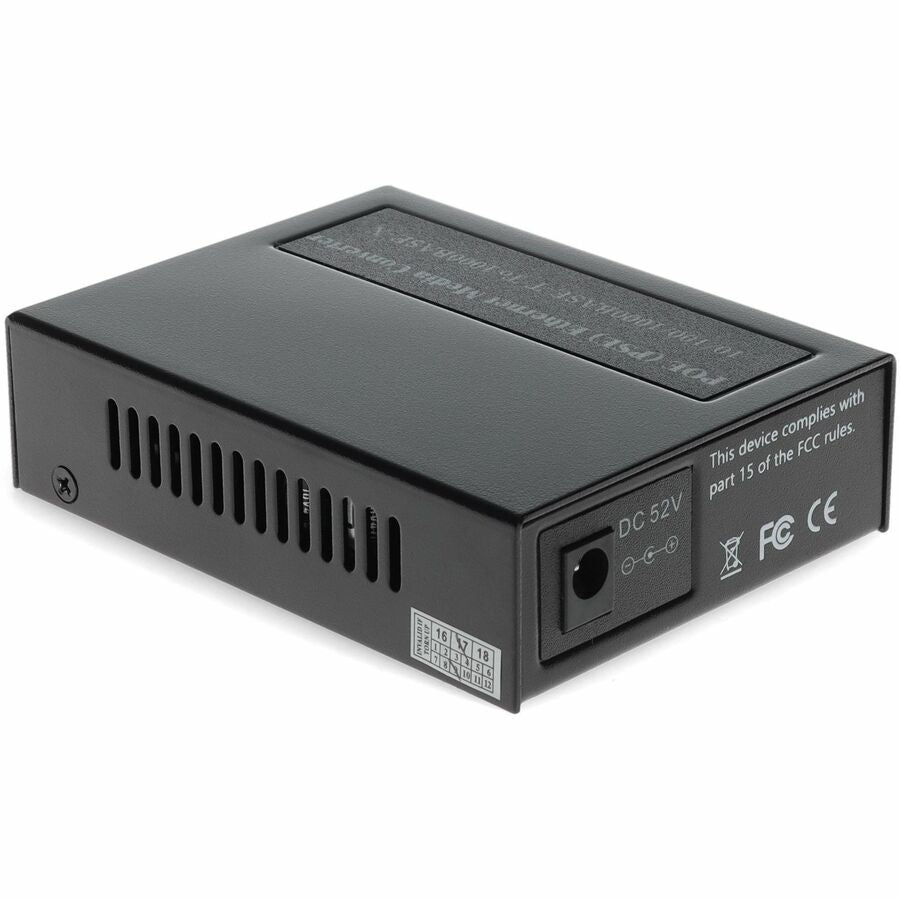

AddOn 10/100/1000Base-TX(RJ-45) to 2 Open SFP Port POE+ Media Converter
SKU: ADD-GMC-1RJ2SFP-POE+
This is a 3 port media converter that converts and supports one 10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from one 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. The 10/100/1000Mbps UTP RJ-45 port supports full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transferred over cable with 52V(typical) power supply, providing power to IEEE802.3at powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). All the four UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 30 watts (DC 52V/0.6A) power into CAT5e twisted-pair cable. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Expand your network capabilities with this 3 transceiver/media converter
- With 1000Base-X technology get up to 1000Mbps data transfer rate over twisted pair cable
Call for Availability
Regular price
$171.29
Sale price
$305.28
On Sale
Tax included
Shipping calculated at checkout
This is a 3 port media converter that converts and supports one 10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from one 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. The 10/100/1000Mbps UTP RJ-45 port supports full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). The PoE(PSE) ethernet switch is a Power Sourcing Equipment (PSE) which combines data transferred over cable with 52V(typical) power supply, providing power to IEEE802.3at powered device (PD) over CAT5e UTP cable (cable length up to 100 meters/330 feet). All the four UTP RJ-45 ports are organized to be PoE output port, and each PoE port can output up to 30 watts (DC 52V/0.6A) power into CAT5e twisted-pair cable. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Expand your network capabilities with this 3 transceiver/media converter
- With 1000Base-X technology get up to 1000Mbps data transfer rate over twisted pair cable
Ethernet Technology:
Gigabit Ethernet
Expansion Slot Type:
SFP
Fiber Mode Supported:
Multi-mode,Single-mode
Limited Warranty:
3 Year
Manufacturer:
AddOn
Manufacturer Website Address:
http://www.addoncomputer.com
Media Type Supported:
Optical Fiber,Twisted Pair
Network (RJ-45):
Yes
Network Technology:
1000Base-X,10/100/1000Base-T
Number of PoE+ (RJ-45) Ports:
1
Number of SFP Slots:
2
Packaged Quantity:
1
PoE Port Type:
PSE
Power Source:
AC
Product Type:
Transceiver/Media Converter
TAA Compliant:
No
Total Number of Expansion Slots:
2
Total Number of Ports:
3
