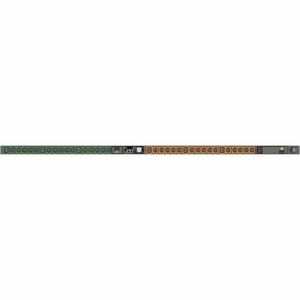

Vertiv Geist rPDU MNS5MHW1-48CF13-3PS56B0A10-S-A 48-Outlets PDU
VP5N30AT
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display,Touch Screen Display
Input Current: 30 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC,346 V AC - 415 V AC
Length: 78"
Limited Warranty: 5 Year
Load Capacity (Watt): 17.20 kW
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 240 V AC
Package Contents:
- rPDU MNS5MHW1-48CF13-3PS56B0A10-S-A 48-Outlets PDU
- Vertical Mounting Bracket Kit
PDU Type: Switched
Phase: Three Phase
Plug/Connector Detail: 1 x IEC 60309 3P + N + E (IP44)
Plug/Connector Type: IEC 60309 3P+N+E (IP44)
Power Rating (Watt): 17.20 kW
Product Color: Black Powder Coat
Product Model: MNS5MHW1-48CF13-3PS56B0A10-S-A
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Single Pole
Rack Height: 0U
Receptacle Detail: 48 x Combination C13/C19
Receptacle Type: Combination C13/C19
Remote Outlet Switching: Yes
TAA Compliant: Yes
$4,261
Vertiv Geist Basic 6-Outlets PDU
12578
- Cord Length: 10 ft
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
View all specs
Cord Length: 10 ft
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Input Current: 30 A
Input Voltage: 120 V AC
Limited Warranty: 3 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Output Voltage: 120 V AC
PDU Type: Basic
Plug/Connector Detail: 1 x NEMA L5-30P
Plug/Connector Type: NEMA L5-30P
Power Rating (Watt): 2800 W
Product Color: Black Powder Coat
Product Line: Basic
Product Type: PDU
Rack Height: 1U
Receptacle Detail: 6 x NEMA L5-30R
Receptacle Type: NEMA L5-30R
$830

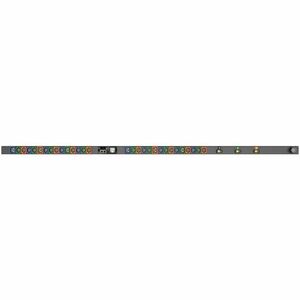

Vertiv Geist rPDU MN05M4W1-30PN63-3TL56A0A10-S-A 30-Outlets PDU
VP4N30AE
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display,Touch Screen Display
Input Current: 30 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC,346 V AC - 415 V AC
Length: 72"
Limited Warranty: 5 Year
Load Capacity (Watt): 17.20 kW
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 240 V AC
Package Contents:
- rPDU MN05M4W1-30PN63-3TL56A0A10-S-A 30-Outlets PDU
- Vertical Mounting Bracket Kit
PDU Type: Monitored
Phase: Three Phase
Plug/Connector Detail: 1 x NEMA L22-30P
Plug/Connector Type: NEMA L22-30P
Power Rating (Watt): 17.20 kW
Product Color: Black Powder Coat
Product Model: MN05M4W1-30PN63-3TL56A0A10-S-A
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Single Pole
Receptacle Detail: 24 x U-Lock IEC 60320 C13,6 x U-Lock IEC 60320 C19
Receptacle Type: U-Lock IEC 60320 C13,U-Lock IEC 60320 C19
TAA Compliant: Yes
$1,930
Vertiv Geist rPDU AN01X1R1-12CF18-3TL6TL6A011-D 12-Outlets PDU
VA1N3102
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Form Factor: Hot-swappable
Input Current: 30 A
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Limited Warranty: 5 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Output Voltage: 208 V AC
PDU Type: Basic
Plug/Connector Detail: 2 x NEMA L6-30P
Plug/Connector Type: NEMA L6-30P
Power Rating (Watt): 4900 W
Product Color: Black Powder Coat
Product Model: AN01X1R1-12CF18-3TL6TL6A011-D
Product Series: rPDU
Product Type: PDU
Receptacle Detail: 12 x Combination C13/C19
Receptacle Type: Combination C13/C19
TAA Compliant: Yes
$2,022
Vertiv Geist MN01D4W1-36PT68-3TL6A0A10-S 36-Outlets PDU
I10056L
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Input Current: 30 A
View all specs
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Input Current: 30 A
Input Voltage: 230 V AC
Length: 72"
Limited Warranty: 5 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Output Voltage: 208 V AC
Package Contents:
- MN01D4W1-36PT68-3TL6A0A10-S 36-Outlets PDU
- Vertical Mounting Bracket Kit
PDU Type: Metered
Plug/Connector Detail: 1 x NEMA L6-30P
Plug/Connector Type: NEMA L6-30P
Power Rating (Watt): 4900 W
Product Model: MN01D4W1-36PT68-3TL6A0A10-S
Product Type: PDU
Protection Type: Overcurrent Protection
Rack Height: 0U
Receptacle Detail: 30 x U-Lock IEC 60320 C13,6 x U-Lock IEC 60320 C19
Receptacle Type: U-Lock IEC 60320 C13,U-Lock IEC 60320 C19
$1,241

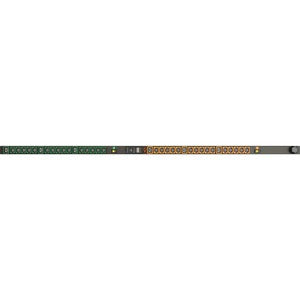

Vertiv Geist rPDU MNR5MGW1-36PT68-3TL6A0A10-S 36-Outlets PDU
VP6N30AN
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display,Touch Screen Display
Input Current: 30 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Length: 70"
Limited Warranty: 5 Year
Load Capacity (Watt): 4900 W
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 208 V AC
Package Contents:
- rPDU MNR5MGW1-36PT68-3TL6A0A10-S 36-Outlets PDU
- Vertical Mounting Bracket Kit
PDU Type: Monitored
Plug/Connector Detail: 1 x NEMA L6-30P
Plug/Connector Type: NEMA L6-30P
Power Rating (Watt): 4900 W
Product Color: Black Powder Coat
Product Model: MNR5MGW1-36PT68-3TL6A0A10-S
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Double Pole
Rack Height: 0U
Receptacle Detail: 30 x U-Lock IEC 60320 C13,6 x U-Lock IEC 60320 C19
Receptacle Type: U-Lock IEC 60320 C13,U-Lock IEC 60320 C19
TAA Compliant: Yes
$3,198
Vertiv Geist rPDU VSSA104-102S20 10-Outlets PDU
28054VH
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Input Current: 20 A
View all specs
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Input Current: 20 A
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Length: 38.5"
Limited Warranty: 5 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Mounting Orientation: Vertical
Mount Type: Rack-mountable,Cabinet-mountable
Output Voltage: 120 V AC
PDU Type: Basic
Plug/Connector Detail: 1 x NEMA 5-20P
Plug/Connector Type: NEMA 5-20P
Power Rating (Watt): 1900 W
Product Model: VSSA104-102S20
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Surge Protection
Receptacle Detail: 10 x NEMA 5-20R
Receptacle Type: NEMA 5-20R
TAA Compliant: Yes
$265
Vertiv Geist rPDU MNS5M1R6-12CF18-3TL15A0H10-S 12-Outlets PDU
VP5N31A3
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display,Touch Screen Display
Input Current: 30 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Limited Warranty: 5 Year
Load Capacity (Watt): 8600 W
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 208 V AC
PDU Type: Switched
Phase: Three Phase
Plug/Connector Detail: 1 x NEMA L15-30P
Plug/Connector Type: NEMA L15-30P
Power Rating (Watt): 8600 W
Product Color: Black Powder Coat
Product Model: MNS5M1R6-12CF18-3TL15A0H10-S
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Double Pole
Receptacle Detail: 12 x Combination C13/C19
Receptacle Type: Combination C13/C19
Remote Outlet Switching: Yes
TAA Compliant: Yes
$2,197

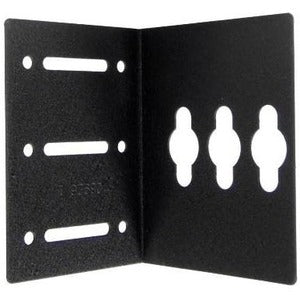

Vertiv Geist Mounting Bracket for Power Strip - Black
TSMX2
- Color Family: Black
- Country of Origin: United States
- Device Supported: Power Strip
- Environmentally Friendly: Yes
View all specs
Color Family: Black
Country of Origin: United States
Device Supported: Power Strip
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Packaged Quantity: 2
Product Color: Black
Product Material: Steel
Product Type: Mounting Bracket
$26
Vertiv Geist Basic 10-Outlets PDU
11961
- Cord Length: 10 ft
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
View all specs
Cord Length: 10 ft
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Input Current: 20 A
Input Voltage: 120 V AC
Limited Warranty: Lifetime
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Output Voltage: 120 V AC
PDU Type: Basic
Plug/Connector Type: NEMA L5-20P
Power Rating (Watt): 1900 W
Product Color: Black Powder Coat
Product Line: Basic
Product Type: PDU
Protection Type: Overcurrent Protection
Receptacle Detail: 10 x NEMA 5-20R
Receptacle Type: NEMA 5-20R
$277
Vertiv Geist rPDU MN05M8W1-30C138-6PS15B0A10-S 30-Outlets PDU
VP4N60AG
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display,Touch Screen Display
Input Current: 60 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Length: 72"
Limited Warranty: 5 Year
Load Capacity (Watt): 17.20 kW
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 208 V AC
Package Contents:
- rPDU MN05M8W1-30C138-6PS15B0A10-S 30-Outlets PDU
- Vertical Mounting Bracket Kit
PDU Type: Monitored
Phase: Three Phase
Plug/Connector Detail: 1 x IEC 60309 3P+E 60A
Plug/Connector Type: IEC 60309 3P+E 60A
Power Rating (Watt): 17.20 kW
Product Color: Black Powder Coat
Product Model: MN05M8W1-30C138-6PS15B0A10-S
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Double Pole
Receptacle Detail: 30 x IEC 60320 C13
Receptacle Type: IEC 60320 C13
TAA Compliant: Yes
$3,034
Vertiv Geist rPDU MNU5M1R6-12CF18-3TL21A0H10-S 12-Outlets PDU
VP7N31A2
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display,Touch Screen Display
Input Current: 30 A
Input Frequency: 60 Hz
Input Voltage: 120 V AC,230 V AC
Input Voltage Range: 100 V AC - 120 V AC,200 V AC - 240 V AC
Limited Warranty: 5 Year
Load Capacity (Watt): 8600 W
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 208 V AC
PDU Type: Switched
Phase: Three Phase
Plug/Connector Detail: 1 x NEMA L21-30P
Plug/Connector Type: NEMA L21-30P
Power Rating (Watt): 8600 W
Product Color: Black Powder Coat
Product Model: MNU5M1R6-12CF18-3TL21A0H10-S
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Single Pole
Receptacle Detail: 12 x Combination C13/C19
Receptacle Type: Combination C13/C19
Remote Outlet Switching: Yes
TAA Compliant: Yes
$2,473
Vertiv Geist SP064-1023 6-Outlets PDU
38038
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Input Current: 20 A
View all specs
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Input Current: 20 A
Input Voltage: 120 V AC
Limited Warranty: 5 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Output Voltage: 120 V AC
Package Contents:
- SP064-1023 6-Outlets PDU
- Flush Mount
PDU Type: Basic
Plug/Connector Detail: 1 x NEMA L5-20P
Plug/Connector Type: NEMA L5-20P
Power Rating (Watt): 1900 W
Product Model: SP064-1023
Product Type: PDU
Protection Type: Overcurrent Protection,Surge Protection
Rack Height: 1U
Receptacle Detail: 6 x NEMA 5-20R
Receptacle Type: NEMA 5-20R
$256
Vertiv Geist Basic 6-Outlets PDU
13439
- Cord Length: 10 ft
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
View all specs
Cord Length: 10 ft
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Input Current: 30 A
Input Voltage: 230 V AC
Limited Warranty: 3 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Output Voltage: 208 V AC
PDU Type: Basic
Plug/Connector Detail: 1 x NEMA L6-30P
Plug/Connector Type: NEMA L6-30P
Power Rating (Watt): 4900 W
Product Color: Black Powder Coat
Product Line: Basic
Product Type: PDU
Protection Type: Overcurrent Protection
Rack Height: 1U
Receptacle Detail: 6 x NEMA L6-20R
Receptacle Type: NEMA L6-20R
$1,081
Vertiv Geist rPDU MNR5MGW1-24PBB8-5CS15A0A10-S-A 24-Outlets PDU
VP6N50A0
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display,Touch Screen Display
Input Current: 50 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Length: 70"
Limited Warranty: 5 Year
Load Capacity (Watt): 14.40 kW
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 208 V AC
Package Contents:
- rPDU MNR5MGW1-24PBB8-5CS15A0A10-S-A 24-Outlets PDU
- Vertical Mounting Bracket Kit
PDU Type: Monitored
Phase: Three Phase
Plug/Connector Detail: 1 x 3P+E CA
Plug/Connector Type: 3P+E CA
Power Rating (Watt): 14.40 kW
Product Color: Black Powder Coat
Product Model: MNR5MGW1-24PBB8-5CS15A0A10-S-A
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Double Pole
Rack Height: 0U
Receptacle Detail: 12 x U-Lock IEC 60320 C13,12 x U-Lock IEC 60320 C19
Receptacle Type: U-Lock IEC 60320 C13,U-Lock IEC 60320 C19
TAA Compliant: Yes
$3,872
Vertiv Geist rPDU DUS5MGW1-24CF17-1S02A9K00-S-A-RC 24-Outlets PDU
VP5UU0A1
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Country of Origin: United States
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display,Touch Screen Display
Input Current: 48 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC,415 V AC
Length: 66.3"
Limited Warranty: 5 Year
Load Capacity (Watt): 11 kW
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Network (RJ-45): Yes
Package Contents:
- rPDU DUS5MGW1-24CF17-1S02A9K00-S-A-RC 24-Outlets PDU
- UPDU Mounting Bracket Kit
PDU Type: Switched
Phase: Single Phase/Three Phase
Plug/Connector Detail: 1 x Universal Input
Plug/Connector Type: Universal Input
Power Rating (Watt): 11 kW
Product Color: Black Powder Coat
Product Model: DUS5MGW1-24CF17-1S02A9K00-S-A-RC
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Double Pole
Rack Height: 0U
Receptacle Detail: 24 x Combination C13/C19
Receptacle Type: Combination C13/C19
Remote Outlet Switching: Yes
TAA Compliant: Yes
$3,747
Vertiv Geist rPDU MNS5M1R5-12S203-2ST5A0H10-S 12-Outlets PDU
VP5N21A0
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display,Touch Screen Display
Input Current: 20 A
Input Frequency: 60 Hz
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Limited Warranty: 5 Year
Load Capacity (Watt): 1900 W
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 120 V AC
PDU Type: Switched
Plug/Connector Detail: 1 x NEMA 5-20P
Plug/Connector Type: NEMA 5-20P
Power Rating (Watt): 1900 W
Product Color: Black Powder Coat
Product Model: MNS5M1R5-12S203-2ST5A0H10-S
Product Series: rPDU
Product Type: PDU
Receptacle Detail: 12 x NEMA 5-20R
Receptacle Type: NEMA 5-20R
Remote Outlet Switching: Yes
TAA Compliant: Yes
$1,770
Vertiv Geist rPDU MNU5MGW1-24CF18-5CS15A0A10-S-A 24-Outlets PDU
VP7N50A5
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LED Display
Input Current: 50 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Length: 70"
Limited Warranty: 5 Year
Load Capacity (Watt): 14.40 kW
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 208 V AC
Package Contents:
- rPDU MNU5MGW1-24CF18-5CS15A0A10-S-A 24-Outlets PDU
- Vertical Mounting Bracket Kit
PDU Type: Switched
Phase: Three Phase
Plug/Connector Detail: 1 x 3P+E CA
Plug/Connector Type: 3P+E CA
Power Rating (Watt): 14.40 kW
Product Color: Black Powder Coat
Product Model: MNU5MGW1-24CF18-5CS15A0A10-S-A
Product Series: rPDU
Product Type: PDU
Protection Type: Double Pole,Overcurrent Protection
Rack Height: 0U
Receptacle Detail: 24 x Combination C13/C19
Receptacle Type: Combination C13/C19
Remote Outlet Switching: Yes
TAA Compliant: Yes
$4,215
Vertiv Geist CSU-S02A7-41500-6PS6B-S Standard Power Cord
FSC1U003
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years.
- Compatibility:
For use with Vertiv Geist Universal Rack PDU
- Cord Length: 5 ft
- Current Rating: 63 A
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years.
Compatibility:
For use with Vertiv Geist Universal Rack PDU
Cord Length: 5 ft
Current Rating: 63 A
Device Supported: PDU
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: Flexible
First End Connector Type: IEC 60309 2P+E
Gauge: 6/3
Limited Warranty: 3 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Minimum Frequency: 50 Hz
Product Model: CSU-S02A7-41500-6PS6B-S
Product Type: Standard Power Cord
Second End Connector Type: Universal Connector
Voltage Rating: 230 V AC
$654
Vertiv PowerIT rack PDU Interchangeable Monitoring Device Upgrade | Local & Remote Monitoring | Redundant Power | Touchscreen | Hot Swappable | IMD-5M
IMD-5M
- Additional Warranty Information: 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: PDU
- Country of Origin: United States
- Environmental Compliance: China Restriction of Hazardous Substances (China RoHS)
View all specs
Additional Warranty Information: 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: PDU
Country of Origin: United States
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS)
Limited Warranty: 5 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Product Color: Black
Product Line: Geist
Product Type: Interchangeable Monitoring Device
TAA Compliant: No
$519
Vertiv Geist rPDU MN05M1R1-10L138-3TL6A0H10-S 10-Outlets PDU
VP4N31A1
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Application/Usage: IT Equipment
- Cord Length: 10 ft
- Country of Origin: United States
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Application/Usage: IT Equipment
Cord Length: 10 ft
Country of Origin: United States
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: Touch Screen Display,LCD Display
Input Current: 35 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Limited Warranty: 5 Year
Load Capacity (Watt): 10 kW
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 208 V AC
Package Contents:
- rPDU MN05M1R1-10L138-3TL6A0H10-S 10-Outlets PDU
- Adjustable Mount Brackets
PDU Type: Monitored
Phase: Three Phase
Plug/Connector Detail: 1 x NEMA L6-30P
Plug/Connector Type: NEMA L6-30P
Power Rating (Watt): 10 kW
Product Color: Black Powder Coat
Product Model: MN05M1R1-10L138-3TL6A0H10-S
Product Series: rPDU
Product Type: PDU
Protection Type: Overcurrent Protection,Double Pole
Rack Height: 1U
Receptacle Detail: 10 x U-Lock IEC 60320 C13
Receptacle Type: U-Lock IEC 60320 C13
TAA Compliant: Yes
$1,231
Vertiv Geist MN01D1R0-10D203-2ST5A0H10-S 10-Outlets PDU
I10111
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Input Current: 20 A
View all specs
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Input Current: 20 A
Input Voltage: 120 V AC
Limited Warranty: 5 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Output Voltage: 120 V AC
Package Contents:
- MN01D1R0-10D203-2ST5A0H10-S 10-Outlets PDU
- Adjustable Mount Brackets
PDU Type: Metered
Plug/Connector Detail: 1 x NEMA 5-20P
Plug/Connector Type: NEMA 5-20P
Power Rating (Watt): 1900 W
Product Model: MN01D1R0-10D203-2ST5A0H10-S
Product Type: PDU
Rack Height: 1U
Receptacle Detail: 10 x NEMA 5-20R
Receptacle Type: NEMA 5-20R
$600
Vertiv Geist VHVLN082-102I44TL6 8-Outlets PDU
11029
- Country of Origin: United States
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Input Current: 20 A
View all specs
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Input Current: 20 A
Input Voltage: 230 V AC
Length: 17"
Limited Warranty: 5 Year
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Mounting Orientation: Horizontal/Vertical
Mount Type: Rack-mountable
Output Voltage: 208 V AC
Package Contents:
- VHVLN082-102I44TL6 8-Outlets PDU
- 19in Panel Mount Brackets
- SLB-4 Brackets
PDU Type: Basic
Plug/Connector Detail: 1 x NEMA L6-20P
Plug/Connector Type: NEMA L6-20P
Power Rating (Watt): 3300 W
Product Model: VHVLN082-102I44TL6
Product Type: PDU
Rack Height: 0U/1U
Receptacle Detail: 4 x IEC 60320 C13,4 x IEC 60320 C19
Receptacle Type: IEC 60320 C13,IEC 60320 C19
$279
Vertiv Geist rPDU AU05M1R0-11PS63-3PS6PS6B411-D 1-Outlet PDU
VA4U31A0
- Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
- Cord Length: 10 ft
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Features: LCD Display,Touch Screen Display
View all specs
Additional Warranty Information:
5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Cord Length: 10 ft
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Features: LCD Display,Touch Screen Display
Input Current: 20 A
Input Frequency: 60 Hz
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Limited Warranty: 5 Year
Load Capacity (Watt): 7300 W
Management:
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RADIUS
- RSTP
- SSH
- SMTP
- SNMP (v1/v2c/v3)
- Syslog
- TACACS+
- Modbus TCP
- CSV datalog
- JSON API
- JSON datalog
Manufacturer: Vertiv
Manufacturer Website Address: http://www.vertiv.com/
Maximum Operating Temperature: 140°F (60°C)
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Network (RJ-45): Yes
Output Voltage: 230 V AC
PDU Type: Auto Transfer Switch,Monitored
Plug/Connector Detail: 2 x IEC 60309 1P+N+E
Plug/Connector Type: IEC 60309 1P+N+E
Power Rating (Watt): 7300 W
Product Color: Black Powder Coat
Product Model: AU05M1R0-11PS63-3PS6PS6B411-D
Product Series: rPDU
Product Type: PDU
Receptacle Detail: 1 x IEC 2P+E
Receptacle Type: IEC 2P+E
$2,157
