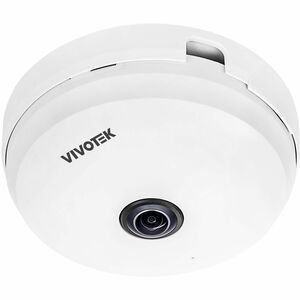

Vivotek FE9180-H-v2 5 Megapixel Indoor Network Camera - Color - Fisheye - TAA Compliant
FE9180-H-V2
- Camera Iris: Fixed
- Color Supported: Color
- Connectivity Technology: Wired
- Country of Origin: Taiwan
View all specs
Camera Iris: Fixed
Color Supported: Color
Connectivity Technology: Wired
Country of Origin: Taiwan
Diameter: 3.7"
Effective Camera Resolution: 5 Megapixel
Ethernet Technology: Fast Ethernet
Features: Day/Night,Built-in IR LED,Built-in Microphone,SD Card Local Storage,Motion Detection,Privacy Masking,HTTPS Encryption,Wide Dynamic Range,White Balance,Back Light Compensation (BLC),Highlight Compensation (HLC),Mirror
Field of View: 180° (Horizontal),180° (Vertical), 180° (Diagonal)
Form Factor: Fisheye
HD Recording: Yes
Image Sensor Size: 1/2.7"
Image Sensor Type: CMOS
Indoor/Outdoor: Indoor
Lens Included: Yes
Lens Type: Fixed
Limited Warranty: 5 Year
Longest Shutter Speed: 1/5 Second
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Aperture: f/2.25
Maximum Focal Length: 1.16 mm
Maximum Frame Rate: 30 fps
Maximum Operating Humidity: 90%
Maximum Operating Temperature: 122°F (50°C)
Maximum Power Consumption: 4.60 W
Maximum Video Resolution: 2688 x 1944
Minimum Operating Temperature: 14°F (-10°C)
Mount Type: Ceiling Mount,Wall Mount,Floor Mount
Network (RJ-45): Yes
Night Vision: Yes
Package Contents:
- FE9180-H-v2 Fisheye Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
- Mounting Bracket
Power Source Type: PoE
Product Model: FE9180-H-v2
Product Series: C
Product Type: Network Camera
Protocols: 802.1X,ARP,Bonjour,CIFS/SMB,DDNS,DHCP,DNS,FTP,HTTP,HTTPS,ICMP,IGMP v3,IPv4,IPv6,NTP,PPPoE,QoS (CoS/DSCP),RTP/RTSP/RTCP,SMTP,SNMP,SSL,TCP/IP,TLS v1.2,UDP,UPnP,ONVIF
Remote Management: Yes
Shortest Shutter Speed: 1/32000 Second
Storage Type: Memory Card
TAA Compliant: Yes
Video Formats: H.265,H.264,MJPEG
$488

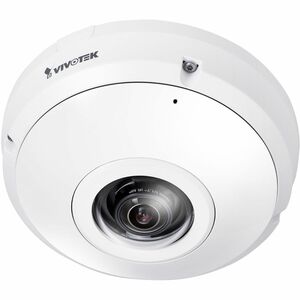

Vivotek FE9191-H-v2 12 Megapixel Indoor Network Camera - Color - Fisheye
FE9191-H-V2
- Camera Iris: Fixed
- Color Supported: Color
- Connectivity Technology: Wired
- Country of Origin: Taiwan
View all specs
Camera Iris: Fixed
Color Supported: Color
Connectivity Technology: Wired
Country of Origin: Taiwan
Diameter: 5.9"
Effective Camera Resolution: 12 Megapixel
Ethernet Technology: Fast Ethernet
Features: Wide Dynamic Range,Motion Detection,Built-in Microphone,Video Content Analytics,Day/Night,Removable IR Cut-off Filter,ePTZ,White Balance,Defog,Back Light Compensation (BLC),Privacy Masking
Field of View: 180° (Horizontal) 180° (Vertical) 180° (Diagonal)
Form Factor: Fisheye
HD Recording: Yes
Image Sensor Size: 1/2.3"
Image Sensor Type: CMOS
Impact Protection Rating: IK10
Indoor/Outdoor: Indoor
Lens Included: Yes
Lens Type: Fixed
Limited Warranty: 36 Month
Longest Shutter Speed: 1/5 Second
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Aperture: f/2.0
Maximum Focal Length: 1.22 mm
Maximum Frame Rate: 30 fps
Maximum Operating Temperature: 122°F (50°C)
Maximum Power Consumption: 9 W
Maximum Video Resolution: 2944 x 2944
Minimum Operating Temperature: 14°F (-10°C)
Mount Type: Ceiling Mount,Wall Mount
Network (RJ-45): Yes
Package Contents:
- FE9191-H-v2 Fisheye Network Camera
- Quick installation guide
- Alignment sticker
- Screw pack
- Mounting bracket
Power Source Type: PoE
Product Model: FE9191-H-v2
Product Series: S
Product Type: Network Camera
Protocols: 802.1X,ARP,Bonjour,CIFS/SMB,DDNS,DHCP,DNS,FTP,HTTP,HTTPS,ICMP,IGMP v3,IPv4,IPv6,NTP,PPPoE,QoS,COS,DSCP,RTP/RTSP/RTCP,SMTP,SNMP,SSL,TCP/IP,TLS v1.2,UDP,UPnP,ONVIF
Remote Management: Yes
Shortest Shutter Speed: 1/32000 Second
Storage Type: Memory Card
Video Formats: H.265,H.264,MJPEG
$1,170

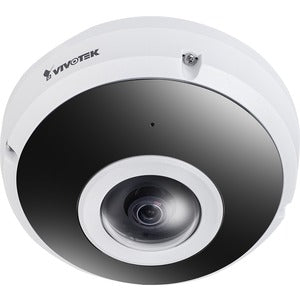

Vivotek FE9382-EHV-V2 6 Megapixel HD Network Camera - Fisheye
FE9382-EHV-V2
- Color Supported: Color
- Connectivity Technology: Wired
- Country of Origin: Taiwan
- Diameter: 5.9"
View all specs
Color Supported: Color
Connectivity Technology: Wired
Country of Origin: Taiwan
Diameter: 5.9"
Durability: Water Resistant,Dust Resistant,Weather Proof,Vandal Proof
Effective Camera Resolution: 6 Megapixel
Features: Wide Dynamic Range,Motion Detection,Built-in Microphone,Day/Night,ePTZ,3D Digital Noise Reduction,Automatic White Balance,Highlight Compensation (HLC),Back Light Compensation (BLC),Auto Gain Control,Password Protection,Audio Detection,Active Tampering Alarm,SD Card Local Storage,Shock Detection
Field of View: 180°
Form Factor: Fisheye
HD Recording: Yes
Image Sensor Type: CMOS
Impact Protection Rating: IK10
Indoor/Outdoor: Outdoor
Ingress Protection Rating: IP66
Input Voltage: 12 V DC
Lens Included: Yes
Lens Type: Fixed
Limited Warranty: 36 Month
Longest Shutter Speed: 1/5 Second
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Aperture: f/1.6
Maximum Focal Length: 1.25 mm
Maximum Frame Rate: 30 fps
Maximum Operating Humidity: 90%
Maximum Operating Temperature: 140°F (60°C)
Maximum Video Resolution: 2048 x 2048
Minimum Operating Temperature: -40°F (-40°C)
Mount Type: Ceiling Mount,Wall Mount
Network (RJ-45): Yes
Night Vision Distance: 65.62 ft
Number of IR LEDs: 4
Package Contents:
- FE9382-EHV-v2 Fisheye Network Camera
- Quick installation guide
- alignment sticker
- screw pack
- desiccant bag
Product Model: FE9382-EHV-V2
Product Series: S
Product Type: Network Camera
Recording Formats: HD
Remote Management: Yes
Shortest Shutter Speed: 1/32000 Second
Video Formats: H.265,H.264,MJPEG
$1,104
Vivotek FE9391-EHV-v2 12 Megapixel Outdoor Network Camera - Color - Fisheye - Black, White
FE9391-EHV-V2
- Color Family: Dual Color
- Color Supported: Color
- Connectivity Technology: Wired
- Country of Origin: Taiwan
View all specs
Color Family: Dual Color
Color Supported: Color
Connectivity Technology: Wired
Country of Origin: Taiwan
Diameter: 5.9"
Durability: Vandal Resistant,Rain Resistant,Dust Resistant
Effective Camera Resolution: 12 Megapixel
Features: Back Light Compensation (BLC),Highlight Compensation (HLC),3D Digital Noise Reduction,Noise Detection,Audio Detection,Tamper Detection,Motion Detection,SD Card Local Storage,Cross Line Detection,Built-in Microphone,Day/Night,3D Noise Reduction
Field of View: 180° (Horizontal) 180° (Vertical) 180° (Diagonal)
Form Factor: Fisheye
HD Recording: Yes
Image Sensor Size: 1/2.3"
Image Sensor Type: CMOS
Impact Protection Rating: IK10
Indoor/Outdoor: Outdoor
Ingress Protection Rating: IP66
Lens Included: Yes
Lens Type: Fixed
Limited Warranty: 36 Year
Longest Shutter Speed: 1/5 Second
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Aperture: f/2.0
Maximum Focal Length: 1.22 mm
Maximum Frame Rate: 30 fps
Maximum Operating Humidity: 90%
Maximum Operating Temperature: 131°F (55°C)
Maximum Video Resolution: 2944 x 2944
Minimum Operating Temperature: -40°F (-40°C)
Mount Type: Desk Mount,Wall Mount,Ceiling Mount
Network (RJ-45): Yes
Night Vision: Yes
Night Vision Distance: 65.62 ft
Night Vision Type: Infrared
Number of IR LEDs: 5
Power Source Type: PoE
Product Color: Black,White
Product Model: FE9391-EHV-v2
Product Series: S
Product Type: Network Camera
Remote Management: Yes
Shortest Shutter Speed: 1/32000 Second
Storage Type: Memory Card
Video Formats: H.265,H.264,MJPEG
$1,382
Vivotek H.265 16-CH Embedded PoE NVR
ND9425P
- Connectivity Technology: Wired
- Country of Origin: Taiwan
- Ethernet: Yes
- HDMI: Yes
View all specs
Connectivity Technology: Wired
Country of Origin: Taiwan
Ethernet: Yes
HDMI: Yes
HD Recording: Yes
Limited Warranty: 36 Month
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Frame Rate: 240 fps
Maximum Resolution: 3840 x 2160
Number of VGA Out: 1
Power Consumption: 255 W
Product Model: ND9425P
Product Series: V
Product Type: Video Surveillance Station
Recording Formats: 4K
Remote Management: Yes
System Components: Network Video Recorder
TAA Compliant: Yes
Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
Total Number of Channels: 16
USB: Yes
Video Formats: H.264,H.265,Motion JPEG
$575.90
Vivotek H.265 32-CH Embedded PoE NVR w/ Deep Search
ND9542P
- Connectivity Technology: Wired
- Country of Origin: Taiwan
- Ethernet: Yes
- HDMI: Yes
View all specs
Connectivity Technology: Wired
Country of Origin: Taiwan
Ethernet: Yes
HDMI: Yes
HD Recording: Yes
Limited Warranty: 36 Month
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Frame Rate: 360 fps
Maximum Resolution: 4K
Number of VGA Out: 1
NVR Weight: 10.14 lb
Power Consumption: 300 W
Product Model: ND9542P
Product Series: V
Product Type: Video Surveillance Station
Recording Formats: 4K
Remote Management: Yes
System Components: Network Video Recorder
Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
Total Number of Channels: 32
USB: Yes
Video Formats: H.265,H.264,Motion JPEG
$1,866
Vivotek H.265 32-CH Embedded Video Receiver
RX9502
- Connectivity Technology: Wired
- Country of Origin: Taiwan
- Ethernet: Yes
- HDMI: Yes
View all specs
Connectivity Technology: Wired
Country of Origin: Taiwan
Ethernet: Yes
HDMI: Yes
HD Recording: Yes
Limited Warranty: 36 Month
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Frame Rate: 360 fps
Maximum Resolution: 3840 x 2160
Power Consumption: 11 W
Product Model: RX9502
Product Series: C
Product Type: Video Surveillance Station
Recording Formats: 4K
Remote Management: Yes
System Components: Receiver
Total Number of Channels: 32
USB: Yes
Video Formats: H.265,H.264,Motion JPEG
$682
Vivotek H.265 8-CH Embedded PoE NVR
ND9323P
- Connectivity Technology: Wired
- Country of Origin: Taiwan
- Ethernet: Yes
- HDMI: Yes
View all specs
Connectivity Technology: Wired
Country of Origin: Taiwan
Ethernet: Yes
HDMI: Yes
HD Recording: Yes
Limited Warranty: 36 Month
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Frame Rate: 240 fps
Maximum Resolution: 3840 x 2160
Number of VGA Out: 1
Power Consumption: 175 W
Product Model: ND9323P
Product Series: V
Product Type: Video Surveillance Station
Recording Formats: 4K
Remote Management: Yes
Standard Memory: 2 GB
System Components: Network Video Recorder
TAA Compliant: Yes
Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
Total Number of Channels: 8
USB: Yes
Video Formats: H.264,H.265,Motion JPEG
$422
Vivotek IB9367-EHT-V2 2 Megapixel Outdoor Full HD Network Camera - Color - Bullet
IB9367-EHT-V2
- Color Supported: Color
- Connectivity Technology: Wired
- Country of Origin: Taiwan
- Diameter: 5.7"
View all specs
Color Supported: Color
Connectivity Technology: Wired
Country of Origin: Taiwan
Diameter: 5.7"
Durability: Weather Proof,Vandal Proof
Effective Camera Resolution: 2 Megapixel
Ethernet Technology: Fast Ethernet
Features: Built-in Infrared Illuminator,Wide Dynamic Range,Smart Stream,Day/Night,SD Card Local Storage,White Balance,Defog,3D Noise Filtering,Electronic Image Stabilization,Back Light Compensation (BLC),Highlight Compensation (HLC),Gain Control,Privacy Masking,Built-in Microphone,Audio Compression,Password Protection,Motion Detection,Human Detection,Cross Line Detection,Face Detection,Audio Detection,Shock Detection
Field of View: 105° ~ 33° (Horizontal)/55° ~ 18° (Vertical)/126° ~ 37° (Diagonal)
Form Factor: Bullet
HD Recording: Yes
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Impact Protection Rating: IK10
Indoor/Outdoor: Outdoor
Ingress Protection Rating: IP66,IP67
Input Voltage: 12 V DC,24 V AC
Lens Included: Yes
Lens Type: Varifocal
Limited Warranty: 36 Month
Longest Shutter Speed: 1/5 Second
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Aperture: f/1.4
Maximum Focal Length: 13.50 mm
Maximum Frame Rate: 60 fps
Maximum Operating Humidity: 98%
Maximum Operating Temperature: 122°F (50°C)
Maximum Video Resolution: 1920 x 1080
Minimum Aperture: f/2.8
Minimum Focal Length: 2.70 mm
Minimum Operating Temperature: -40°F (-40°C)
Network (RJ-45): Yes
Night Vision: Yes
Night Vision Distance: 164.04 ft
Night Vision Type: Infrared
Number of IR LEDs: 4
Optical Zoom: 5x
Package Contents:
- Bullet Network Camera
- Quick installation guide
- Product lables
- Alignment sticker
- L-shaped wrench
- Screw pack
- Waterproof accessory pack
- Sunshield
- I/O cable
Power Source Type: DC,AC,PoE
Product Model: IB9367-EHT-V2
Product Series: V
Product Type: Network Camera
Protocols: 802.1X,ARP,Bonjour,CIFS/SMB,DDNS,DHCP,DNS,FTP,SFTP,HTTP,HTTPS,ICMP,IGMP v3,IPv4,IPv6,NTP,PPPoE,QoS,DSCP,COS,RTP/RTSP/RTCP,SMTP,SNMP,SSL,TCP/IP,TLS,UDP,UPnP
Recording Formats: Full HD
Remote Management: Yes
Shortest Shutter Speed: 1/32000 Second
Storage Type: Memory Card
Video Formats: H.265,H.264,MJPEG
$990
Vivotek IB9369-F2 2 Megapixel Outdoor Full HD Network Camera - Color - Bullet - TAA Compliant
IB9369-F2
- Color Supported: Color
- Connectivity Technology: Wired
- Diameter: 3.6"
- Durability: Water Resistant,Vandal Proof,Dust Resistant,Weather Proof
View all specs
Color Supported: Color
Connectivity Technology: Wired
Diameter: 3.6"
Durability: Water Resistant,Vandal Proof,Dust Resistant,Weather Proof
Effective Camera Resolution: 2 Megapixel
Features: Digital Wide Dynamic Range (D-WDR),Motion Detection,3D Noise Reduction,SD Card Local Storage,Built-in Infrared Illuminator,Day/Night,Built-in Microphone
Field of View: 118° (Horizontal) 65° (Vertical) 140° (Diagonal)
Form Factor: Bullet
HD Recording: Yes
Image Sensor Type: CMOS
Impact Protection Rating: IK10
Indoor/Outdoor: Outdoor
Ingress Protection Rating: IP66
Input Voltage: 12 V DC
Lens Included: Yes
Lens Type: Fixed
Limited Warranty: 36 Month
Longest Shutter Speed: 1/5 Second
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Aperture: f/2
Maximum Focal Length: 2.80 mm
Maximum Frame Rate: 30 fps
Maximum Operating Humidity: 95%
Maximum Operating Temperature: 140°F (60°C)
Maximum Video Resolution: 1920 x 1080
Minimum Operating Temperature: -22°F (-30°C)
Mount Type: Junction Box Mount,Conduit Mount,Corner Mount,Pole Mount
Network (RJ-45): Yes
Night Vision: Yes
Night Vision Distance: 98.43 ft
Night Vision Type: Infrared
Package Contents:
- IB9369-F2 Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
- Cable Gland
Product Model: IB9369-F2
Product Series: C
Product Type: Network Camera
Recording Formats: Full HD
Remote Management: Yes
Shortest Shutter Speed: 1/32000 Second
Storage Type: Memory Card
TAA Compliant: Yes
Video Formats: H.265,H.264,MJPEG
$215
Vivotek IB9389-EH-V2 5 Megapixel Outdoor Network Camera - Color - Bullet - TAA Compliant
IB9389-EH_V2
- Color Supported: Color
- Connectivity Technology: Wired
- Diameter: 3.4"
- Durability: Vandal Proof,Weather Proof
View all specs
Color Supported: Color
Connectivity Technology: Wired
Diameter: 3.4"
Durability: Vandal Proof,Weather Proof
Effective Camera Resolution: 5 Megapixel
Features: Built-in Infrared Illuminator,Wide Dynamic Range,Day/Night,SD Card Local Storage,White Balance,Defog,3D Noise Reduction,Electronic Image Stabilization,Back Light Compensation (BLC),Highlight Compensation (HLC),Gain Control,Privacy Masking,Built-in Microphone,Audio Compression,Password Protection,Motion Detection,Human Detection,Cross Line Detection,Face Detection,Audio Detection,Shock Detection
Field of View: 76° (Horizontal), 56° (Vertical), 100° (Diagonal)
Form Factor: Bullet
HD Recording: Yes
Image Sensor Type: CMOS
Impact Protection Rating: IK10
Indoor/Outdoor: Outdoor
Ingress Protection Rating: IP66
Lens Included: Yes
Lens Type: Fixed
Limited Warranty: 36 Month
Longest Shutter Speed: 1/5 Second
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Aperture: f/2
Maximum Focal Length: 3.60 mm
Maximum Frame Rate: 60 fps
Maximum Illumination: 0 lux
Maximum Operating Humidity: 98%
Maximum Operating Temperature: 140°F (60°C)
Maximum Video Resolution: 2560 x 1920
Minimum Operating Temperature: -40°F (-40°C)
Mount Type: Pole Mount,Corner Mount,Junction Box Mount
Network (RJ-45): Yes
Night Vision: Yes
Night Vision Distance: 98.43 ft
Night Vision Type: Infrared
Number of IR LEDs: 4
Package Contents:
- IB9389-EH-V2 Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
Product Model: IB9389-EH-V2
Product Series: IB9389
Product Type: Network Camera
Remote Management: Yes
Shortest Shutter Speed: 1/32000 Second
Storage Type: Memory Card
TAA Compliant: Yes
Video Formats: H.265,H.264,MJPEG
$385.03
$422
Vivotek Industrial 1xGE 60W UPoE + 1xGE SFP Switch
AW-IHU-0200
- Ethernet Technology: Gigabit Ethernet
- Expansion Slot Type: SFP
- Form Factor: Rail-mountable,Wall Mountable
- Layer Supported: 2
View all specs
Ethernet Technology: Gigabit Ethernet
Expansion Slot Type: SFP
Form Factor: Rail-mountable,Wall Mountable
Layer Supported: 2
Limited Warranty: 2 Year
Manageable: No
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Media Type Supported: Twisted Pair,Optical Fiber
Modular: No
Network Technology: 1000Base-T,1000Base-X
Number of SFP Slots: 1
Packaged Quantity: 1
Package Contents:
- Industrial 1xGE 60W UPoE + 1xGE SFP Switch
- 1 x Quick Installation Guide
- 1 x 4-pin Terminal Block
- 1 x DIN-rail Brackets
- 2 x Wall Mount Brackets
Port/Expansion Slot Details: 1 x Gigabit Ethernet Network,1 x Gigabit Ethernet Expansion Slot
Power Source: Power Supply
Product Model: AW-IHU-0200
Product Type: Ethernet Switch
Shared SFP Slot: No
Stack Port: No
TAA Compliant: Yes
Total Number of Expansion Slots: 1.0
Total Number of Network Ports: 1
Uplink Port: No
$306
Vivotek Industrial 4xFE PoE + 1xFE SC Single-Mode 30KM Switch
AW-IHT-0502
- Ethernet Technology: Fast Ethernet
- Fiber Mode Supported: Single-mode
- Form Factor: Rail-mountable,Wall Mountable
- Layer Supported: 2
View all specs
Ethernet Technology: Fast Ethernet
Fiber Mode Supported: Single-mode
Form Factor: Rail-mountable,Wall Mountable
Layer Supported: 2
Limited Warranty: 2 Year
Manageable: No
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Media Type Supported: Twisted Pair,Optical Fiber
Modular: No
Network Technology: 10/100Base-TX
Package Contents:
- Industrial 4xFE PoE + 1xFE SC Single-Mode 30KM Switch
- QIG
- Terminal Block
- DIN-rail Brackets
- Wall Mount Kit
PoE (RJ-45) Port: No
Port/Expansion Slot Details: 5 x Fast Ethernet Network
Product Model: AW-IHT- 0502
Product Type: Ethernet Switch
Stack Port: No
TAA Compliant: Yes
Total Number of Network Ports: 5
Uplink Port: No
$355
Vivotek Industrial 8xGE PoE + 2xGE SFP Switch
AW-IHT-1000
- Ethernet Technology: Gigabit Ethernet
- Expansion Slot Type: SFP
- Features: Surge Protection
- Form Factor: Desktop
View all specs
Ethernet Technology: Gigabit Ethernet
Expansion Slot Type: SFP
Features: Surge Protection
Form Factor: Desktop
Input Voltage: 48 V DC,56 V DC
Layer Supported: 2
Manageable: No
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Media Type Supported: Twisted Pair,Optical Fiber
Modular: Yes
Networking Standards: IEEE 802.3at,IEEE 802.3af,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x
Network (RJ-45): Yes
Network Technology: 1000Base-T,1000Base-X
Number of SFP Slots: 2
PoE (RJ-45) Port: Yes
PoE Budget: 240 W
Port/Expansion Slot Details: 8 x Gigabit Ethernet PoE,2 x Gigabit Ethernet Expansion Slot
Power Source: DC
Product Model: AW-IHT-1000
Product Type: Ethernet Switch
Total Number of Expansion Slots: 2.0
Total Number of Network Ports: 8
$384
Vivotek Industrial FE Media Converter SC Multi-Mode Fiber 2Km
AW-IHS-0200
- DVI: No
- Ethernet Technology: Fast Ethernet
- Fiber Mode Supported: Multi-mode
- Form Factor: Rail-mountable,Wall Mountable
View all specs
DVI: No
Ethernet Technology: Fast Ethernet
Fiber Mode Supported: Multi-mode
Form Factor: Rail-mountable,Wall Mountable
Limited Warranty: 2 Year
Management Port: No
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Distance Supported: 2 km
Media Type Supported: Optical Fiber,Twisted Pair
Network (RJ-45): Yes
Network Technology: 10/100Base-T,100Base-X
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Package Contents:
- Industrial FE Media Converter SC Multi-Mode Fiber 2Km
- QIG
- Terminal Block
- DIN-rail Brackets
- Wall Mount Kit
Power Source: AC Adapter
Product Model: AW-IHS-0200
Product Type: Transceiver/Media Converter
SC Port Type: Duplex
TAA Compliant: Yes
Total Number of Ports: 2
USB: No
$186
Vivotek Industrial FE Media Converter SC Single-Mode 30km
AW-IHS-0201
- DVI: No
- Ethernet Technology: Fast Ethernet
- Fiber Mode Supported: Single-mode
- Form Factor: Rail-mountable,Wall Mountable
View all specs
DVI: No
Ethernet Technology: Fast Ethernet
Fiber Mode Supported: Single-mode
Form Factor: Rail-mountable,Wall Mountable
Management Port: No
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Distance Supported: 30 km
Media Type Supported: Optical Fiber,Twisted Pair
Network (RJ-45): Yes
Network Technology: 10/100Base-T,100Base-X
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Package Contents:
- Industrial FE Media Converter SC Single-Mode 30km
- QIG
- Terminal Block
- DIN-rail Brackets
- Wall Mount Kit
Power Source: AC Adapter
Product Model: AW-IHS-0201
Product Type: Transceiver/Media Converter
SC Port Type: Duplex
TAA Compliant: Yes
Total Number of Ports: 2
USB: No
$222.39
$244
Vivotek Industrial FE Media Converter SFP
AW-IHS-0202
- DVI: No
- Ethernet Technology: Fast Ethernet
- Expansion Slot Type: SFP
- Form Factor: Wall Mountable,Rail-mountable
View all specs
DVI: No
Ethernet Technology: Fast Ethernet
Expansion Slot Type: SFP
Form Factor: Wall Mountable,Rail-mountable
Management Port: No
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Media Type Supported: Twisted Pair,Optical Fiber
Network (RJ-45): Yes
Network Technology: 100Base-TX
Number of Network (RJ-45) Ports: 1
Number of SFP Slots: 1
Package Contents:
- Industrial FE Media Converter SFP
- QIG
- Terminal Block
- DIN-rail Brackets
- Wall Mount Kit
Product Model: AW-IHS-0202
Product Type: Transceiver/Media Converter
TAA Compliant: Yes
Total Number of Expansion Slots: 1
Total Number of Ports: 1
USB: No
$151
Vivotek IT9360-HF3 2 Megapixel HD Network Camera - Turret
IT9360-HF3
- Color Supported: Color,Monochrome
- Connectivity Technology: Wired
- Diameter: 4.1"
- Durability: Weather Proof,Vandal Proof
View all specs
Color Supported: Color,Monochrome
Connectivity Technology: Wired
Diameter: 4.1"
Durability: Weather Proof,Vandal Proof
Effective Camera Resolution: 2 Megapixel
Features: Wide Dynamic Range,Built-in IR LED,SD Card Local Storage,Built-in Microphone,Motion Detection,Audio Compression,Day/Night,Automatic White Balance,Auto Gain Control,Back Light Compensation (BLC),Highlight Compensation (HLC),Digital Noise Reduction,3D Digital Noise Reduction,Privacy Masking,Password Protection,Audio Detection,Tamper Detection,Built-in Memory,Built-in Card Reader,Defog
Field of View: 81° (Horizontal) 44° (Vertical) 95° (Diagonal)
Form Factor: Turret
HD Recording: Yes
Image Sensor Type: CMOS
Impact Protection Rating: IK10
Indoor/Outdoor: Outdoor
Ingress Protection Rating: IP66
Lens Included: Yes
Lens Type: Fixed
Longest Shutter Speed: 1/5 Second
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Aperture: f/2
Maximum Focal Length: 3.60 mm
Maximum Frame Rate: 30 fps
Maximum Operating Humidity: 90%
Maximum Operating Temperature: 140°F (60°C)
Maximum Video Resolution: 1920 x 1080
Minimum Operating Temperature: -4°F (-20°C)
Mount Type: Junction Box Mount
Network (RJ-45): Yes
Night Vision: Yes
Night Vision Distance: 98.43 ft
Number of IR LEDs: 2
Package Contents:
- IT9360-HF3 Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
- Cable Gland
Product Model: IT9360-HF3
Product Type: Network Camera
Recording Formats: HD
Remote Management: Yes
Shortest Shutter Speed: 1/32000 Second
Storage Type: Memory Card
Video Formats: H.264,MJPEG,H.265
$195.83
$215
Vivotek L2 Plus Managed Switch 20xGE SFP + 4xCombo GE + 4x1G/10G SFP+
AW-GTS-287A
- Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet
- Expansion Slot Type: SFP
- Form Factor: Rack-mountable
- Layer Supported: 2
View all specs
Ethernet Technology: Gigabit Ethernet,10 Gigabit Ethernet
Expansion Slot Type: SFP
Form Factor: Rack-mountable
Layer Supported: 2
Manageable: Yes
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Media Type Supported: Optical Fiber,Twisted Pair
Modular: Yes
Network Technology: 1000Base-X,10GBase-X,10/100/1000Base-T
Number of SFP+ Slots: 4
Number of SFP Slots: 24
Package Contents:
- L2 Plus Managed Switch 20xGE SFP + 4xCombo GE + 4x1G/10G SFP+
- Power Cord
- QIG
- CD Manual
- Rack Mount Kit
- Console cable
Port/Expansion Slot Details: 24 x Gigabit Ethernet Expansion Slot,4 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot
Power Source: Power Supply
Product Model: AW-GTS-287A
Product Type: Ethernet Switch
Redundant Power Supply Supported: No
Shared SFP Slot: Yes
Stack Port: No
TAA Compliant: Yes
Total Number of Expansion Slots: 28.0
Total Number of Network Ports: 4
Uplink Port: No
$2,300
Vivotek MD9560-HF2 2 Megapixel HD Network Camera - Mini Dome - TAA Compliant
MD9560-HF2
- Color Supported: Color,Monochrome
- Connectivity Technology: Wired
- Effective Camera Resolution: 2 Megapixel
- Form Factor: Mini Dome
View all specs
Color Supported: Color,Monochrome
Connectivity Technology: Wired
Effective Camera Resolution: 2 Megapixel
Form Factor: Mini Dome
HD Recording: Yes
Image Sensor Type: CMOS
Lens Type: Fixed
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Focal Length: 2.80 mm
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
Night Vision Distance: 65.62 ft
Product Model: MD9560-HF2
Product Type: Network Camera
Recording Formats: HD
Remote Management: Yes
TAA Compliant: Yes
Video Formats: H.264,MJPEG,H.265
$1,147.10
Vivotek Mounting Adapter for Security Camera Dome - White - TAA Compliant
AM-525_V01
- Application/Usage: Pendant,Wall,Outdoor
- Country of Origin: Taiwan
- Device Supported: Security Camera Dome
- Manufacturer: Vivotek, Inc
View all specs
Application/Usage: Pendant,Wall,Outdoor
Country of Origin: Taiwan
Device Supported: Security Camera Dome
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Product Color: White
Product Material: Aluminum Alloy
Product Type: Mounting Adapter
TAA Compliant: Yes
$113
Vivotek Outdoor Unmanaged PoE Switch
AW-GET-083A-120
- Ethernet Technology: Gigabit Ethernet
- Expansion Slot Type: SFP
- Form Factor: Surface Mount,Pole Mount,Corner Mount
- Layer Supported: 2
View all specs
Ethernet Technology: Gigabit Ethernet
Expansion Slot Type: SFP
Form Factor: Surface Mount,Pole Mount,Corner Mount
Layer Supported: 2
Manageable: No
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Media Type Supported: Twisted Pair,Optical Fiber
Modular: Yes
Network Technology: 10/100/1000Base-T,1000Base-X
Number of SFP Slots: 2
Packaged Quantity: 1
Package Contents:
- Outdoor Unmanaged PoE Switch
- 1 x T25 L-Wrench
- 4 x Wall Anchors
- 1 x Quick Installation Guide
Port/Expansion Slot Details: 4 x Gigabit Ethernet Network,2 x Gigabit Ethernet Network,2 x Gigabit Ethernet Uplink
Power Source: Power Supply
Product Model: AW-GET-083A-120
Product Type: Ethernet Switch
TAA Compliant: Yes
Total Number of Expansion Slots: 2.0
Total Number of Network Ports: 6
Uplink Port: Yes
$1,048
Vivotek SAA04 Antenna
SAA04
- Antenna Gain (Isotropic): 18 dBi
- Application/Usage: Surveillance Device,Wireless Data Network
- Compatibility: Vivotek Products:
- Wireless Cameras
- N500AG Wireless Access Point
- N600AG Wireless Access Point
- Connector Type: N-Type
View all specs
Antenna Gain (Isotropic): 18 dBi
Application/Usage: Surveillance Device,Wireless Data Network
Compatibility: Vivotek Products:
- Wireless Cameras
- N500AG Wireless Access Point
- N600AG Wireless Access Point
Connector Type: N-Type
Form Factor: Pole
Frequency Band Type: UHF
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Antenna Range: 3.1 Mile
Operating Frequency Range: 4900 MHz to 5875 MHz
Product Model: SAA04
Product Type: Antenna
TAA Compliant: Yes
$304
Vivotek SD9368-EHL 2 Megapixel Full HD Network Camera - Color - Dome - White
SD9368-EHL
- Color Family: White
- Color Supported: Color
- Connectivity Technology: Wired
- Country of Origin: Taiwan
View all specs
Color Family: White
Color Supported: Color
Connectivity Technology: Wired
Country of Origin: Taiwan
Durability: Weather Resistant,Weather Proof,Vandal Proof,Rain Resistant,Dust Resistant,Corrosion Resistant
Effective Camera Resolution: 2 Megapixel
Features: Auto Tracking,Cross Line Detection,Face Detection,Video Management System,Wide Dynamic Range,Day/Night,Removable IR Cut-off Filter,Mirror,Auto Flip,3D Digital Noise Reduction,Defog,Privacy Masking,Privacy Protection,White Balance
Field of View: 65.70° ~ 1.88° (Horizontal), 39.39° ~ 1.09° (Vertical), 73.03° ~2.13° (Diagonal)
Form Factor: Dome
HD Recording: Yes
Image Sensor Size: 1/2.8"
Image Sensor Type: CMOS
Impact Protection Rating: IK10
Ingress Protection Rating: IP66
Input Voltage: 24 V AC,48 V DC
Lens Included: Yes
Lens Type: Varifocal
Limited Warranty: 36 Month
Longest Shutter Speed: 1 Second
Manufacturer: Vivotek, Inc
Manufacturer Website Address: http://www.vivotek.com
Maximum Aperture: f/4.95
Maximum Focal Length: 170 mm
Maximum Frame Rate: 60 fps
Maximum Operating Humidity: 98%
Maximum Operating Temperature: 131°F (55°C)
Maximum Video Resolution: 1920 x 1080
Minimum Aperture: f/1.6
Minimum Focal Length: 4.25 mm
Minimum Operating Temperature: -40°F (-40°C)
Mount Type: Wall Mount
Network (RJ-45): Yes
Night Vision: Yes
Night Vision Distance: 820.21 ft
Night Vision Type: Infrared
Number of IR LEDs: 8
Optical Zoom: 40x
Package Contents:
- SD9368-EHL Speed Dome Network Camera
- Wall mount bracket
- Quick installation guide
- Alignment sticker
- Screw pack
- Desiccant bag
- Waterproof accessory bag
- Conduit ring
- Terminal block
Power Source Type: AC,DC,PoE
Product Color: White
Product Model: SD9368-EHL
Product Series: S
Product Type: Network Camera
Recording Formats: Full HD
Remote Management: Yes
Shortest Shutter Speed: 1/100000 Second
Storage Type: Memory Card
Video Formats: H.264,H.265,MJPEG
$3,128
Showing 25-48 of 60 items
