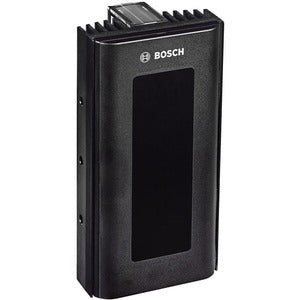

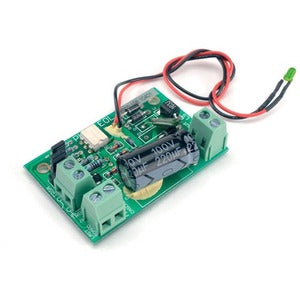

• 6 x PLN-1EOL Plena End of Line Board
• 1 x Application note

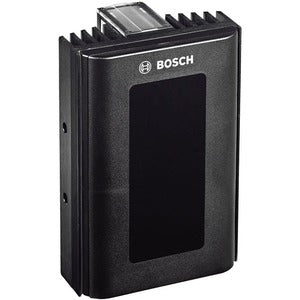

Power

• Power supply x 12 to 32 VDC or 24 VAC ±10%
• Power consumption x 52 W

Optical

• Wavelength x 850 nm or 940 nm
• IR control x Adjustable IR intensity (10% to 100%)
• Day/night switch x Photocell, sensitivity adjustable (20 lx to 70 lx)
• Beam angles x 10°, 20°, 30°, 60°, 80°, and 95°

Range 850 nm

• Beam pattern diffuser x Achievable Distance* HFOV
• 10� x 308 m (1010 ft) 54 m (177 ft)
• 20° x 210 m (689 ft) 74 m (243 ft)
• 30� x 154 m (505 ft) 83 m (271 ft)
• 60° x 98 m (322 ft) 113 m (371 ft)
• 80° x 70 m (230 ft) 117 m (385 ft)
• 95� x 49 m (161 ft) 107 m (351 ft)

Range 940 nm

• Beam pattern diffuser x Achievable Distance* HFOV
• 10� x 189 m (620 ft) 33 m (108 ft)
• 20° x 112 m (367 ft) 39 m (130 ft)
• 30� x 91 m (299 ft) 49 m (160 ft)
• 60° x 56 m (184 ft) 65 m (212 ft)
• 80° x 42 m (138 ft) 70 m (231 ft)
• 95� x 28 m (92 ft) 61 m (201 ft)

Mechanical

• Housing x Robust anodized aluminum extrusion, black
• Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
• Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
• Cable x 3 m (9 ft)
• Dimensions(W x H x D) x 110 x 213 x 76 mm (4.33 x 8.39 x 2.99 in)
• Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
• Bracket weight x 0.2 kg (0.44 lbs)

Environmental

• Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
