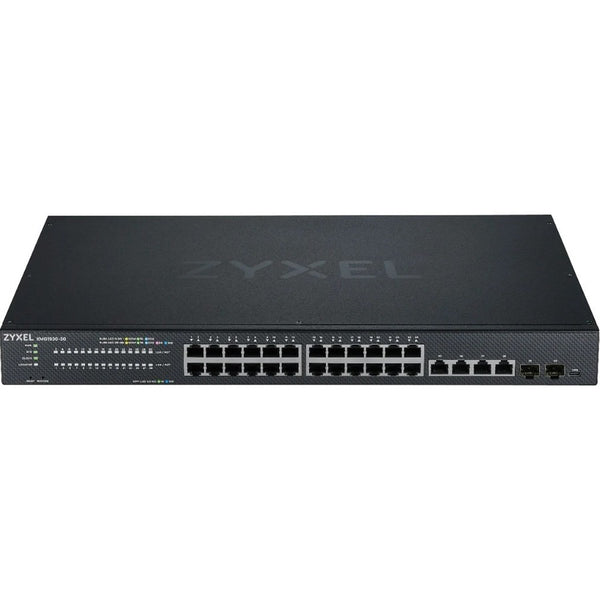

ZYXEL XMG1930-30 24-Port 2.5G Multi-Gigabit L3 Smart Nebula Cloud Managed Switch with 2 10G SFP+ Uplinks and 4 10G Ethernet
SKU: XMG1930-30

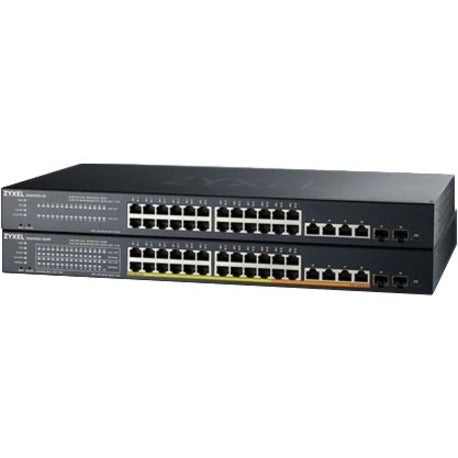

The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models, with and without PoE options. On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.
Benefits | Upgrade network with flexible connection choices
The XMG1930 Series Switch supports IEEE 802.3bz standard and includes both 2.5G and 10G port options to provide Multi-Gigabit technology on existing wiring infrastructure designed for standard gigabit, protecting your investments while offering up to 10 times more bandwidth capacity without the expensive and disruptive cable upgrades. Each copper port of the new Multi-Gigabit switch is able to automatically detect which speed is needed with the connected device. It's common for Multi-Gigabit switches to operate at different link speed for each individual ports, so the XMG1930 Series is designed with a unique 5-color LED, providing an intuitive indication of connection speed for each individual ports.
Superior PoE paves the way for high performance WiFi 6 APs
Upgrading business wireless infrastructure to WiFi 6/6E requires a reliable network Switch to provide solid backbone services. The XMG1930-30HP comes with 8 ports of IEEE 802.3bt (PoE++) offering up to 60W per port, as well as 20 ports of IEEE 802.3at delivering up to 30 W per port to meet a variety of WiFi 6/6E AP adoptions. It is also ready for future WiFi 7 technology deployments. Maximize the performance of the 700 W system power budget with a wide range of choices from Zyxel WiFi 6/6E AP family.
NebulaFlex - simply manage it your way!
The XMG1930 Series supports NebulaFlex technology which provides extended flexibility, especially for those who hesitate to step up for cloud networking. You can easily switch network management modes between standalone and our license-free Nebula cloud management platform. Nebula control center provides a centralized access for Zyxel products; the local web GUI accesses the full feature sets and all configuration options of your switch from the very first release.
Benefits | Upgrade network with flexible connection choices
The XMG1930 Series Switch supports IEEE 802.3bz standard and includes both 2.5G and 10G port options to provide Multi-Gigabit technology on existing wiring infrastructure designed for standard gigabit, protecting your investments while offering up to 10 times more bandwidth capacity without the expensive and disruptive cable upgrades. Each copper port of the new Multi-Gigabit switch is able to automatically detect which speed is needed with the connected device. It's common for Multi-Gigabit switches to operate at different link speed for each individual ports, so the XMG1930 Series is designed with a unique 5-color LED, providing an intuitive indication of connection speed for each individual ports.
Superior PoE paves the way for high performance WiFi 6 APs
Upgrading business wireless infrastructure to WiFi 6/6E requires a reliable network Switch to provide solid backbone services. The XMG1930-30HP comes with 8 ports of IEEE 802.3bt (PoE++) offering up to 60W per port, as well as 20 ports of IEEE 802.3at delivering up to 30 W per port to meet a variety of WiFi 6/6E AP adoptions. It is also ready for future WiFi 7 technology deployments. Maximize the performance of the 700 W system power budget with a wide range of choices from Zyxel WiFi 6/6E AP family.
NebulaFlex - simply manage it your way!
The XMG1930 Series supports NebulaFlex technology which provides extended flexibility, especially for those who hesitate to step up for cloud networking. You can easily switch network management modes between standalone and our license-free Nebula cloud management platform. Nebula control center provides a centralized access for Zyxel products; the local web GUI accesses the full feature sets and all configuration options of your switch from the very first release.
- Multi-Gigabit supports with 2.5G and 10G combinations offering flexibility for high density Multi-Gig deployments
- Up to SIX 10G uplinks including both copper and fiber options providing extensibility and resilience for networks
- PoE model supports both 802.3bt PoE++ (60 W) and 802.3at PoE+ with a highpower budget of up to 700 W to easily connect WiFi 6/6E APs or IoT devices in your network
- Nebula ecosystem offers a unified cloud network experience, from wired, wireless and security gateway
- Access and manage the full feature sets included from the first day of purchase through the local web GUI
Call for Availability
Regular price
$1,074.80
Sale price
$1,299.99
On Sale
Shipping calculated at checkout
The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models, with and without PoE options. On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.
Benefits | Upgrade network with flexible connection choices
The XMG1930 Series Switch supports IEEE 802.3bz standard and includes both 2.5G and 10G port options to provide Multi-Gigabit technology on existing wiring infrastructure designed for standard gigabit, protecting your investments while offering up to 10 times more bandwidth capacity without the expensive and disruptive cable upgrades. Each copper port of the new Multi-Gigabit switch is able to automatically detect which speed is needed with the connected device. It's common for Multi-Gigabit switches to operate at different link speed for each individual ports, so the XMG1930 Series is designed with a unique 5-color LED, providing an intuitive indication of connection speed for each individual ports.
Superior PoE paves the way for high performance WiFi 6 APs
Upgrading business wireless infrastructure to WiFi 6/6E requires a reliable network Switch to provide solid backbone services. The XMG1930-30HP comes with 8 ports of IEEE 802.3bt (PoE++) offering up to 60W per port, as well as 20 ports of IEEE 802.3at delivering up to 30 W per port to meet a variety of WiFi 6/6E AP adoptions. It is also ready for future WiFi 7 technology deployments. Maximize the performance of the 700 W system power budget with a wide range of choices from Zyxel WiFi 6/6E AP family.
NebulaFlex - simply manage it your way!
The XMG1930 Series supports NebulaFlex technology which provides extended flexibility, especially for those who hesitate to step up for cloud networking. You can easily switch network management modes between standalone and our license-free Nebula cloud management platform. Nebula control center provides a centralized access for Zyxel products; the local web GUI accesses the full feature sets and all configuration options of your switch from the very first release.
Benefits | Upgrade network with flexible connection choices
The XMG1930 Series Switch supports IEEE 802.3bz standard and includes both 2.5G and 10G port options to provide Multi-Gigabit technology on existing wiring infrastructure designed for standard gigabit, protecting your investments while offering up to 10 times more bandwidth capacity without the expensive and disruptive cable upgrades. Each copper port of the new Multi-Gigabit switch is able to automatically detect which speed is needed with the connected device. It's common for Multi-Gigabit switches to operate at different link speed for each individual ports, so the XMG1930 Series is designed with a unique 5-color LED, providing an intuitive indication of connection speed for each individual ports.
Superior PoE paves the way for high performance WiFi 6 APs
Upgrading business wireless infrastructure to WiFi 6/6E requires a reliable network Switch to provide solid backbone services. The XMG1930-30HP comes with 8 ports of IEEE 802.3bt (PoE++) offering up to 60W per port, as well as 20 ports of IEEE 802.3at delivering up to 30 W per port to meet a variety of WiFi 6/6E AP adoptions. It is also ready for future WiFi 7 technology deployments. Maximize the performance of the 700 W system power budget with a wide range of choices from Zyxel WiFi 6/6E AP family.
NebulaFlex - simply manage it your way!
The XMG1930 Series supports NebulaFlex technology which provides extended flexibility, especially for those who hesitate to step up for cloud networking. You can easily switch network management modes between standalone and our license-free Nebula cloud management platform. Nebula control center provides a centralized access for Zyxel products; the local web GUI accesses the full feature sets and all configuration options of your switch from the very first release.
- Multi-Gigabit supports with 2.5G and 10G combinations offering flexibility for high density Multi-Gig deployments
- Up to SIX 10G uplinks including both copper and fiber options providing extensibility and resilience for networks
- PoE model supports both 802.3bt PoE++ (60 W) and 802.3at PoE+ with a highpower budget of up to 700 W to easily connect WiFi 6/6E APs or IoT devices in your network
- Nebula ecosystem offers a unified cloud network experience, from wired, wireless and security gateway
- Access and manage the full feature sets included from the first day of purchase through the local web GUI
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
2.5 Gigabit Ethernet,10 Gigabit Ethernet
Expansion Slot Type:
SFP+
Form Factor:
Rack-mountable
Input Voltage:
120 V AC,230 V AC
Layer Supported:
3
Limited Warranty:
Lifetime
Manageable:
Yes
Manufacturer:
ZYXEL Communications Corp.
Manufacturer Website Address:
http://www.us.zyxel.com
Media Type Supported:
Twisted Pair,Optical Fiber
Modular:
Yes
Networking Standards:
IEEE 802.3bz,IEEE 802.1x,IEEE 802.1p,IEEE 802.1ab,IEEE 802.3z,IEEE 802.3an,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s
Network (RJ-45):
Yes
Network Technology:
2.5GBase-T,10GBase-T,10GBase-X
Number of SFP+ Slots:
2
Package Contents:
- XMG1930-30 Ethernet Switch
- Power Cord
- Power Adapter
- Rack Mounting Kit
Port/Expansion Slot Details:
24 x 2.5 Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Network,2 x 10 Gigabit Ethernet Expansion Slot
Power Consumption:
67.10 W
Power Source:
Power Adapter
Product Model:
XMG1930-30
Product Series:
XMG1930
Product Type:
Ethernet Switch
Total Number of Expansion Slots:
2.0
Total Number of Network Ports:
28
Uplink Port:
Yes
