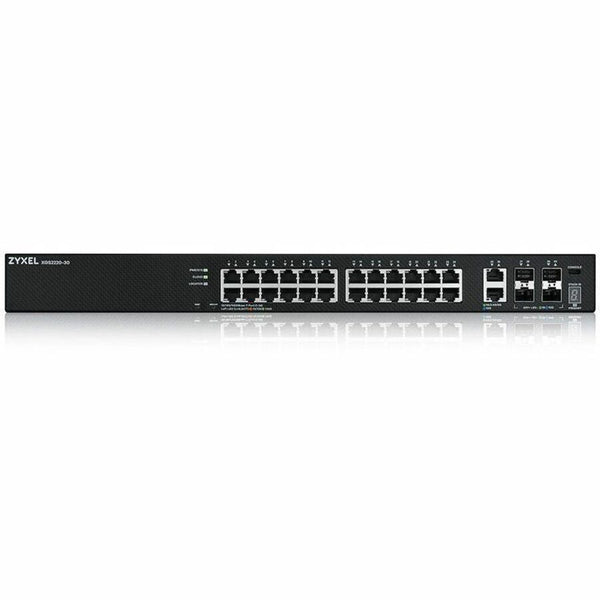

ZYXEL XGS2220-30 24-Port Gigabit L3 Managed and Nebula Pro Cloud Managed Switch with 4 SFP+ 10G Uplinks and 2 10G Ethernet Ports
SKU: XGS2220-30
The XGS2220 Series is a family of Layer 3 access Switch that consists of six models, including PoE, Non-PoE and fiber options. In addition to four 10G SFP+ uplink, all of them come with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. Non-PoE models XGS2220-30 and XGS2220-54 provide 24 or 48 Gigabit desktop ports for every day network access. PoE models XGS2220-30HP, XGS2220-54HP and XGS2220-54FP provide additional power over Ethernet capability and ready for WiFi 6/6E connectivity. The fiber option XGS2220-30F provides 24 SFP port, all serving the purpose to achieve business connectivity based on the flexibility of variety option of media interfaces and make itself an ideal choice for increasing business productivity. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation.
Benefits | Sufficient and flexible 10G support - ideal for converged networking applications
The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers, network storages, or other high-speed network devices with either 10G copper or fiber connection. In addition, the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
Dedicated networked AV mode
The standard switch interface includes an abundance of generic networking features to address a wide variety of applications, making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure, followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompanied with condensed function menu helps you manage and monitor the system with ease.
Benefits | Sufficient and flexible 10G support - ideal for converged networking applications
The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers, network storages, or other high-speed network devices with either 10G copper or fiber connection. In addition, the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
Dedicated networked AV mode
The standard switch interface includes an abundance of generic networking features to address a wide variety of applications, making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure, followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompanied with condensed function menu helps you manage and monitor the system with ease.
- Handles the latest high-bandwidth applications easily with up to six 10G connectivity
- NebulaFlex Pro allows users to switch between standalone management and intuitive Nebula cloud managed mode with 1-YEAR Pro Pack bundled
- Tailor-made Networked AV mode brings efficiency to professional AVoIP networking setups and monitoring services
- Support both PoE++ and PoE+ providing 60 W and 30 W for each port respectively with high power budget of up to 960 W
- Support Multi-Gigabit: 100M/1G/2.5G/5G/10G connections
- L2 multicast, IGMP snooping, MVR and voice VLAN for convergence
Call for Availability
Regular price
$693.42
Sale price
$839.99
On Sale
Shipping calculated at checkout
The XGS2220 Series is a family of Layer 3 access Switch that consists of six models, including PoE, Non-PoE and fiber options. In addition to four 10G SFP+ uplink, all of them come with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity. Non-PoE models XGS2220-30 and XGS2220-54 provide 24 or 48 Gigabit desktop ports for every day network access. PoE models XGS2220-30HP, XGS2220-54HP and XGS2220-54FP provide additional power over Ethernet capability and ready for WiFi 6/6E connectivity. The fiber option XGS2220-30F provides 24 SFP port, all serving the purpose to achieve business connectivity based on the flexibility of variety option of media interfaces and make itself an ideal choice for increasing business productivity. This Series is built with smart fan designed to automatically adjust speeds based on the device temperature, offering near silence while the Switch is in operation.
Benefits | Sufficient and flexible 10G support - ideal for converged networking applications
The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers, network storages, or other high-speed network devices with either 10G copper or fiber connection. In addition, the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
Dedicated networked AV mode
The standard switch interface includes an abundance of generic networking features to address a wide variety of applications, making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure, followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompanied with condensed function menu helps you manage and monitor the system with ease.
Benefits | Sufficient and flexible 10G support - ideal for converged networking applications
The XGS2220 provides up to six high performance 10 Gigabit connectivity including two 10G Multi-Gigabit ports and four SFP+ ports for Layer 3 access network. These 10G uplinks offer the flexibility to connect to servers, network storages, or other high-speed network devices with either 10G copper or fiber connection. In addition, the SFP+ ports can be used to connect to aggregation switches for backbone services or resiliency. This series switch has a full Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and networked AV deployments. Advanced traffic control features such as L2 multicast, IGMP snooping, Multicast VLAN Registration (MVR) provide hotels, businesses and educational institutions greater agility and more effective traffic management for the converged applications of today.
Dedicated networked AV mode
The standard switch interface includes an abundance of generic networking features to address a wide variety of applications, making it a challenge for traditional AV system integrators to setup an IP-based network that needs to run Audio and Video services. The tailor-made networked AV mode begins with an intuitive wizard that prompts for high-level requirement for network infrastructure, followed up with AI-intelligent to apply all the necessary details to setup a professional AVoIP system. With the intuitive graphical status overview of the key AV network elements such as IGMP and IP information, accompanied with condensed function menu helps you manage and monitor the system with ease.
- Handles the latest high-bandwidth applications easily with up to six 10G connectivity
- NebulaFlex Pro allows users to switch between standalone management and intuitive Nebula cloud managed mode with 1-YEAR Pro Pack bundled
- Tailor-made Networked AV mode brings efficiency to professional AVoIP networking setups and monitoring services
- Support both PoE++ and PoE+ providing 60 W and 30 W for each port respectively with high power budget of up to 960 W
- Support Multi-Gigabit: 100M/1G/2.5G/5G/10G connections
- L2 multicast, IGMP snooping, MVR and voice VLAN for convergence
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ethernet Technology:
Gigabit Ethernet,10 Gigabit Ethernet
Expansion Slot Type:
SFP+
Form Factor:
Rack-mountable
Input Voltage:
120 V AC,230 V AC
Layer Supported:
3
Limited Warranty:
Lifetime
Manageable:
Yes
Manufacturer:
ZYXEL Communications Corp.
Manufacturer Website Address:
http://www.us.zyxel.com
Media Type Supported:
Optical Fiber,Twisted Pair
Modular:
Yes
Networking Standards:
IEEE 802.11ac,IEEE 802.11ax,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3ae,IEEE 802.3az,IEEE 802.3x,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ad
Network (RJ-45):
Yes
Network Technology:
100/1000Base-T,10GBase-X,10GBase-T
Number of SFP+ Slots:
4
Package Contents:
- 24-port GbE L3 Access Switch with 6 10G Uplink
- Power Cord
- Rack Mounting Kit
Port/Expansion Slot Details:
24 x Gigabit Ethernet Network,2 x 10 Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot
Power Consumption:
37.62 W
Power Source:
Power Supply
Product Model:
XGS2220-30
Product Series:
XGS2220
Product Type:
Layer 3 Switch
Total Number of Expansion Slots:
4.0
Total Number of Network Ports:
24
Uplink Port:
Yes
