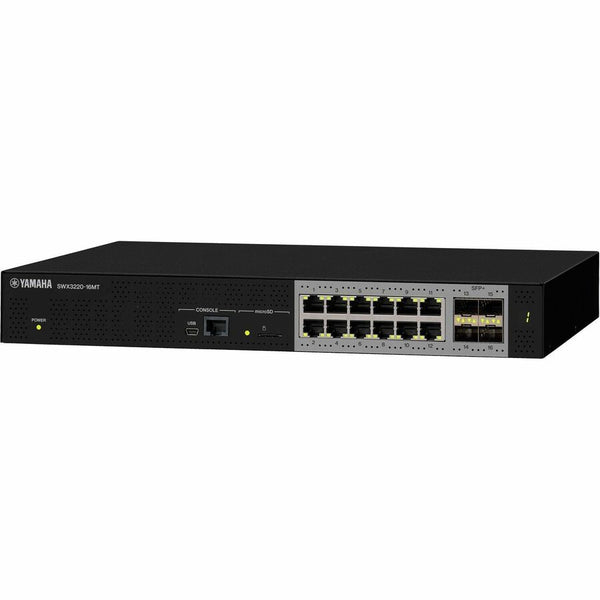

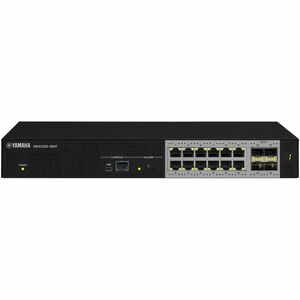

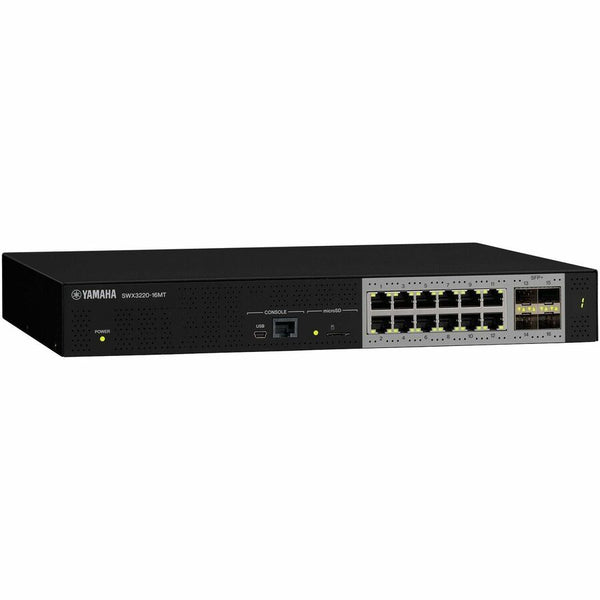

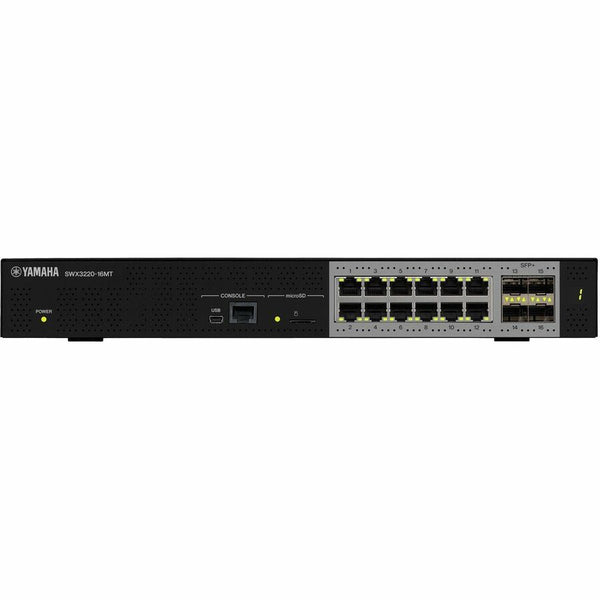

Yamaha SWX3220 / SWX2320 Multi-gigabit Dante Switch

SKU: SWX3220-16MT

10-Gigabit/Multi-Gigabit switches that can be employed flexibly to meet the varied needs of high-capacity networks

Strengthening backbone networks has recently become a critical concern for businesses, concert halls and other installations as the demand for ability to handle high-quality video and audio with low latency increases. As our first switches to support 10-Gigabit/Multi-Gigabit Ethernet, these new models in our lineup are ideal for strengthening backbone networks that require high speed and capacity. The new L3 intelligent switches allow the construction of systems capable of handling increased traffic of media that spans multiple segments, while our L2 switches are perfect for transmitting single-segment audio and video media. These new additions to our lineup support Yamaha LAN Monitor and come with a range of features optimal for Dante systems, expanding on the Dante optimization functions of our existing products.

  • Available ports : 12 multi-gigabit ports (100M/1G/2.5G/5G/10G) and 4 SFP+ ports
  • In-built RADIUS server for advanced security management
  • PTPv2 TC (Transparent clock) supported
  • Yamaha LAN Monitor supported

Call for Availability

Regular price $2,948.90 Sale price $3,814.00
On Sale

Shipping calculated at checkout

Details

10-Gigabit/Multi-Gigabit switches that can be employed flexibly to meet the varied needs of high-capacity networks

Strengthening backbone networks has recently become a critical concern for businesses, concert halls and other installations as the demand for ability to handle high-quality video and audio with low latency increases. As our first switches to support 10-Gigabit/Multi-Gigabit Ethernet, these new models in our lineup are ideal for strengthening backbone networks that require high speed and capacity. The new L3 intelligent switches allow the construction of systems capable of handling increased traffic of media that spans multiple segments, while our L2 switches are perfect for transmitting single-segment audio and video media. These new additions to our lineup support Yamaha LAN Monitor and come with a range of features optimal for Dante systems, expanding on the Dante optimization functions of our existing products.

  • Available ports : 12 multi-gigabit ports (100M/1G/2.5G/5G/10G) and 4 SFP+ ports
  • In-built RADIUS server for advanced security management
  • PTPv2 TC (Transparent clock) supported
  • Yamaha LAN Monitor supported
Specifications
Ethernet Technology:
Gigabit Ethernet,10 Gigabit Ethernet
Expansion Slot Type:
SFP+
Form Factor:
Rack-mountable,Wall Mountable
Input Voltage:
120 V AC,230 V AC
Layer Supported:
2
Manufacturer:
Yamaha Corporation
Manufacturer Website Address:
http://www.yamaha.com
Media Type Supported:
Twisted Pair,Optical Fiber
Modular:
Yes
Networking Standards:
IEEE 802.3,IEEE 802.3z,IEEE 802.3ae
Network (RJ-45):
Yes
Network Technology:
1000Base-T,1000Base-SX/LX,10GBase-SR/LR
Number of SFP+ Slots:
4
Package Contents:
  • SWX3220 / SWX2320 Multi-gigabit Dante Switch
  • Manual
  • Power Cord
  • Power Cord Clamp
  • Legs
  • Dust Covers
  • 19-inch Rack Mount Bracket
  • Wall Mount Bracket
  • Screws
Port/Expansion Slot Details:
12 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot
Power Consumption:
84 W
Power Source:
Power Supply
Product Model:
SWX3220-16MT
Product Type:
Ethernet Switch
Total Number of Expansion Slots:
4
Total Number of Network Ports:
12
