TRENDnet Industrial Gigabit PoE+ Extender, TI-E100, Single Port PoE, Power Over Ethernet, Supports PoE (15.4W) and PoE+ (30W), Extends 100m, Cascade 2 Units for Distance Up to 300m (984 ft.), IP30
SKU: TI-E100
TRENDnet's Industrial Gigabit PoE+ Extender, model TI-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection, and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation fexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).

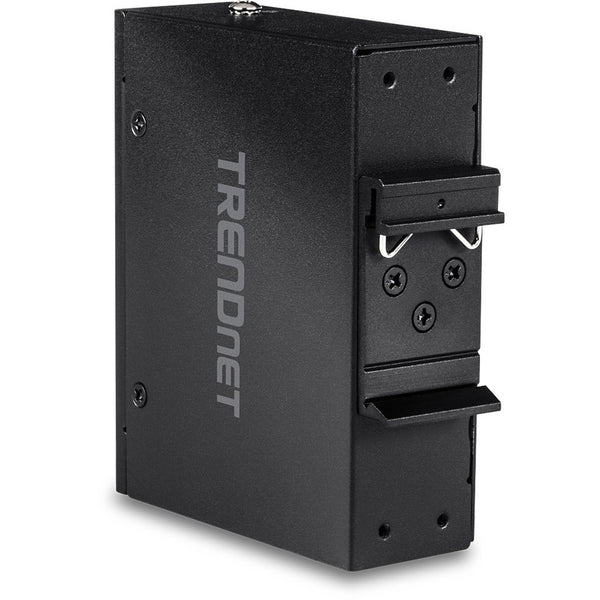

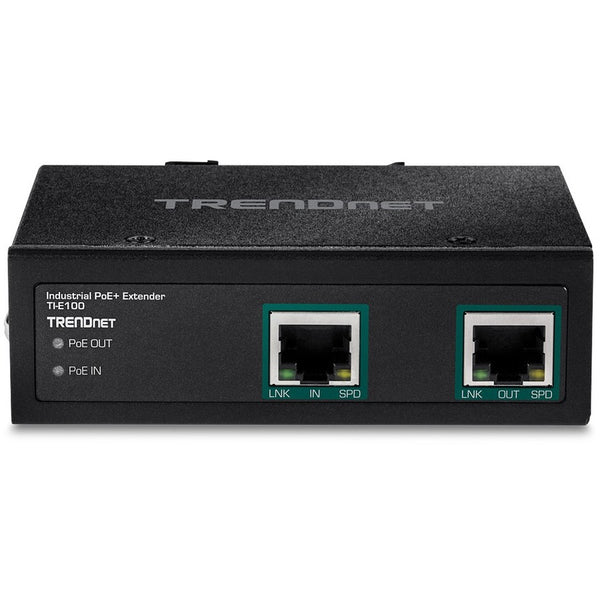

- DEVICE INTERFACE: 1 x Gigabit PoE+ in port; 1 x Gigabit PoE+ out port; LED indicators; DIN-Rail mount; Wall mount ;Grounding point
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Gigabit PoE+ Extender, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-E100, Industrial Gigabit PoE+ Extender is backed and supported with 3 years of TRENDnet Manufacturer Protection.
- PoE POWERED:Extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device installation. No external power required-saves on cost installation time
- DAISY-CHAINABLE: Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
- INDUSTRIAL GRADE DESIGN: Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°- 75° C (-40° - 167° F).
- PoE/PoE+: Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device
- LED INDICATORS: LED indicators to convey status
- EXTENSION DISTANCE: Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment
- Easy installation
- Extends 100m for a total distance of up to 200m (656 ft )
- Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft
- Supports PoE (15 4W) and PoE+ (30W)
- Wide operating temperature range of -40°- 75° C (-40° - 167° F)
- Durable IP30 rated metal housing
- Convenient wall mountable design
- No external power adapter required
- NDAA / TAA compliant (U.S. and Canada only)
Call for Availability
Regular price
$118.43
Shipping calculated at checkout
TRENDnet's Industrial Gigabit PoE+ Extender, model TI-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection, and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation fexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
- DEVICE INTERFACE: 1 x Gigabit PoE+ in port; 1 x Gigabit PoE+ out port; LED indicators; DIN-Rail mount; Wall mount ;Grounding point
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Gigabit PoE+ Extender, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-E100, Industrial Gigabit PoE+ Extender is backed and supported with 3 years of TRENDnet Manufacturer Protection.
- PoE POWERED:Extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device installation. No external power required-saves on cost installation time
- DAISY-CHAINABLE: Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).
- INDUSTRIAL GRADE DESIGN: Built for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°- 75° C (-40° - 167° F).
- PoE/PoE+: Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device
- LED INDICATORS: LED indicators to convey status
- EXTENSION DISTANCE: Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment
- Easy installation
- Extends 100m for a total distance of up to 200m (656 ft )
- Daisy chain up to 2 units for a total PoE network extension of up to 300m (984 ft
- Supports PoE (15 4W) and PoE+ (30W)
- Wide operating temperature range of -40°- 75° C (-40° - 167° F)
- Durable IP30 rated metal housing
- Convenient wall mountable design
- No external power adapter required
- NDAA / TAA compliant (U.S. and Canada only)
Additional Information:
Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
Device Interface
- 1 x Gigabit PoE+ in port
- 1 x Gigabit PoE+ out port
- LED indicators
- DIN-Rail mount
- Wall mount
- Grounding point
Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
- Gigabit: 2000Mbps (full duplex)
Performance
- Data RAM Buffer: 128KB
- MAC Address Table: 2K
- Jumbo Frame: 9KB
Special Features
- Extends a PoE/PoE+ network connection an additional 100 meters
- Cascade up to 2 units for a total distance of up to 300m (984 ft.) @50V power input
- Cascade up to 3 units for a total distance of up to 400m (1312 ft.) @56V power input
- ESD Contact 6kV/Air 8kV and Surge 2kV protection
PoE
- Power input: 15.4W/30W/60W
- Power output: 15.4W/30W
- Max. consumption: 3.5W (no PoE)

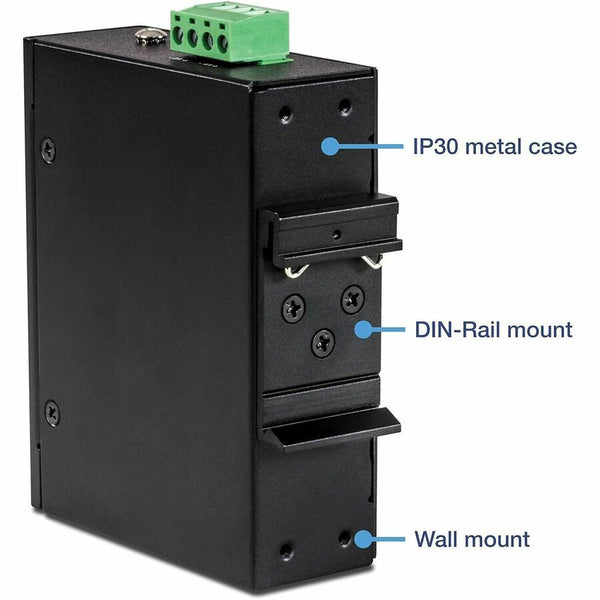

Housing
- IP30 metal case
- DIN-Rail mount
- Wall mount
- Grounding point
- Contact 6kV, Air 8kV ESD protection
- 2kV surge protection
Operating Temperature
- - 40° - 75° C (-40° - 167° F)
Operating Humidity
- Max. 90% non-condensing
Certifications & Standards:
- CE
- FCC
- IEC EN60950-1
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
Country of Origin:
Taiwan
Limited Warranty:
3 Year
Manufacturer:
TRENDnet
Manufacturer Website Address:
http://www.trendnet.com
Maximum Data Transfer Rate:
250 MB/s
Maximum Extended Range:
984.25 ft
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
Package Contents:
- Industrial Gigabit PoE+ Extender
- Quick Installation Guide
- DIN-Rail And Wall Mount Kit
Product Condition:
New
Product Model:
TI-E100
Product Type:
Network Extender
TAA Compliant:
Yes
