TRENDnet Industrial 95W Gigabit PoE++ Injector, TI-IG90, 1 x Gigabit Port, 1 x Gigabit PoE++ Port, Provides PoE (15.4W), PoE+ (30W), PoE++ (95W), NDAA & TAA Compliant

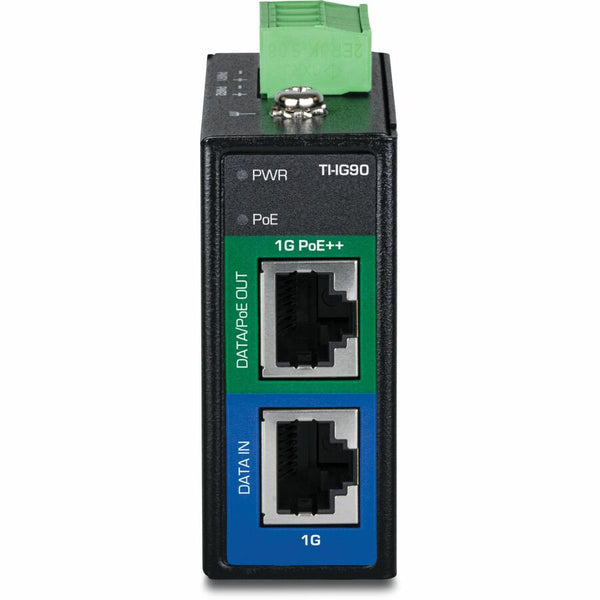

DEVICE INTERFACE: 1 x Gigabit port (10Mbps/100Mbps/1Gbps); 1 x Gigabit PoE++ port (10Mbps/100Mbps/1Gbps); 4- pin
power terminal block; LED Indicators
NDAA + TAA COMPLIANT: With NDAA and TAA compliant network products, you can plan and install the networking solutions
that government customers demand today. (U.S. and Canada only)
POE++: Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 95W) device.
CONNECTION DISTANCE: Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet
cable up to 100 meters (328 ft.) to network a PoE device.
INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of
vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).

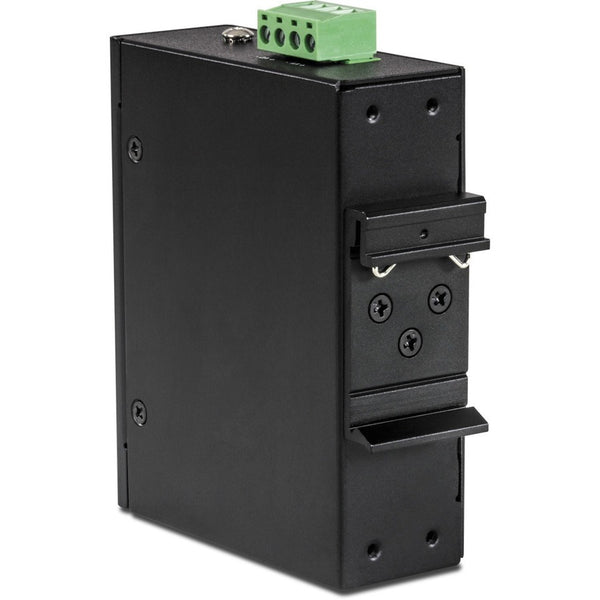

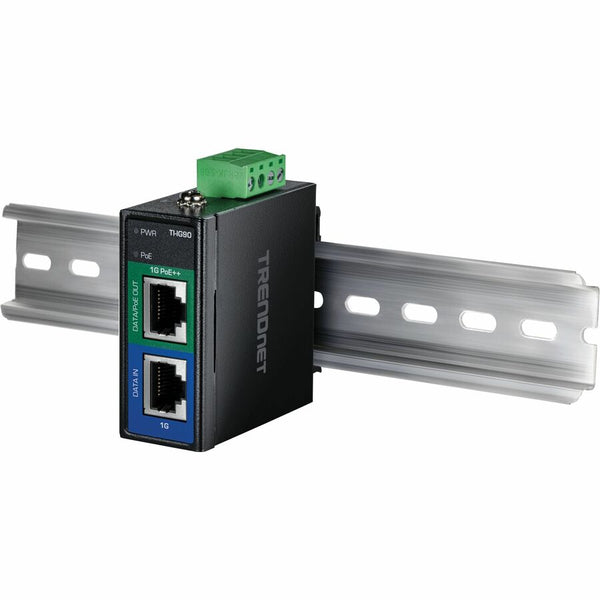

DIN RAIL & WALL MOUNTS: IP50 rated industrial injector includes DIN-Rail mount and wall mount hardware
POWER SUPPLY SOLD SEPARATELY: Use this industrial injector with the compatible power supply model TI-S15052 (Sold
Separately)
FAULT TOLERANCE: The industrial PoE++ injector features 48 - 57V DC power input with overload current protection

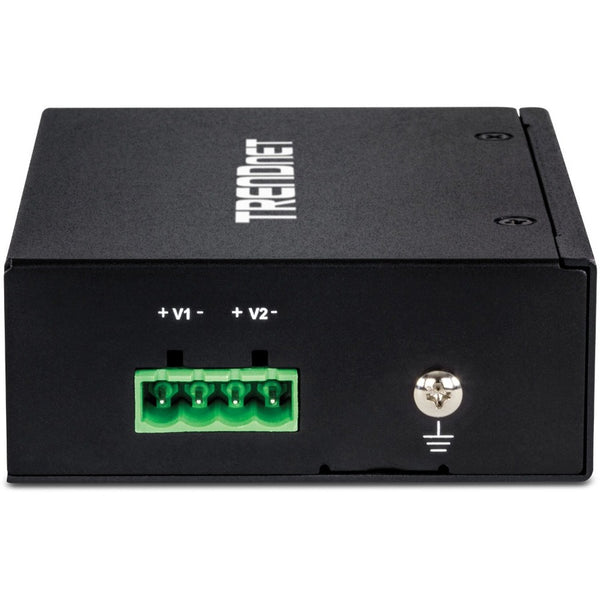

GROUNDING POINT: The injector features a grounding point to protect equipment from external electrical surges
ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications ESD (IEC 61000-4-2): Level 3 Contact: 6kV,
Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 6kV
- Hardened IP50 rated Gigabit PoE++ Injector
- PoE (15.4W), PoE+ (30W), or PoE++ (95W) power
- Network a PoE device located up to 100m (328 ft.) away
- Extreme - 40° - 75° C (-40° - 167° F) operating temperature range
- Redundant power inputs with overload current protection
- 6kV RJ45 Ethernet surge protection
- Includes DIN-rail mount and wall mount
- Power supply sold separately (model: TI-S15052)
- NDAA / TAA compliant
Call for Availability
Shipping calculated at checkout
DEVICE INTERFACE: 1 x Gigabit port (10Mbps/100Mbps/1Gbps); 1 x Gigabit PoE++ port (10Mbps/100Mbps/1Gbps); 4- pin
power terminal block; LED Indicators
NDAA + TAA COMPLIANT: With NDAA and TAA compliant network products, you can plan and install the networking solutions
that government customers demand today. (U.S. and Canada only)
POE++: Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 95W) device.
CONNECTION DISTANCE: Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet
cable up to 100 meters (328 ft.) to network a PoE device.
INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of
vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).
DIN RAIL & WALL MOUNTS: IP50 rated industrial injector includes DIN-Rail mount and wall mount hardware
POWER SUPPLY SOLD SEPARATELY: Use this industrial injector with the compatible power supply model TI-S15052 (Sold
Separately)
FAULT TOLERANCE: The industrial PoE++ injector features 48 - 57V DC power input with overload current protection
GROUNDING POINT: The injector features a grounding point to protect equipment from external electrical surges
ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications ESD (IEC 61000-4-2): Level 3 Contact: 6kV,
Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 6kV
- Hardened IP50 rated Gigabit PoE++ Injector
- PoE (15.4W), PoE+ (30W), or PoE++ (95W) power
- Network a PoE device located up to 100m (328 ft.) away
- Extreme - 40° - 75° C (-40° - 167° F) operating temperature range
- Redundant power inputs with overload current protection
- 6kV RJ45 Ethernet surge protection
- Includes DIN-rail mount and wall mount
- Power supply sold separately (model: TI-S15052)
- NDAA / TAA compliant
