TRENDnet 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch
indicators; Wall Mount; Din Rail Mount; Grounding Point
supply sold separately (models: TI-S15052)
120W@56V DC
train, and other rolling stock applications.
vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

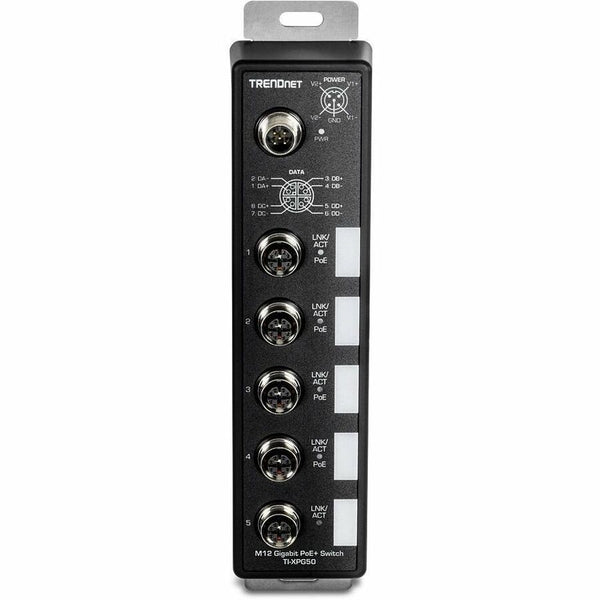

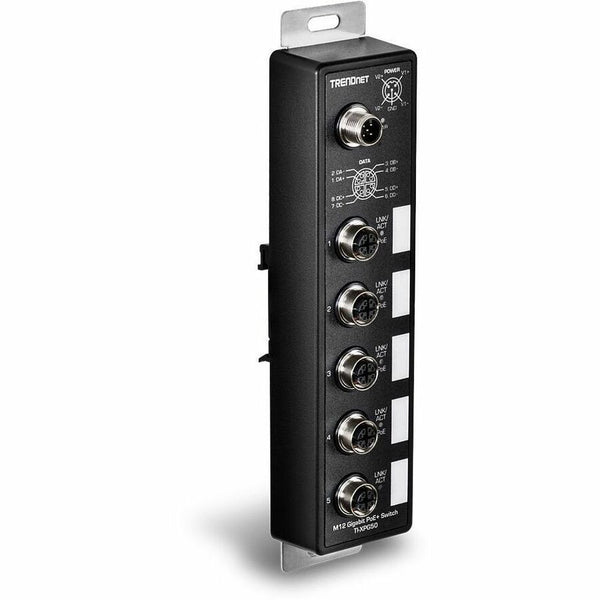

TRENDnet's 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.
EN50155 Compliant
This M12 Ethernet switch supports an input voltage range from 48 - 56V DC, with M12 interfaces for moving bus, train, and other rolling stock applications.
Industrial Design
Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand vibration and shock, with a wide operating temperature range of -40° - 75° C (-40° - 167° F).
Power over Ethernet (PoE+)
Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 120W@56V DC.

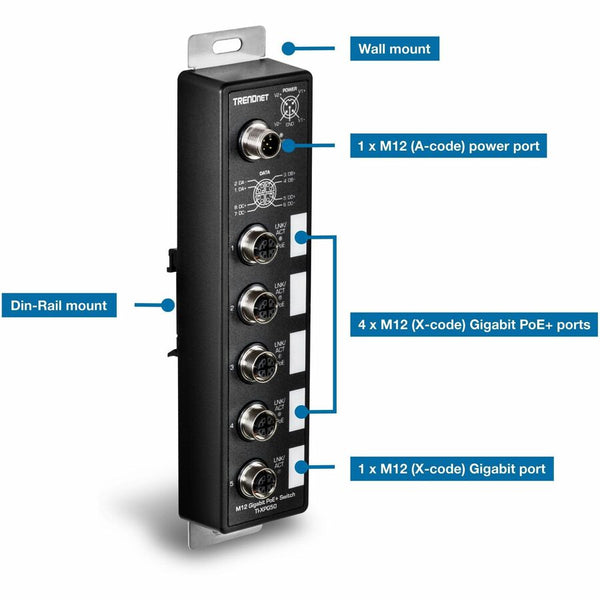

- 4 x M12 (X-code) Gigabit PoE+ ports
- 1 x M12 (X-code) Gigabit port
- 1 x M12 (A-code) power port
- PoE power budget: 120W@56V DC
- EN50155 compliant for rolling stock and railway applications
- Hardened IP67 outdoor rated metal housing
- 10Gbps switching capacity
- Operating temperature range of -40° - 75° C (-40° - 167° F)

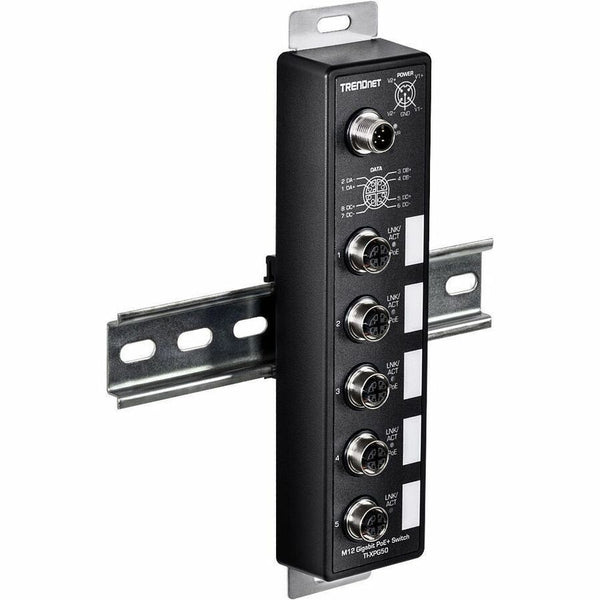

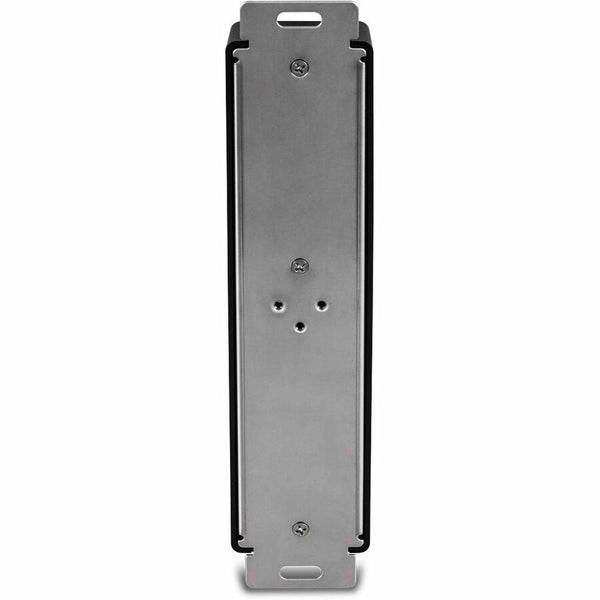

- Includes DIN-Rail and wall mount kits

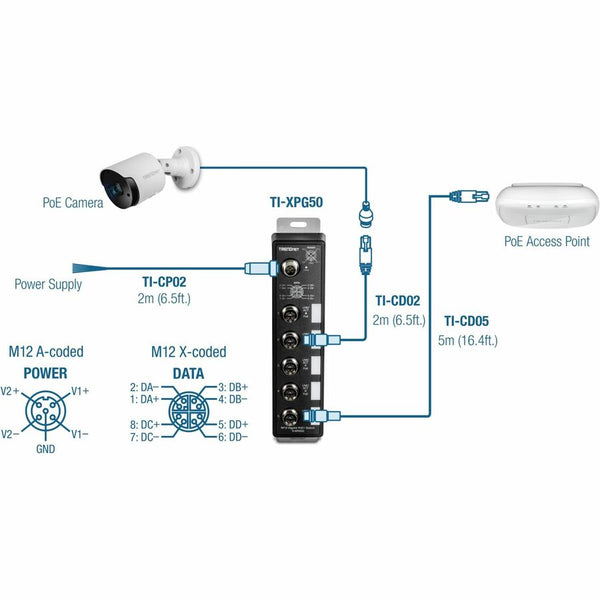

- M12 cables sold separately (models: TI-CD02, TI-CD05, TI-CP02)
Call for Availability
Shipping calculated at checkout
indicators; Wall Mount; Din Rail Mount; Grounding Point
supply sold separately (models: TI-S15052)
120W@56V DC
train, and other rolling stock applications.
vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
TRENDnet's 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.
EN50155 Compliant
This M12 Ethernet switch supports an input voltage range from 48 - 56V DC, with M12 interfaces for moving bus, train, and other rolling stock applications.
Industrial Design
Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand vibration and shock, with a wide operating temperature range of -40° - 75° C (-40° - 167° F).
Power over Ethernet (PoE+)
Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 120W@56V DC.
- 4 x M12 (X-code) Gigabit PoE+ ports
- 1 x M12 (X-code) Gigabit port
- 1 x M12 (A-code) power port
- PoE power budget: 120W@56V DC
- EN50155 compliant for rolling stock and railway applications
- Hardened IP67 outdoor rated metal housing
- 10Gbps switching capacity
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Includes DIN-Rail and wall mount kits
- M12 cables sold separately (models: TI-CD02, TI-CD05, TI-CP02)
- 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch
- Quick Installation Guide
- Wall mount and DIN-Rail kit
