TRENDnet 16-Port Rack Mount USB KVM Switch, VGA and USB Connection, Supports USB and PS/2, Auto-Scan, Device Monitoring, Audible Feedback, Plug and Play, Hot Pluggable, Rack Mountable, Black, TK-1603R
SKU: TK-1603R
The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.

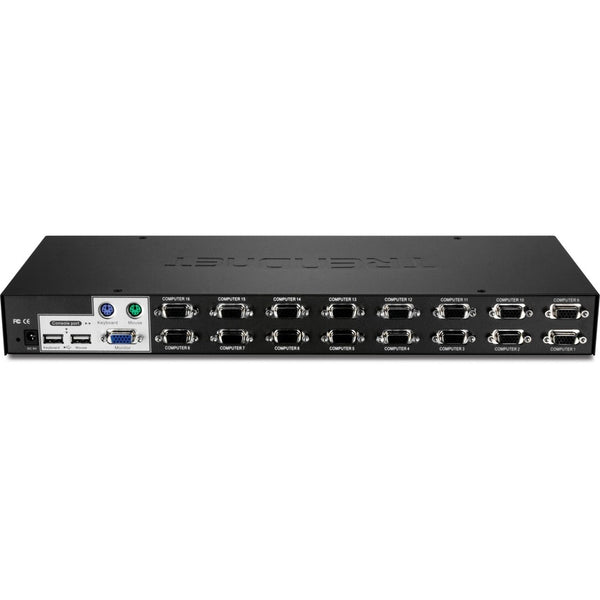

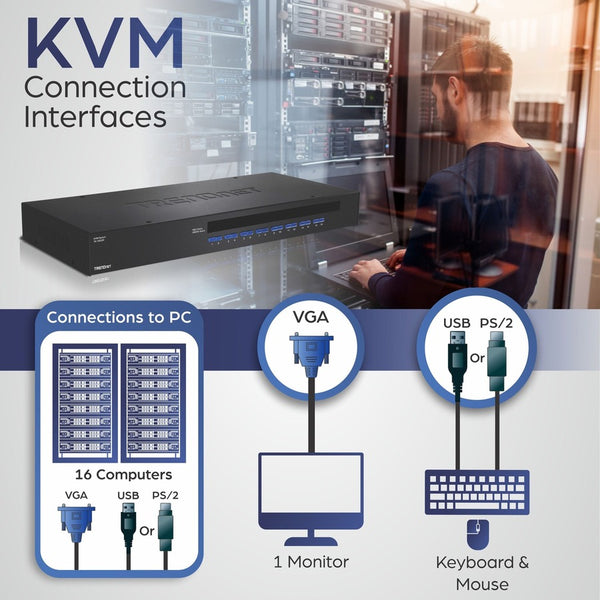

- PC & CONSOLE PORT INTERFACE: PC: 16 x VGA HDB 15-pin (female); Console: 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Mouse; 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Keyboard; 1 x VGA HDB 15-pin (female)
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TK-1603R 16-Port Rackmount KVM Switch is backed and supported with 2 years of TRENDnet Manufacturer Protection.
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant KVM Switch, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- MANAGE MULTIPLE PC'S: This 16-Port KVM Switch enables you to control and manage up to 16 computers or servers with just one set made up of a keyboard, monitor and mouse.
- SUPPORTED OS: The KVM switch supports Windows, Linux, Unix and Mac OS
- VIDEO QUALITY: The 16 Port Switch delivers high video quality, up to 2048 x 1536 VGA resolution
- CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft)
- USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.
- FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management
- RACKMOUNT DESIGN: The rack mount KVM switch has a standard 19" (1U) rack mount design
- 2 year warranty
- NDAA / TAA compliant (U.S. and Canada only)
- Standard 19" (1U) rackmount design
- Required cabling sold separately (TK-CU06 / TK-CU10 / TK-CU15)
- Plug & Play and Hot-Pluggable
- Keyboard hot-key command or push button switching
- Audio notification for port switching confirmation (enable/disable)
- LEDs display for easy status monitoring
- Keyboard status restored when switching between computers
- Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
- Supports up to 2048 x 1536 VGA resolution
- Supports Windows®, Linux®, Mac OS® and more
- USB only for PC side mouse and keyboard connections
- Console port supports both USB and PS/2 for keyboard and mouse interfaces
- Controls up to 16 computers or servers
Call for Availability
Regular price
$263.16
Shipping calculated at checkout
The 16-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.
- PC & CONSOLE PORT INTERFACE: PC: 16 x VGA HDB 15-pin (female); Console: 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Mouse; 1 x USB (Type A) / PS/2 (6-pin mini-DIN) Keyboard; 1 x VGA HDB 15-pin (female)
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TK-1603R 16-Port Rackmount KVM Switch is backed and supported with 2 years of TRENDnet Manufacturer Protection.
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant KVM Switch, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- MANAGE MULTIPLE PC'S: This 16-Port KVM Switch enables you to control and manage up to 16 computers or servers with just one set made up of a keyboard, monitor and mouse.
- SUPPORTED OS: The KVM switch supports Windows, Linux, Unix and Mac OS
- VIDEO QUALITY: The 16 Port Switch delivers high video quality, up to 2048 x 1536 VGA resolution
- CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft)
- USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.
- FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management
- RACKMOUNT DESIGN: The rack mount KVM switch has a standard 19" (1U) rack mount design
- 2 year warranty
- NDAA / TAA compliant (U.S. and Canada only)
- Standard 19" (1U) rackmount design
- Required cabling sold separately (TK-CU06 / TK-CU10 / TK-CU15)
- Plug & Play and Hot-Pluggable
- Keyboard hot-key command or push button switching
- Audio notification for port switching confirmation (enable/disable)
- LEDs display for easy status monitoring
- Keyboard status restored when switching between computers
- Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
- Supports up to 2048 x 1536 VGA resolution
- Supports Windows®, Linux®, Mac OS® and more
- USB only for PC side mouse and keyboard connections
- Console port supports both USB and PS/2 for keyboard and mouse interfaces
- Controls up to 16 computers or servers
Country of Origin:
China
Environmentally Friendly:
Yes
Features:
Plug and Play
Form Factor:
Rack-mountable
Frequency:
50 Hz,60 Hz
Graphic Mode:
VGA,QXGA
Input Voltage Range:
100 - 240V
Limited Warranty:
2 Year
Manufacturer:
TRENDnet
Manufacturer Website Address:
http://www.trendnet.com
Maximum Video Resolution:
2048 x 1536
Number of Computers Supported:
16
Number of Local Users Supported:
1
Number of PS/2 Ports:
2
Number of USB Ports:
2
Number of VGA Ports:
17
Package Contents:
- 16-Port Rackmount KVM Switch
- Quick Installation Guide
- Power Adapter (9 V DC, 1 A)
- Rack Mount Kit
Product Condition:
New
Product Type:
KVM Switchbox
PS/2 Port:
Yes
Rack Height:
1U
TAA Compliant:
Yes
USB:
Yes
VGA:
Yes
