TRENDnet 10-Port Multi-Gig Web Smart PoE+ Switch, 8 x 2.5GBASE-T PoE+ Ports, 2 x 10G SFP+ Slots, Metal Housing, Managed Network Ethernet Switch, Lifetime Protection, Black, TPE-3102WS
SKU: TPE-3102WS
TRENDnet's Multi-Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. Each of these rack-mountable IPv6-ready managed switches come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports TPE-3102WS together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these 2.5G managed PoE+ switches with 10G SFP+ slots powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network's throughput.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Multi-Gig Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network's throughput.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Multi-Gig Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

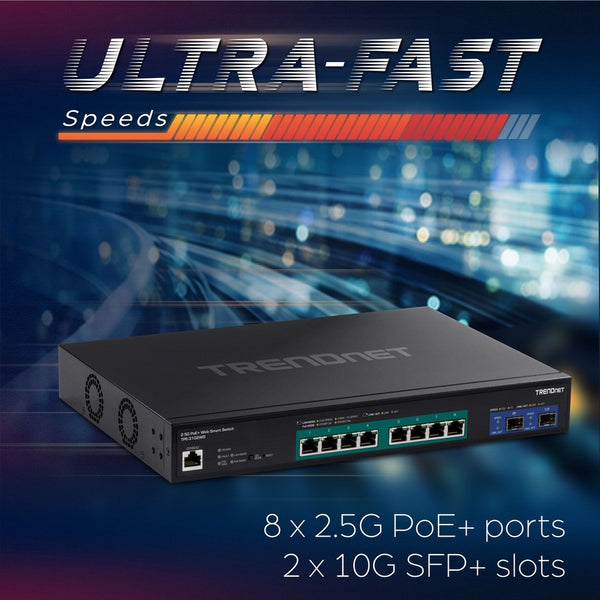

8 x 2.5GBASE-T PoE+ ports
2 x 10 SFP+ slots

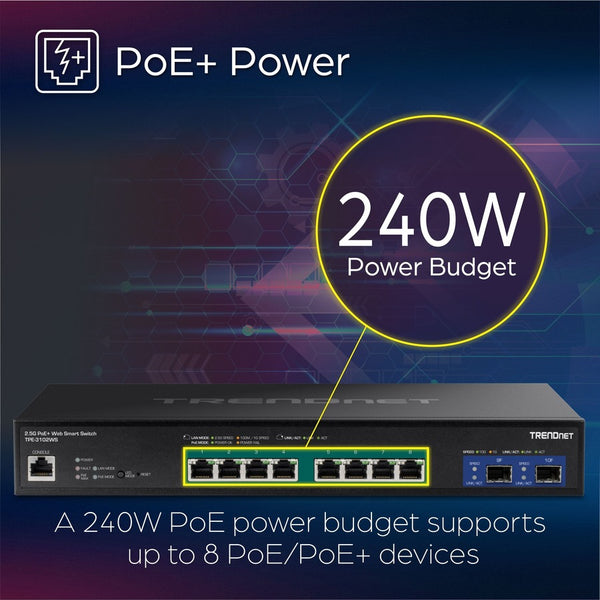

240W PoE power budget

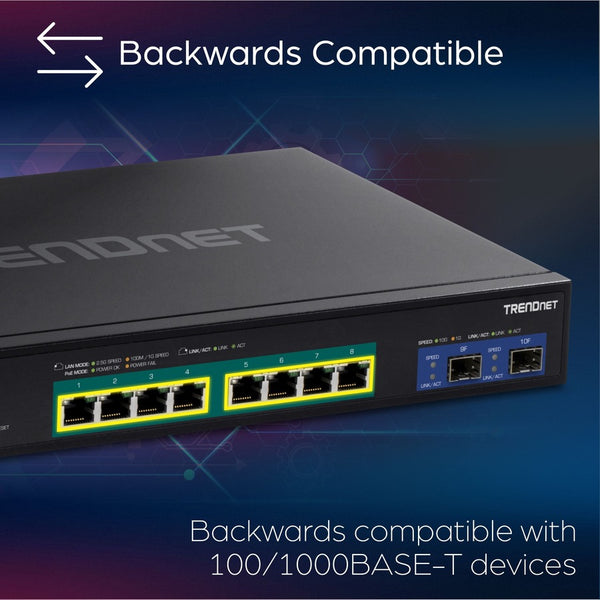

Backwards compatible with 100/1000BASE-T devices

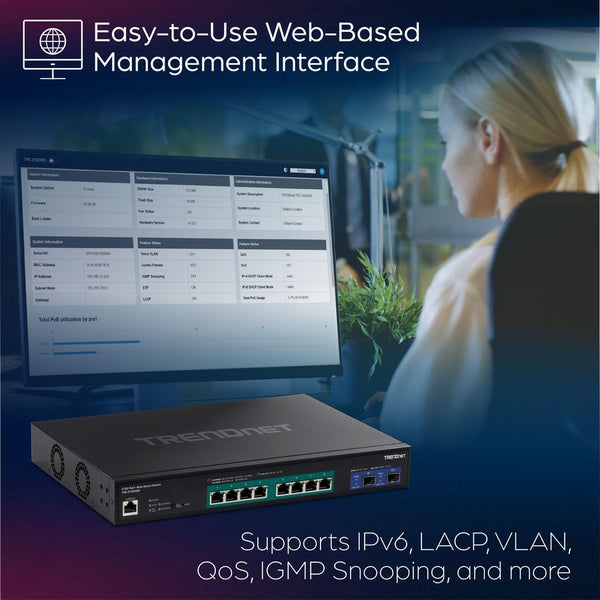

Easy-to-use web-based management interface
PoE alive check automatically attempts to recover an unresponsive PoE device connected
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Bandwidth control per port
Private, Multicast, and Voice VLAN support
1U 19" rack mountable
80Gbps switching capacity
IEEE 802.3bz (2.5G) compliant
IEEE 802.3ae (SFP+) compliant
Lifetime Warranty
NDAA / TAA compliant (U.S. and Canada only)

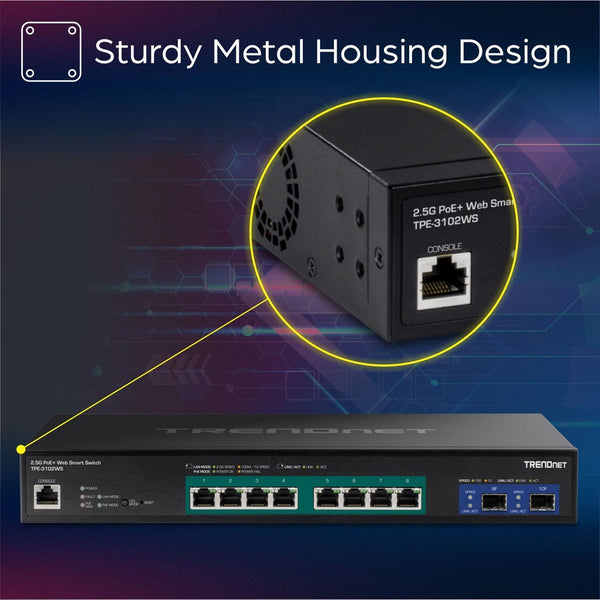

- DEVICE INTERFACE: 8 x 2.5GBASE-T PoE+ Ports; 2 x 10G SFP+ Slots; LED Indicators; Metal Housing
- 2.5G PORTS: This 12 Port Multi-Gig PoE+ Ethernet switch is equipped with eight 2.5GBASE-T RJ-45 ports that provide multigigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
- 10G SFP+ SLOTS: The managed switch offers two 10G SFP+ slots for high-speed network connections providing a costeffective solution in adding 10G link capability.
- POE POWER: Supplies up to 30W of PoE+ power per port with a 240W power budget
- EASY INSTALLATION: No configuration needed, simply connect network devices to the Gigabit Ethernet switch
- SWITCHING CAPACITY: 80Gbps switching capacity
- TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric
- VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth
- management, and QoS queue scheduling
- WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration
- complexity and offers a combination of SMB management features for easy deployment.
- ACCESS CONTROL: Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with
- layered access controls
- COMPATABILITY: 2.5G ports are backwards compatible with 100/1000Mbps devices
- INTEGRATION FLEXIBILITY: Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap,
- and syslog for monitoring and flexible network integration.
- RACK MOUNTABLE: Features a 1U 19" rack mountable design for installation flexibility
- COMPLIANCE: IEEE 802.3bz (2.5G) compliant; IEEE 802.3ae (SFP+) compliant
- LIFETIME PROTECTION: TRENDnet LIFETIME PROTECTION: The TPE-3102WS multi-gig PoE+ web smart switch comes
- with Lifetime TRENDnet Manufacturer Protection.
- NDAA / TAA compliant (U.S. and Canada only)
Call for Availability
Regular price
$337.69
Shipping calculated at checkout
TRENDnet's Multi-Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. Each of these rack-mountable IPv6-ready managed switches come with an intuitive web-based interface. Advanced managed switch features include LACP to increase bandwidth between switches by grouping ports TPE-3102WS together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making these 2.5G managed PoE+ switches with 10G SFP+ slots powerful solutions for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network's throughput.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Multi-Gig Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
These multi-gigabit managed PoE+ switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each multi-gig managed PoE+ switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The switch design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable 2.5G managed PoE+ switches with 10G SFP+ slots offer cost-effective solutions to increase your network's throughput.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Multi-Gig Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With these 2.5G managed PoE+ switches, network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
8 x 2.5GBASE-T PoE+ ports
2 x 10 SFP+ slots
240W PoE power budget
Backwards compatible with 100/1000BASE-T devices
Easy-to-use web-based management interface
PoE alive check automatically attempts to recover an unresponsive PoE device connected
Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
Bandwidth control per port
Private, Multicast, and Voice VLAN support
1U 19" rack mountable
80Gbps switching capacity
IEEE 802.3bz (2.5G) compliant
IEEE 802.3ae (SFP+) compliant
Lifetime Warranty
NDAA / TAA compliant (U.S. and Canada only)
- DEVICE INTERFACE: 8 x 2.5GBASE-T PoE+ Ports; 2 x 10G SFP+ Slots; LED Indicators; Metal Housing
- 2.5G PORTS: This 12 Port Multi-Gig PoE+ Ethernet switch is equipped with eight 2.5GBASE-T RJ-45 ports that provide multigigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
- 10G SFP+ SLOTS: The managed switch offers two 10G SFP+ slots for high-speed network connections providing a costeffective solution in adding 10G link capability.
- POE POWER: Supplies up to 30W of PoE+ power per port with a 240W power budget
- EASY INSTALLATION: No configuration needed, simply connect network devices to the Gigabit Ethernet switch
- SWITCHING CAPACITY: 80Gbps switching capacity
- TRAFFIC MANAGEMENT: A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric
- VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth
- management, and QoS queue scheduling
- WEB SMART MANAGEMENT: Provides an easy-to-use web-based GUI management for reduced switch configuration
- complexity and offers a combination of SMB management features for easy deployment.
- ACCESS CONTROL: Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with
- layered access controls
- COMPATABILITY: 2.5G ports are backwards compatible with 100/1000Mbps devices
- INTEGRATION FLEXIBILITY: Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap,
- and syslog for monitoring and flexible network integration.
- RACK MOUNTABLE: Features a 1U 19" rack mountable design for installation flexibility
- COMPLIANCE: IEEE 802.3bz (2.5G) compliant; IEEE 802.3ae (SFP+) compliant
- LIFETIME PROTECTION: TRENDnet LIFETIME PROTECTION: The TPE-3102WS multi-gig PoE+ web smart switch comes
- with Lifetime TRENDnet Manufacturer Protection.
- NDAA / TAA compliant (U.S. and Canada only)
Compatible Rack Unit:
1U
Country of Origin:
Taiwan
Ethernet Technology:
2.5 Gigabit Ethernet,10 Gigabit Ethernet
Expansion Slot Type:
SFP+
Form Factor:
Rack-mountable
Input Voltage:
120 V AC,230 V AC
Layer Supported:
3
Limited Warranty:
Lifetime
Manageable:
Yes
Manufacturer:
TRENDnet
Manufacturer Website Address:
http://www.trendnet.com
Media Type Supported:
Twisted Pair,Optical Fiber
Modular:
Yes
Networking Standards:
IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.1ab,IEEE 802.1AX,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3af,IEEE 802.3at,IEEE 802.1s,IEEE 802.3ae,IEEE 802.3,IEEE 802.3bz
Network (RJ-45):
Yes
Network Technology:
2.5GBase-T,10GBase-X
Number of SFP+ Slots:
2
Package Contents:
- 10-Port Multi-Gig Web Smart PoE+ Switch
- Quick Installation Guide
- Power Cord (1.5m / 5 ft.)
- Rackmount Brackets
PoE (RJ-45) Port:
Yes
PoE Budget:
240 W
Port/Expansion Slot Details:
8 x 2.5 Gigabit Ethernet PoE+,2 x 10 Gigabit Ethernet Expansion Slot
Power Consumption:
60 W
Power Source:
Power Supply
Product Line:
Web Smart
Product Material:
Metal
Product Model:
TPE-3102WS
Product Type:
Ethernet Switch
TAA Compliant:
Yes
Total Number of Expansion Slots:
2
Total Number of Network Ports:
10
