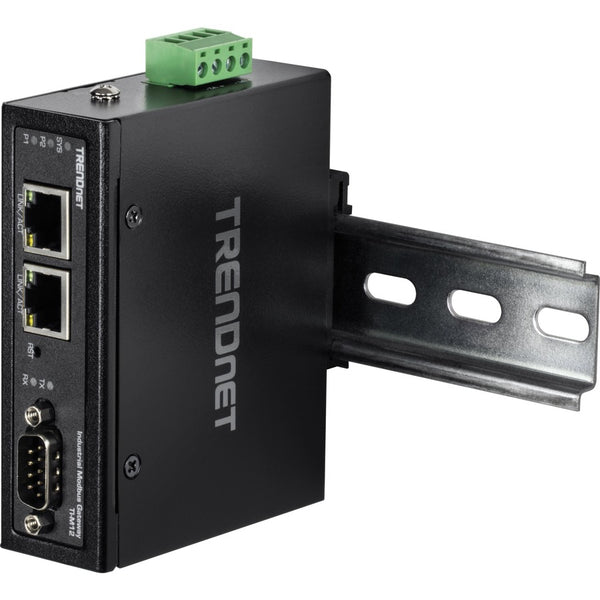

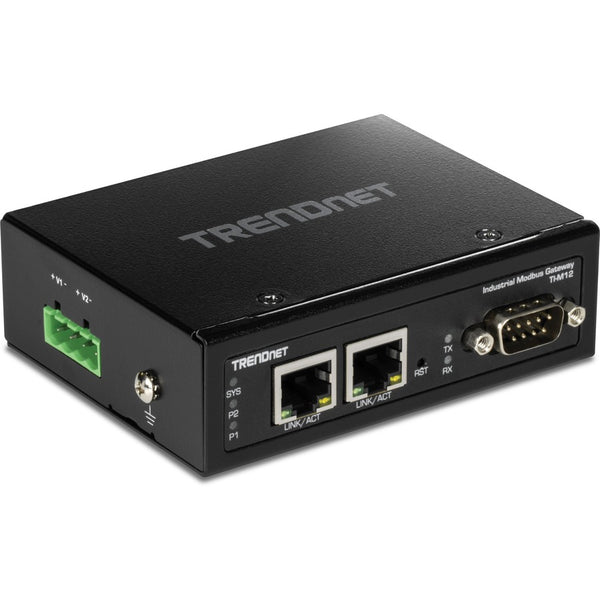

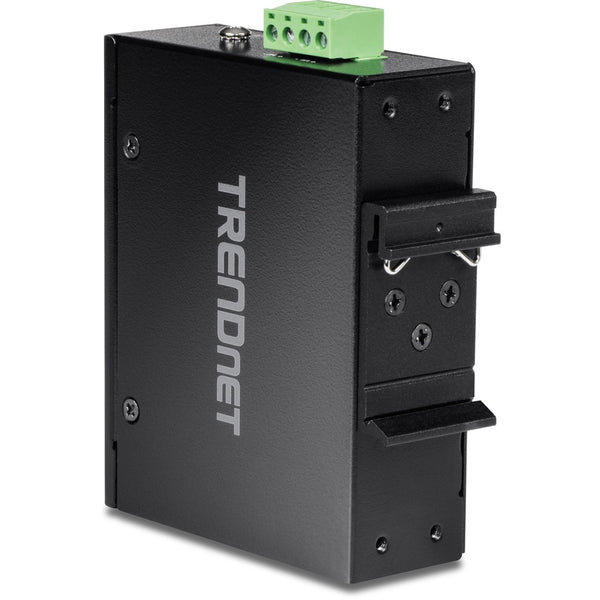

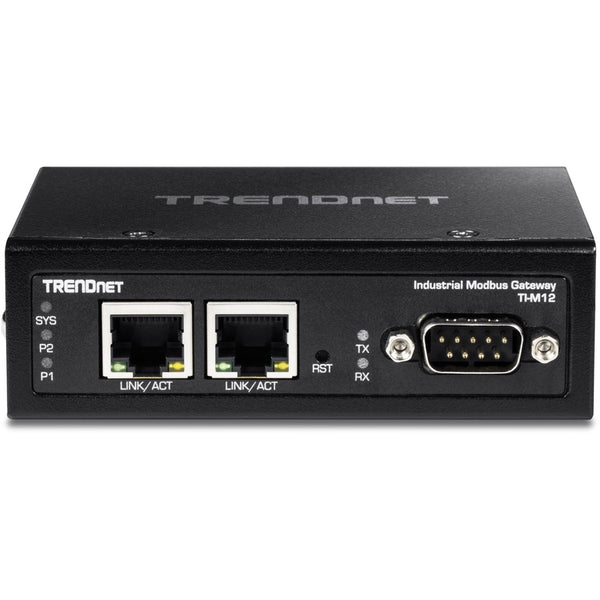

TRENDnet 1-Port Fast Ethernet Industrial Modbus Gateway, 1 x Serial DB-9 Port, 2 x Fast Ethernet Ports, Up to 100m (328 ft), IP30 Rated Housing, Extreme Temperature Protection, Black, TI-M12
SKU: TI-M12
TRENDnet's Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.
- DEVICE INTERFACE: 1 x Serial (DB-9) port; 2 x 10/100Mbps (RJ-45) ports; 4-pin removable terminal block; LED indicators; DIN-Rail mount; Wall mount; Grounding point
- LIFETIME PROTECTION -We stand by the quality of our products. The TI-M12 1-Port Fast Ethernet Industrial Modbus Gateway with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Modbus Gateway, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- CONNECT ONE SERIAL DEVICE: The 1-Port Industrial Modbus Gateway supports RS-232, RS-422 and 2-wire RS-485, and allows you to connect one serial device such as a modem to a network.
- MANAGEMENT CONFIGURATION: Web / Telnet / Windows -based management
- IP30 RATED HOUSING: Hardened components for the Modbus Gateway are rated for extreme temperatures - 40° - 75° C (-40° - 167° F
- DATA TRANSFER RATE: The modbus gateway has a serial port baud rate from 50 bps to 921.6 Kbps
- Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- 1 x serial port, 2 x Fast Ethernet ports
- Connects RS-232/RS-422/RS-485 serial device, such as a modem, to a network
- Supports up to 32 RS-422/RS-485 TCP serial devices per port
- Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° - 167° F)
- IP30 rated metal housing
- NDAA / TAA compliant
- Lifetime Warranty
Call for Availability
Regular price
$281.24
Shipping calculated at checkout
TRENDnet's Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.
- DEVICE INTERFACE: 1 x Serial (DB-9) port; 2 x 10/100Mbps (RJ-45) ports; 4-pin removable terminal block; LED indicators; DIN-Rail mount; Wall mount; Grounding point
- LIFETIME PROTECTION -We stand by the quality of our products. The TI-M12 1-Port Fast Ethernet Industrial Modbus Gateway with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Modbus Gateway, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- CONNECT ONE SERIAL DEVICE: The 1-Port Industrial Modbus Gateway supports RS-232, RS-422 and 2-wire RS-485, and allows you to connect one serial device such as a modem to a network.
- MANAGEMENT CONFIGURATION: Web / Telnet / Windows -based management
- IP30 RATED HOUSING: Hardened components for the Modbus Gateway are rated for extreme temperatures - 40° - 75° C (-40° - 167° F
- DATA TRANSFER RATE: The modbus gateway has a serial port baud rate from 50 bps to 921.6 Kbps
- Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- 1 x serial port, 2 x Fast Ethernet ports
- Connects RS-232/RS-422/RS-485 serial device, such as a modem, to a network
- Supports up to 32 RS-422/RS-485 TCP serial devices per port
- Supports DHCP, automatically obtain an IP address and query IP address through serial setting protocol
- Configure via web management or telnet
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps
- Serial port baud rate from 50bps to 921.6Kbps
- Wide operation temperature range -40° - 75° C (-40° - 167° F)
- IP30 rated metal housing
- NDAA / TAA compliant
- Lifetime Warranty
Country of Origin:
Taiwan
Ethernet Technology:
Fast Ethernet
Form Factor:
DIN Rail Mountable,Wall Mountable
Input Voltage:
12 V DC,56 V DC
Input Voltage Range:
12V DC to 56V DC
Limited Warranty:
Lifetime
Manufacturer:
TRENDnet
Manufacturer Website Address:
http://www.trendnet.com
Media Type Supported:
Twisted Pair
Network (RJ-45):
Yes
Network Standard:
10/100Base-TX
Number of Network (RJ-45) Ports:
2
Number of Serial Ports:
1
Package Contents:
- Industrial Modbus Gateway
- Quick Installation Guide
- Removable Terminal Block
- DIN-Rail and Wall Mount Kit
Plug/Connector Type:
Terminal Block
Power Consumption:
3.84 W
Product Model:
TI-M12
Product Type:
Device Server
Serial Port:
Yes
