KanexPro 4K/30 HDMI Extender over HDBaseT

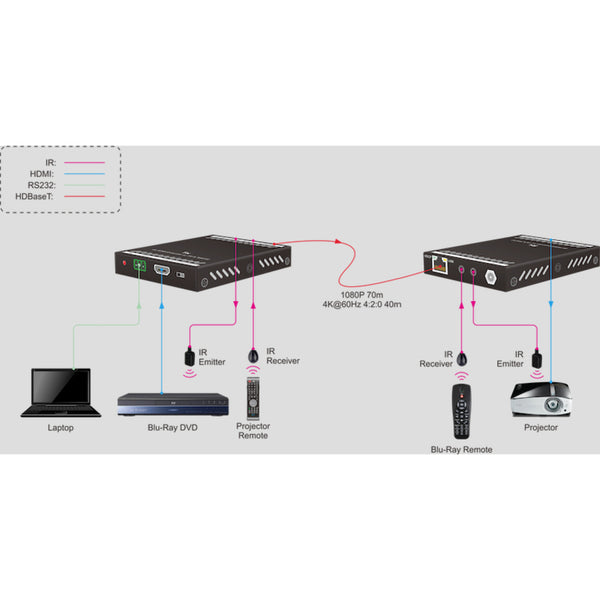

The KanexPro EXT-HDBT70C is an HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover, the extender set supports PoC (power over cable) from either side of the sender or receiver, CEC, bi- directional RS232 & IR control.
Applications
Perfect for extending and routing digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.
Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
- Supports CEC/IR/RS-232 pass-thru
- Bi-directional RS-232 & IR control
- Bandwidth 10.2 Gbps
- HDCP 2.2 & EDID compliant
- Bi-directional PoH (power over cable)
- Video resolutions from 1080p/60@48bit
- Supports Ultra HD 4K@30Hz resolutions &
- Extend 4K/30 up to 40m (131ft.)
- Extend full HD 1080p up to 70m (230ft.)
- Basic point-to-point HDMI extender over HDBaseT
Call for Availability
Shipping calculated at checkout
The KanexPro EXT-HDBT70C is an HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover, the extender set supports PoC (power over cable) from either side of the sender or receiver, CEC, bi- directional RS232 & IR control.
Applications
Perfect for extending and routing digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and home theater.
Please note: use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
- Supports CEC/IR/RS-232 pass-thru
- Bi-directional RS-232 & IR control
- Bandwidth 10.2 Gbps
- HDCP 2.2 & EDID compliant
- Bi-directional PoH (power over cable)
- Video resolutions from 1080p/60@48bit
- Supports Ultra HD 4K@30Hz resolutions &
- Extend 4K/30 up to 40m (131ft.)
- Extend full HD 1080p up to 70m (230ft.)
- Basic point-to-point HDMI extender over HDBaseT
- 1 x Transmitter
- 1 x Receiver
- Mounting Ears
- 1 x Locking Power Supply
