Eaton 5.5kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (8 C13 & 6 C19), L6-30P Input, 15 ft. (4.57 m) Cord, 2U Rack-Mount, TAA
SKU: PDUMH30HV19NET
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
- Temperature, humidity and contact closure monitoring options
- TAA Compliant

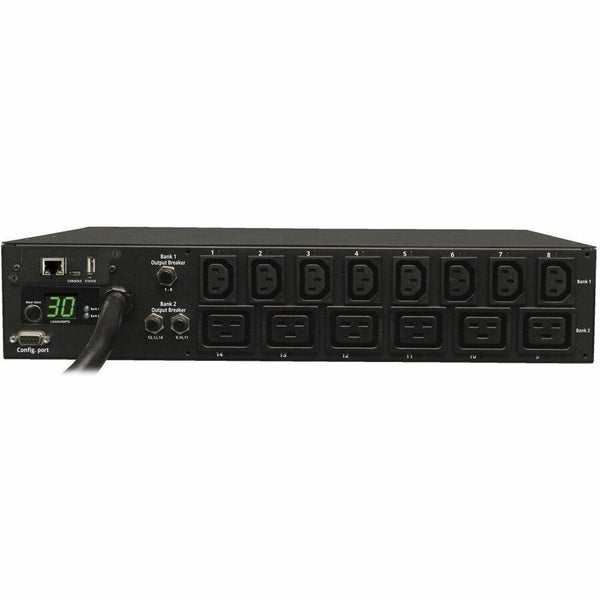

- 14 switched outlets (8 C13, 6 C19) with cord retention brackets
- NEMA L6-30P input with attached 15 ft. / 4.5m line cord
- Reports voltage, frequency & load level via ethernet interface
- Visual current meter, Reversible housing
- Built-in Java-free LX Platform interface for 24/7 remote access
- 5.8kW 208/240V Switched 30A PDU, 2U horizontal rackmount format
5 in stock
Regular price
$1,234.81
Sale price
$1,531
On Sale
Shipping calculated at checkout
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
- Temperature, humidity and contact closure monitoring options
- TAA Compliant
- 14 switched outlets (8 C13, 6 C19) with cord retention brackets
- NEMA L6-30P input with attached 15 ft. / 4.5m line cord
- Reports voltage, frequency & load level via ethernet interface
- Visual current meter, Reversible housing
- Built-in Java-free LX Platform interface for 24/7 remote access
- 5.8kW 208/240V Switched 30A PDU, 2U horizontal rackmount format
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Input Voltage:
230 V AC
Input Voltage Range:
208 V AC - 240 V AC
Limited Warranty:
2 Year
Management:
Protocols:
- HTTP
- HTTPS
- PowerAlert Network Management System
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- FTP
- DHCP
- BOOTP
- NTP
Manufacturer:
Eaton Corporation
Manufacturer Website Address:
http://www.eaton.com
Mount Type:
Rack-mountable
Output Voltage:
208 V AC,240 V AC

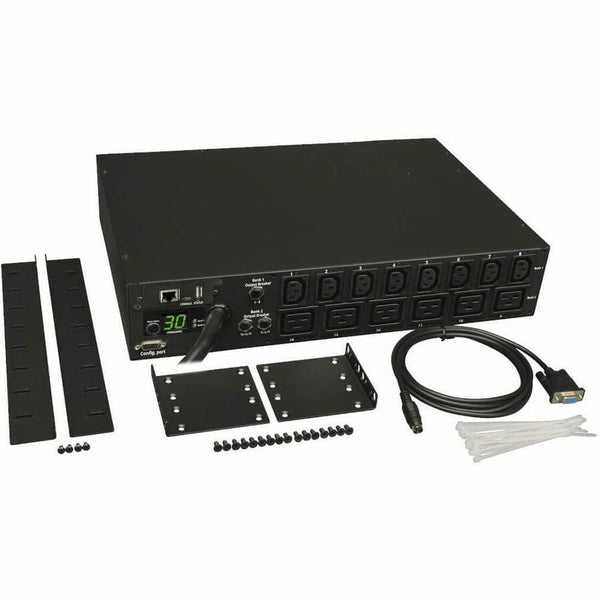

Package Contents:
- PDUMH30HV19NET PDU Switched 208V - 240V 30A 14 Outlet
- Installable 2U Mounting Brackets
PDU Type:
Switched
Plug/Connector Type:
NEMA L6-30P
Product Model:
PDUMH30HV19NET
Product Type:
PDU
Rack Height:
2U
Receptacle Detail:
14
TAA Compliant:
Yes
