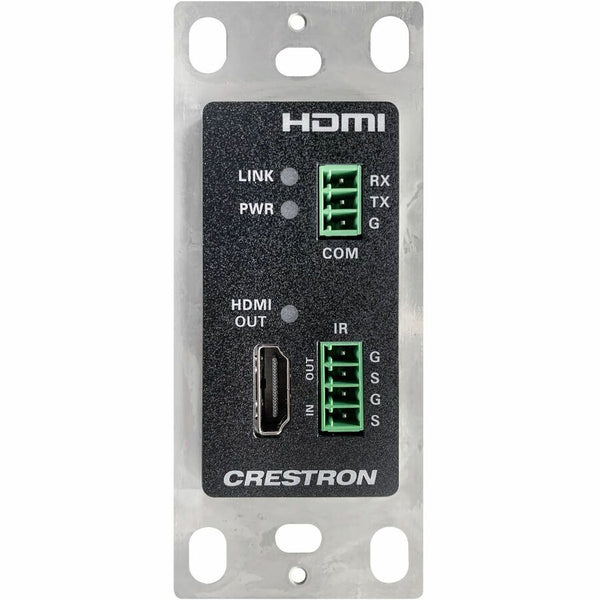

Crestron DM Essentials 4K60 4:4:4 Receiver for HDMI, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, Black

The HD-RXC-4KZ-101-1G is a DM® Essentials 4K60 4:4:4 wall plate receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (Crestron DM-CBL-8GorDM-CBL-ULTRA sold separately) is needed to connect the HD-RXC-4KZ-101-1G to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

The HD-RXC-4KZ-101-1G is available in black (model HD-RXC-4KZ-101-1G-B).

Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher

The DM Essentials input port of the HD-RXC-4KZ-101-1G must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are theHD-TXC-4KZ-101andHD-TXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402, andHD-PS401.

The HD-RXC-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-RXC-4KZ-101-1G. In addition, control system programming and .AV Framework™ software support of the HD-RXC-4KZ-101-1G is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-RXC-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

One-Gang Wall Plate Design

The HD-RXC-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-RXC-4KZ-101-1G can receive power from the remote DM Essentials transmitter (surface mountable only) or DMPS Essentials switcher.

Key Features

• Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher
• Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
• DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Compliance with HDCP 2.3

• Video Extender Receiver is a reliable audio/video transmission extending solution
• 1080p supported video mode for optimal viewing brilliance and efficiency
• 4096 x 2160 maximum video resolution for a vivid, crystal clear display with added productivity
• HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
• Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
• The HD-RXC-4KZ-101-1G-B video extender receiver provides plenty of freedom with wired connectivity
• 229.66 ft maximum operating distance for reliable coverage and maximum portability
• WUXGA graphics mode provides optimal video output with remarkable picture clarity
• Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
