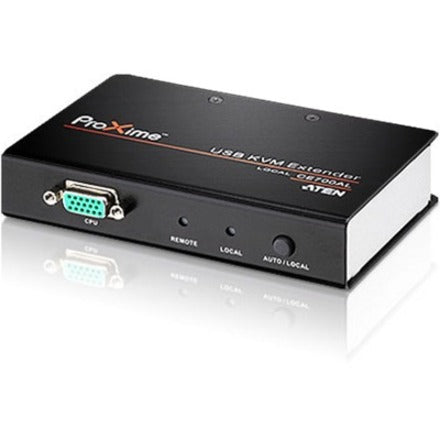

ATEN Proxime CE700A KVM Console/Extender
The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Automatic gain control - adjusts signal strength to compensate for distance
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
- USB overcurrent detection and prevention
- USB Keyboard and USB Mouse Ports
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)

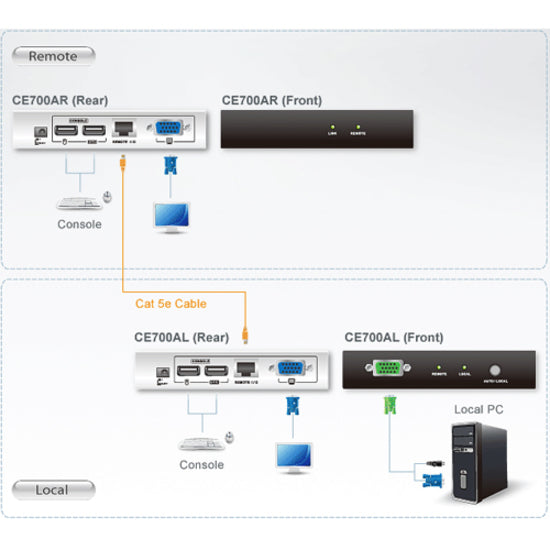

- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Cat 5e cable connects the Local and Remote Units - up to 150m apart
98 in stock
Shipping calculated at checkout
The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Automatic gain control - adjusts signal strength to compensate for distance
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
- USB overcurrent detection and prevention
- USB Keyboard and USB Mouse Ports
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Proxime CE700A KVM Console/Extender
- 2 x Power Adapters
- 1 x USB KVM Cable
- 2 x Grounding Wires
- 1 x Rack Mount Kit
- 1 x User Manual
- 1 x Quick Start Guide
