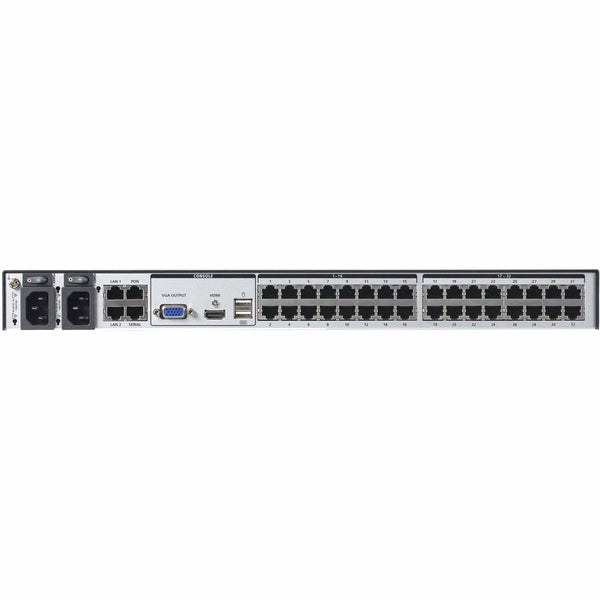

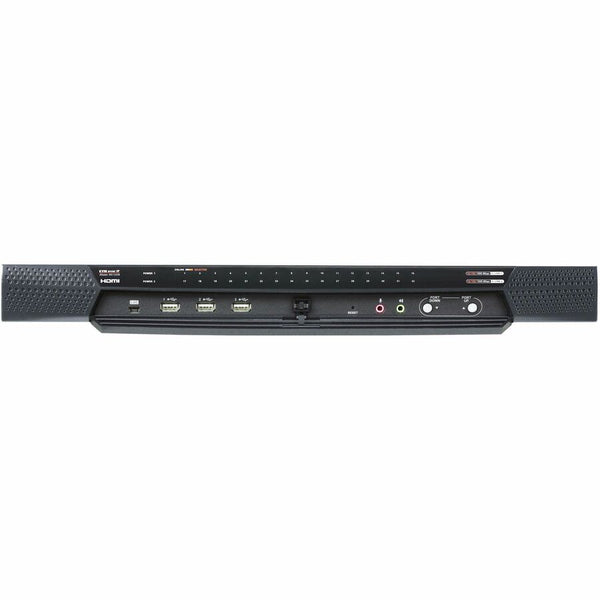

ATEN 1-Local/1-Remote Access 32-Port Multi-Interface Cat 5 KVM over IP Switch
The KN1132VB KVM over IP switch provides local console and remote over IP access for users to monitor and access their entiredata centerover a network. The KN series offers superior FHD video resolution up to 1920 x 1200,virtual mediatransmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability ofremote accessto all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app -PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad. Please visit thePadClientwebpage for more information.
This KVM switch provides out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. It enables IT administrators to manage network devices (e.g. server, storage, router, and switch) in server rooms via management networks that are separate from the main / production networks. If there's difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.
The KN series can be integrated into ATEN'sCC2000Centralized Management Software. TheCC2000delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipments with ease.
- Panel Array Mode™ - monitors all ports in a grid display (both local and remote screens)
- Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer
- Integrated with ATENCC2000Centralized Management Software andCCVSRVideo Session Recording Software
- Laptop USB Console (LUC) - a dedicated USB port directly connects to a laptop for easy console operation
Call for Availability
Tax included
Shipping calculated at checkout
The KN1132VB KVM over IP switch provides local console and remote over IP access for users to monitor and access their entiredata centerover a network. The KN series offers superior FHD video resolution up to 1920 x 1200,virtual mediatransmissions at double speed, FIPS 140-2 with level 1 security standards by using an embedded FIPS 140-2 certified OpenSSL cryptographic module. Equipped with dual on-board NICs, the KN series is built to ensure reliability and availability ofremote accessto all servers. The KN series can be remotely accessed via WinClient / JavaClient* at a console from a separated location for management and operation. ATEN also provides an iOS app -PadClient, whose intuitive interface makes it easy to connect to the KVM over IP switch and control computers direct from user's iPad. Please visit thePadClientwebpage for more information.
This KVM switch provides out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. It enables IT administrators to manage network devices (e.g. server, storage, router, and switch) in server rooms via management networks that are separate from the main / production networks. If there's difficulty in accessing the network devices through the production network, the administrators can still access them via the KVM switch. The KVM switch offers several out-of-band access methods, such as a direct console connection from a local computer, a USB console connection from a laptop, a PSTN connection via modem, or a dedicated management network connection via the Ethernet (LAN) port.
The KN series can be integrated into ATEN'sCC2000Centralized Management Software. TheCC2000delivers a better user experience and advanced usability. By utilizing consolidated data, task-based navigation, and simplified menus, administrators can access, configure, and manage all of the IT equipments with ease.
- Panel Array Mode™ - monitors all ports in a grid display (both local and remote screens)
- Supports web-friendly KVM-over-IP access with HTML5 WebClient viewer
- Integrated with ATENCC2000Centralized Management Software andCCVSRVideo Session Recording Software
- Laptop USB Console (LUC) - a dedicated USB port directly connects to a laptop for easy console operation
ATEN
LCD Console
- CL3100
- CL3700
- CL3800
- CL1000
- CL6700
- CL6700
Cat 5 KVM Switches
- KH1532A
- KH1508A
- KH1516A
KVM over IP Switches
- KA8270
- KA8278
- KA8280
- KA8288
Management Software / Control Center
- CC2000 4.0
- CCVSR
Rack KVM Switches
- CS1308
- CS1316
- 1x KVM over IP Switch
- 2x power cords
- 1x mounting kit
- 2x Lok-U-Plugs
- 1x Lok-U-Plug installation tool
- 1x foot pad set (4 pcs.)
- 1x user instructions
