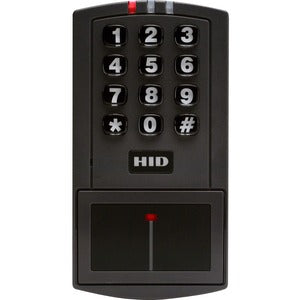

HID EntryProx Reader
SKU: 4045CGNU0
STAND-ALONE, SINGLE-DOOR PROXIMITY READER
- Trouble-Free Keypad Input - Extra secure keypad enables PIN entry or programming.
- Remote Monitoring - Configurable to be used in conjunction with an on-line system.
- Faster Programming - Batch load up to 2,000 HID cards or keytags with a single keypad command sequence.
- Efficient Badge Administration - Block Delete allows deletion of cards/keytags by user location.
Compatible with all HID proximity cards and keytags, EntryProx™ provides single-door proximity access control and is ideal for unique applications. The reader, designed to be weather- and vandal-resistant, can be mounted indoors or outdoors up to 10 feet away from the control unit using the detachable antenna module. The versatile, attractive unit is easily modified to become an on-line reader by switching to Wiegand output mode, allowing it to connect to any OEM controller and provide card and PIN output.
The ADA-compliant 12-position keypad features large white-on-black numbers, enabling PIN entry or programming, with optional audio feedback and a raised dot on the 5 key. For extra security, EntryProx's keypad incorporates the "invalid PIN" lockout feature, preventing unauthorized trial-and-error PIN code entry.
The reader also features faster programming, enabling end-users to batch load up to 2,000 HID cards or keytags, in any format up to 37 bits, by entering a single keypad command sequence. A Block Delete feature allows for efficient badge administration by deleting a sequential range of cards/keytags from the EntryProx by user location.
Customers can select the HID EntryProx Reader with confidence because HID offers a lifetime product warranty and global technical support.
- Options - Various options are user programmable - not ordered by model. Accessories: Security Tool 04-0001-03
- Facility Code Processing Options (26-bit only) - Check Facility Code and Card ID; Check Facility Code only (accept any ID#)
- Card Programming - 26-bit format - batch enrollment; Other formats - present card to enroll
- Operation Strike Time: 1 - 99 seconds (Adjustable); Strike Mode: Access Timer or Toggle/Latch; Door Ajar Time: 10 - 990 Seconds (Adjustable)
- LEDs - Bi-Color (Red/Green), Amber, Infrared (use with Data Transfer Device (DTD) accessory)
- Relay Outputs - Strike Relay - Form C, switches up to 1A @ 30 VDC. Aux Relay - Form C, switches up to 1A @ 30 VDC
- Sounder - 4000Hz, defeatable
- Monitor Inputs - Door Position - N.O. dry contact. Request to Exit - N.O. dry contact
Call for Availability
Regular price
$671.32
Shipping calculated at checkout
STAND-ALONE, SINGLE-DOOR PROXIMITY READER
- Trouble-Free Keypad Input - Extra secure keypad enables PIN entry or programming.
- Remote Monitoring - Configurable to be used in conjunction with an on-line system.
- Faster Programming - Batch load up to 2,000 HID cards or keytags with a single keypad command sequence.
- Efficient Badge Administration - Block Delete allows deletion of cards/keytags by user location.
Compatible with all HID proximity cards and keytags, EntryProx™ provides single-door proximity access control and is ideal for unique applications. The reader, designed to be weather- and vandal-resistant, can be mounted indoors or outdoors up to 10 feet away from the control unit using the detachable antenna module. The versatile, attractive unit is easily modified to become an on-line reader by switching to Wiegand output mode, allowing it to connect to any OEM controller and provide card and PIN output.
The ADA-compliant 12-position keypad features large white-on-black numbers, enabling PIN entry or programming, with optional audio feedback and a raised dot on the 5 key. For extra security, EntryProx's keypad incorporates the "invalid PIN" lockout feature, preventing unauthorized trial-and-error PIN code entry.
The reader also features faster programming, enabling end-users to batch load up to 2,000 HID cards or keytags, in any format up to 37 bits, by entering a single keypad command sequence. A Block Delete feature allows for efficient badge administration by deleting a sequential range of cards/keytags from the EntryProx by user location.
Customers can select the HID EntryProx Reader with confidence because HID offers a lifetime product warranty and global technical support.
- Options - Various options are user programmable - not ordered by model. Accessories: Security Tool 04-0001-03
- Facility Code Processing Options (26-bit only) - Check Facility Code and Card ID; Check Facility Code only (accept any ID#)
- Card Programming - 26-bit format - batch enrollment; Other formats - present card to enroll
- Operation Strike Time: 1 - 99 seconds (Adjustable); Strike Mode: Access Timer or Toggle/Latch; Door Ajar Time: 10 - 990 Seconds (Adjustable)
- LEDs - Bi-Color (Red/Green), Amber, Infrared (use with Data Transfer Device (DTD) accessory)
- Relay Outputs - Strike Relay - Form C, switches up to 1A @ 30 VDC. Aux Relay - Form C, switches up to 1A @ 30 VDC
- Sounder - 4000Hz, defeatable
- Monitor Inputs - Door Position - N.O. dry contact. Request to Exit - N.O. dry contact
Environmentally Friendly:
Yes
Limited Warranty:
Lifetime
Manufacturer:
HID Global Corporation
Manufacturer Website Address:
http://www.hidglobal.com
Maximum Operating Range:
3"
Product Color:
Gray
Product Model:
4045CGNU0
Product Type:
Smart Card Reader
