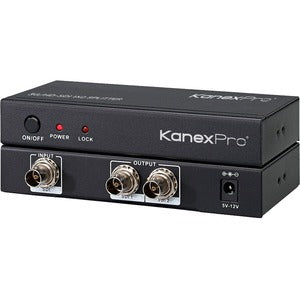

KanexPro 3G /HD-SDI 1x2 Distribution Amplifier
The KanexPro 1x2 SDI unit can split, re-clock, and amplify SDI source video to 2 SDI outputs providing full HD 1080p resolution to up to 2 displays simultaneously for faster broadcasting and production.
The splitter accepts one SDI input from the SD-SDI, HD-SDI, or 3G-SDI video source such as VTR, SDI recorders and other sources. After replicating the signal perfectly, it automatically deploys cable equalization to simultaneously transmit SDI signals as far as 1000 feet (300 m) over 8 x BNC coax runs to 2 monitors. For HD-SDI video, the splitter goes up to 500 feet (150 m) and for 3G-SDI video, up to 328 feet (100 m).
Applications:
Ideally used with SDI based surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, or other A/V applications where you need to split and extend from a camera or other device equipped with 3G/HD/SD-SDI outputs to dual SDI-compliant displays or video processors.
- 3G: 1080p 50/60Hz.
- HD: 1080i 50 & 60 Hz.
- HD: 1080p 24, 25,30, 50 & 60 Hz.
- HD: 720p 24, 25,30,50 & 60 Hz.
- SDI 525i, 625i
- Supports embedded audio
- Supports multiple video resolutions:
- Built-in equalizer for I/O drive at long distances up to 300 meters
- Outputs video on 2 separate buffered and re-clocked BNC ports.
- Get the highest quality 3G SDI distribution to 2 SDI monitors
Call for Availability
Shipping calculated at checkout
The KanexPro 1x2 SDI unit can split, re-clock, and amplify SDI source video to 2 SDI outputs providing full HD 1080p resolution to up to 2 displays simultaneously for faster broadcasting and production.
The splitter accepts one SDI input from the SD-SDI, HD-SDI, or 3G-SDI video source such as VTR, SDI recorders and other sources. After replicating the signal perfectly, it automatically deploys cable equalization to simultaneously transmit SDI signals as far as 1000 feet (300 m) over 8 x BNC coax runs to 2 monitors. For HD-SDI video, the splitter goes up to 500 feet (150 m) and for 3G-SDI video, up to 328 feet (100 m).
Applications:
Ideally used with SDI based surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, or other A/V applications where you need to split and extend from a camera or other device equipped with 3G/HD/SD-SDI outputs to dual SDI-compliant displays or video processors.
- 3G: 1080p 50/60Hz.
- HD: 1080i 50 & 60 Hz.
- HD: 1080p 24, 25,30, 50 & 60 Hz.
- HD: 720p 24, 25,30,50 & 60 Hz.
- SDI 525i, 625i
- Supports embedded audio
- Supports multiple video resolutions:
- Built-in equalizer for I/O drive at long distances up to 300 meters
- Outputs video on 2 separate buffered and re-clocked BNC ports.
- Get the highest quality 3G SDI distribution to 2 SDI monitors
