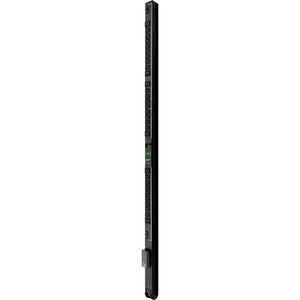

ARCHIVED Server Technology PRO2 STV-4501A 30-Outlet PDU
SKU: STV-4501A
The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- IEC 60320 C20 plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for better reliance and maximum dependability
- 208 V AC output voltage for maximum dependability and added productivity
Call for Availability
Regular price
$2,075
Shipping calculated at checkout
The Server Technology® PRO2 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- IEC 60320 C20 plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for better reliance and maximum dependability
- 208 V AC output voltage for maximum dependability and added productivity
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Input Current:
20 A
Input Voltage:
230 V AC
Limited Warranty:
2 Year
Management:
- HTTP/HTTPS
- TLSv1
- SSHv2
- Telnet
- SNMPv2c and v3 (GET, SET, Traps)
- IPv4 and IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
Manufacturer:
Legrand Group
Manufacturer Website Address:
http://www.servertech.com
Mount Type:
Rack-mountable
Network (RJ-45):
Yes
Output Voltage:
208 V AC
Package Contents:
- PRO2 STV-4501A 30-Outlet PDU
- 1 x Probe
- Mounting Brackets (Buttons)
Plug/Connector Type:
IEC 60320 C20
Product Model:
STV-4501A
Product Series:
PRO2
Product Type:
PDU
Protection Type:
Circuit Protection
Receptacle Detail:
24 x IEC 60320 C13,6 x IEC 60320 C19
Receptacle Type:
IEC 60320 C13,IEC 60320 C19
